Campervan Folding Couch & Bed Plans (Right Side)

Regular price $30.00 NZD
Shipping calculated at checkout.

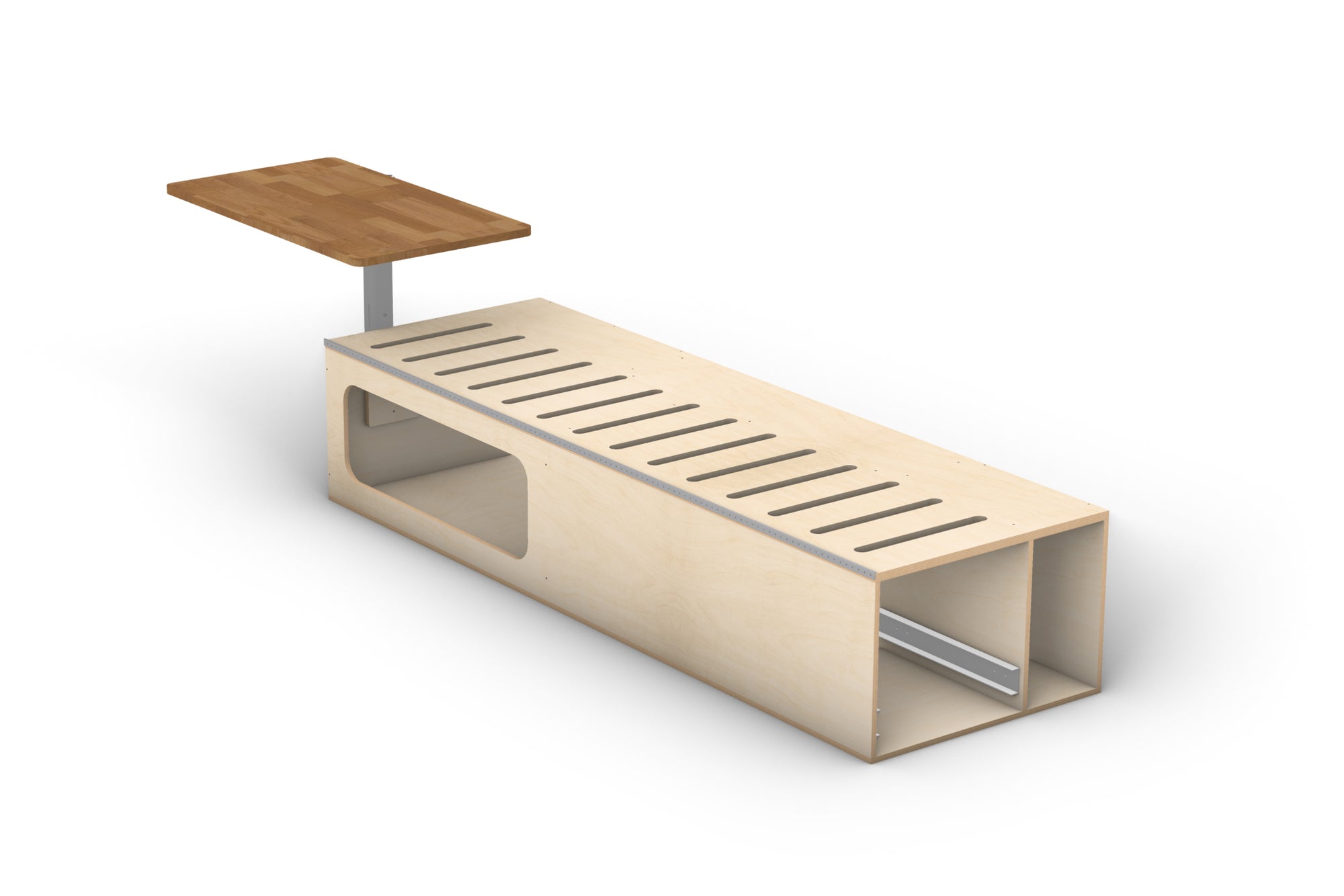

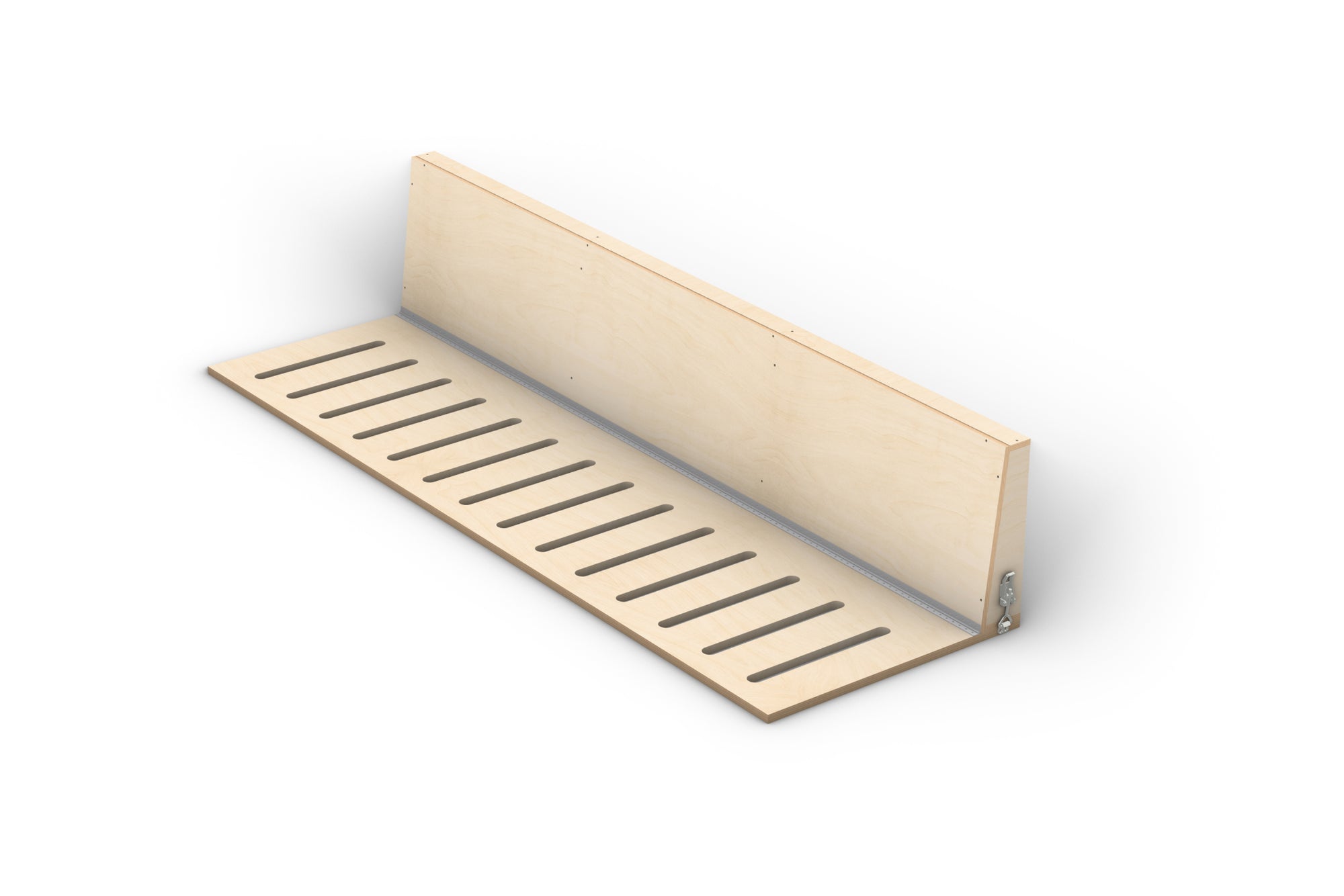

This detailed PDF guide walks you through building a versatile folding camper couch for your van, complete with step-by-step instructions, diagrams, a full cutlist, and both CNC and manual build options.

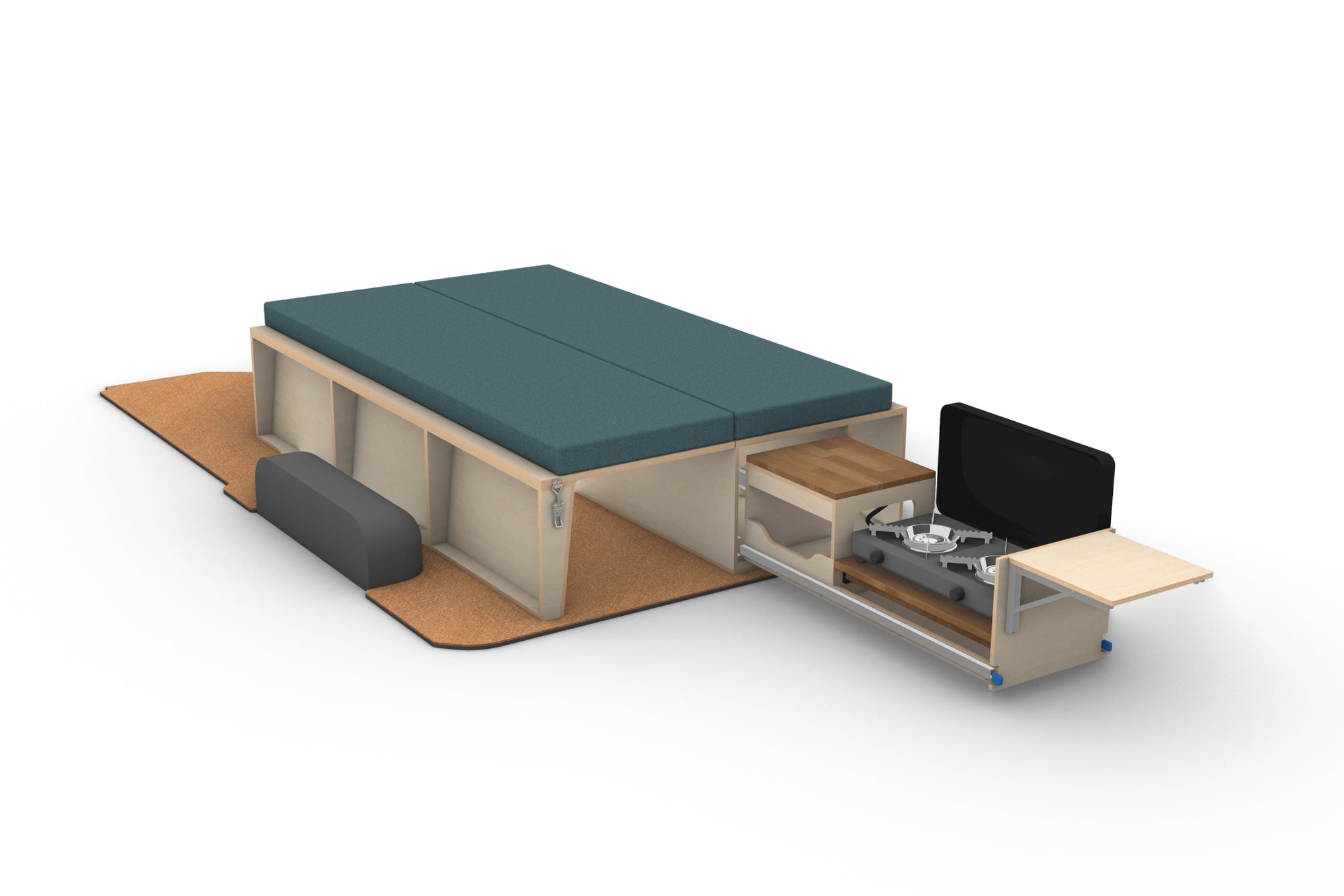

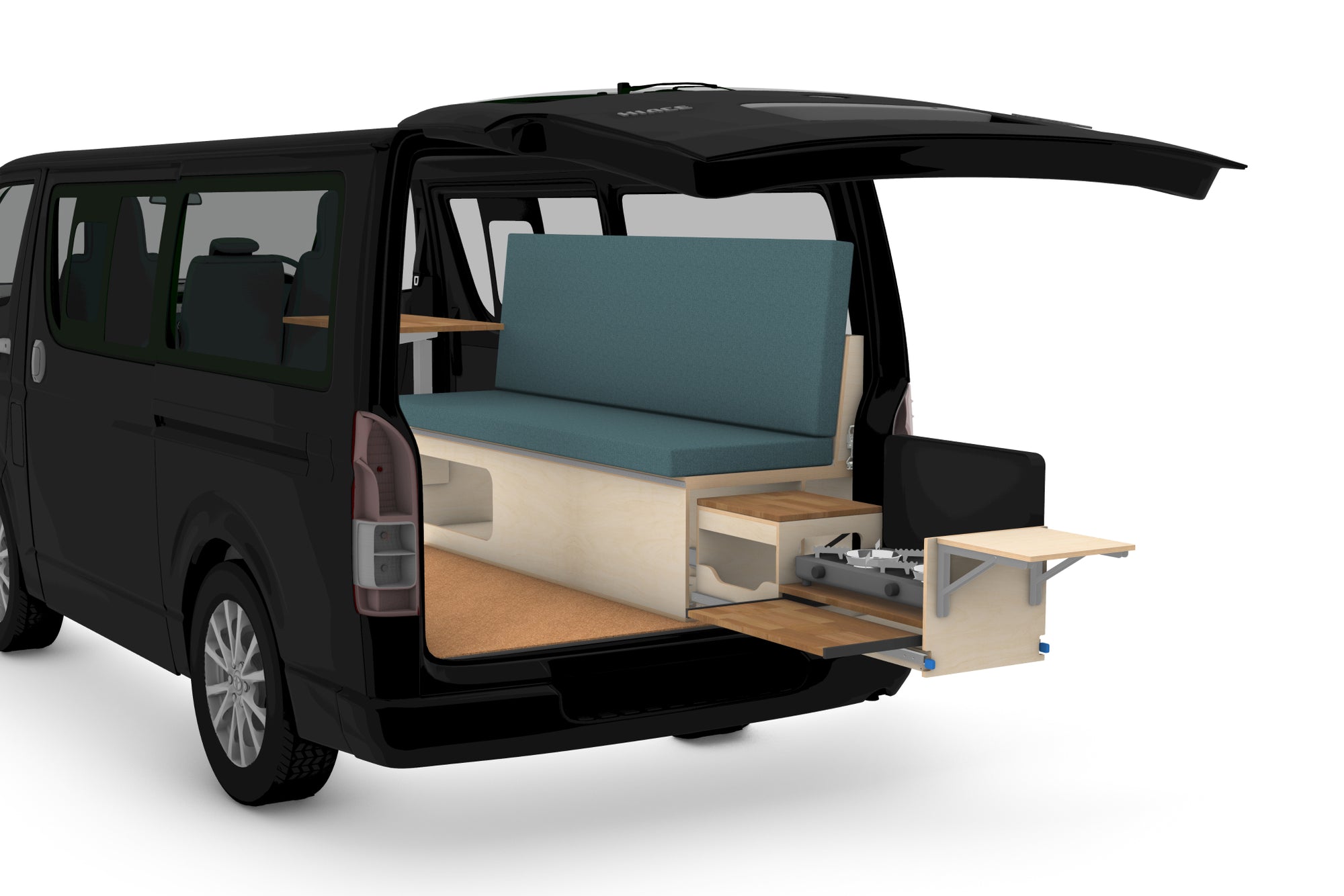

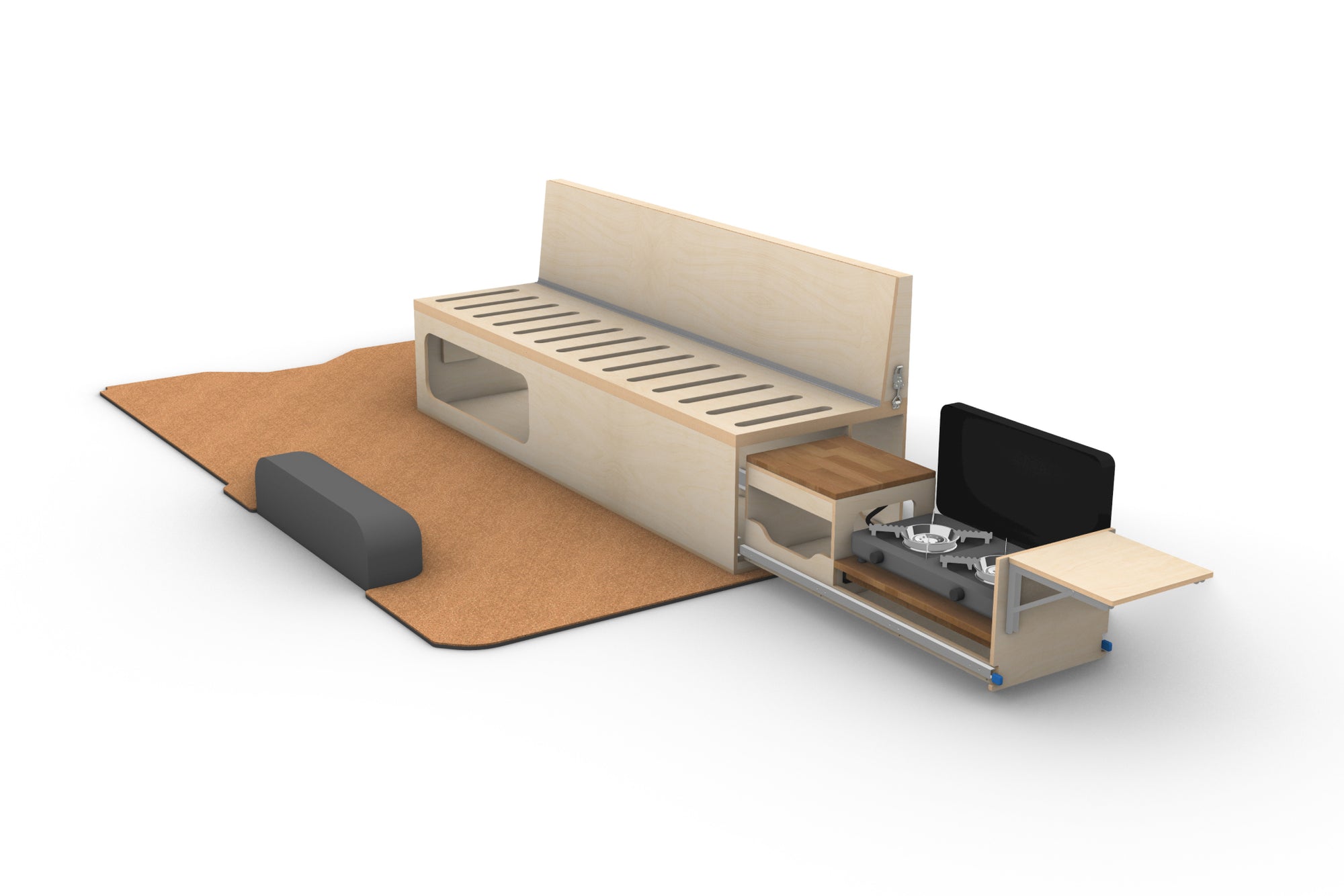

Designed to fit a variety of van layouts, it features smart storage solutions including a pull-out cooking drawer, fold-up end table, and front cubby. The 32-page plan includes labeled DXF files, dimensioned drawings, and a full hardware overview.

Unsure if this plan is right for you? Get in touch.

  • Skill Level:
    • Intermediate
  • Units:

    • Millimetres (mm)
  • Pages:

    32-Page PDF

What's Included:
  • Clear and concise assembly drawings
  • Dimensioned parts for manual cutting
  • Labelled DXF files for CNC machining
  • Dimensioned drawings
  • Overview of Hardware required
  • 32 pages in PDF in total
  • CNC overview with labels

What's Required:
  • 2 sheets of 12mm Birch Plywood required
  • 1 sheet of 18mm Birch Plywood required
  • Basic hand tools such as drill and driver for assembling
  • Jig saw and circular saw required if manual cutting

Additional Information:
  • All plans are in English and the units are in mm (metric)

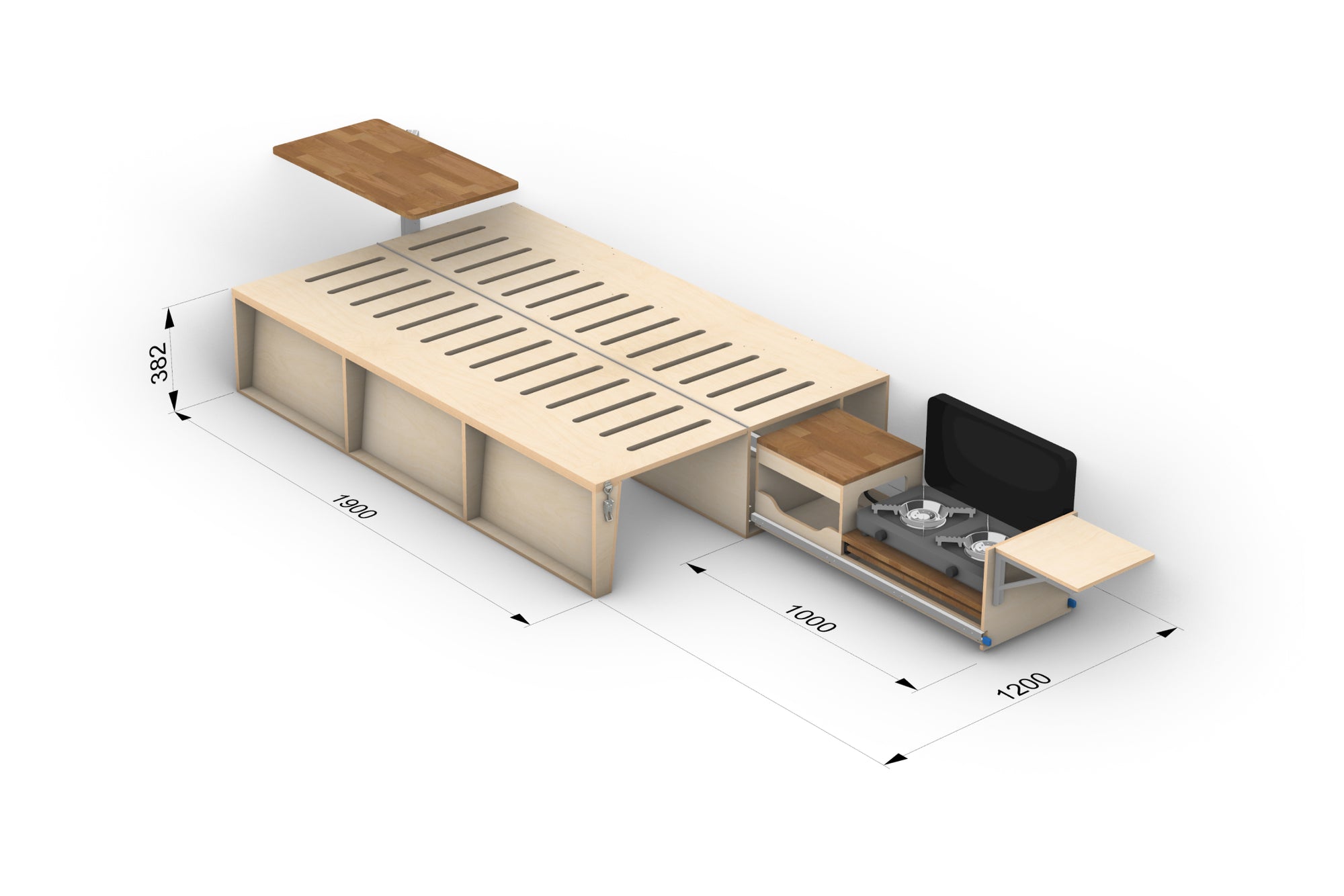

  • Overall footprint of unit (when open) = 1200mm wide x 1900mm long x 382mm high
  • Overall footprint of unit (when closed) = 600mm wide x 1900mm long x 382mm high
  • Drawer runner extension = 1000mm
  • Construction = 12mm & 18mm Birch Plywood
  • Plywood sheet size = 1220mm x 2440mm
  • It is recommended that the plywood is sanded and sealed before installation
  • Unit will need to be secured to van
  • CAD model is in STEP. format however I can export most required formats upon request
  • This van fit out is for intermediate builders.

Important:

This is a digital download. The product shown is a rendering not a physical product.
