DIY Mercedes Sprinter Long Wheelbase 170 Camper Conversion Plans (Right-Hand Drive)

Regular price $175.00 NZD
Shipping calculated at checkout.

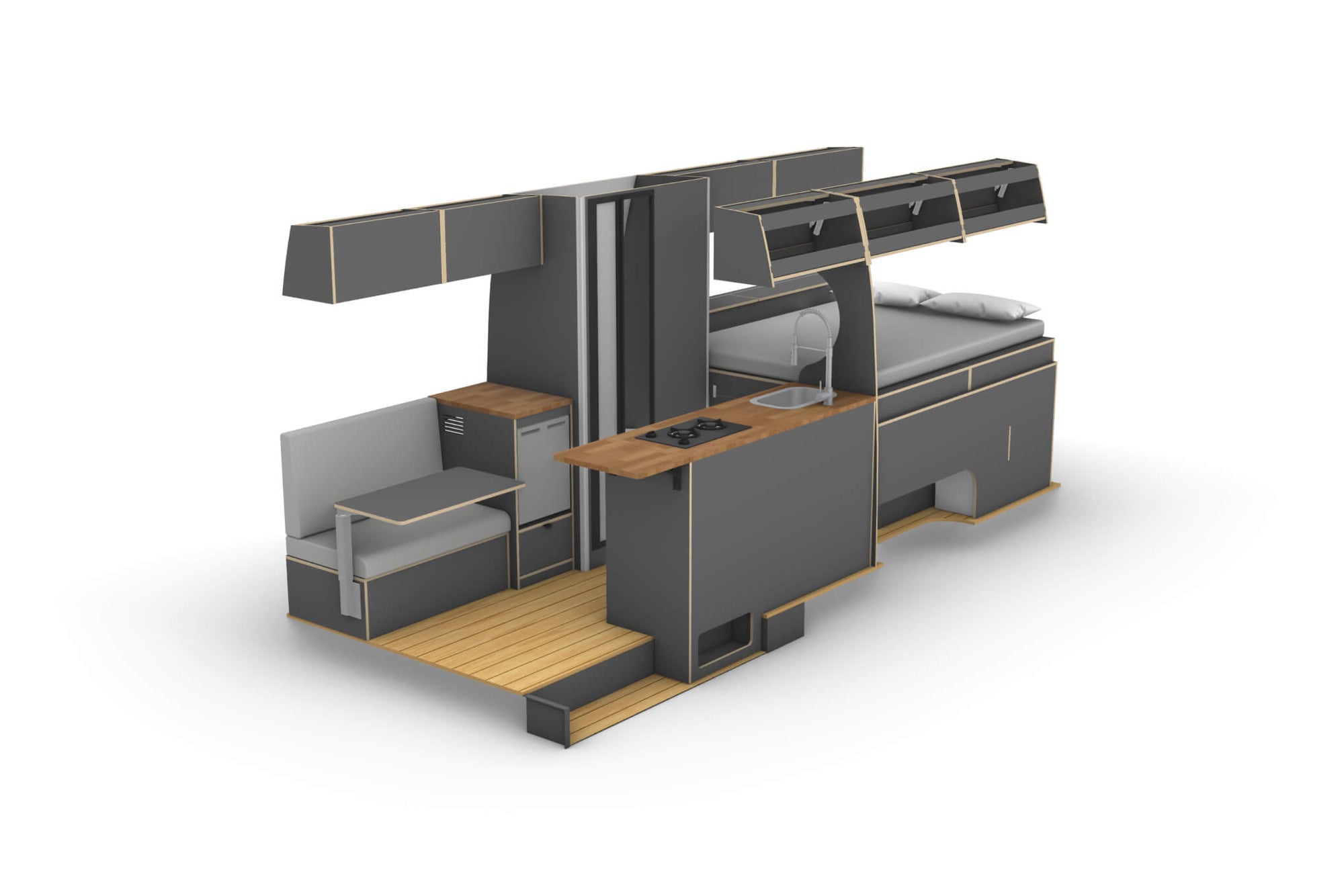

Turn your Mercedes Long Wheelbase 170 (2006 - 2017) Right-Hand Drive into a ready‑to‑go camper van with ease. Our DIY conversion plans provide everything you need to design, build and enjoy your custom van build.

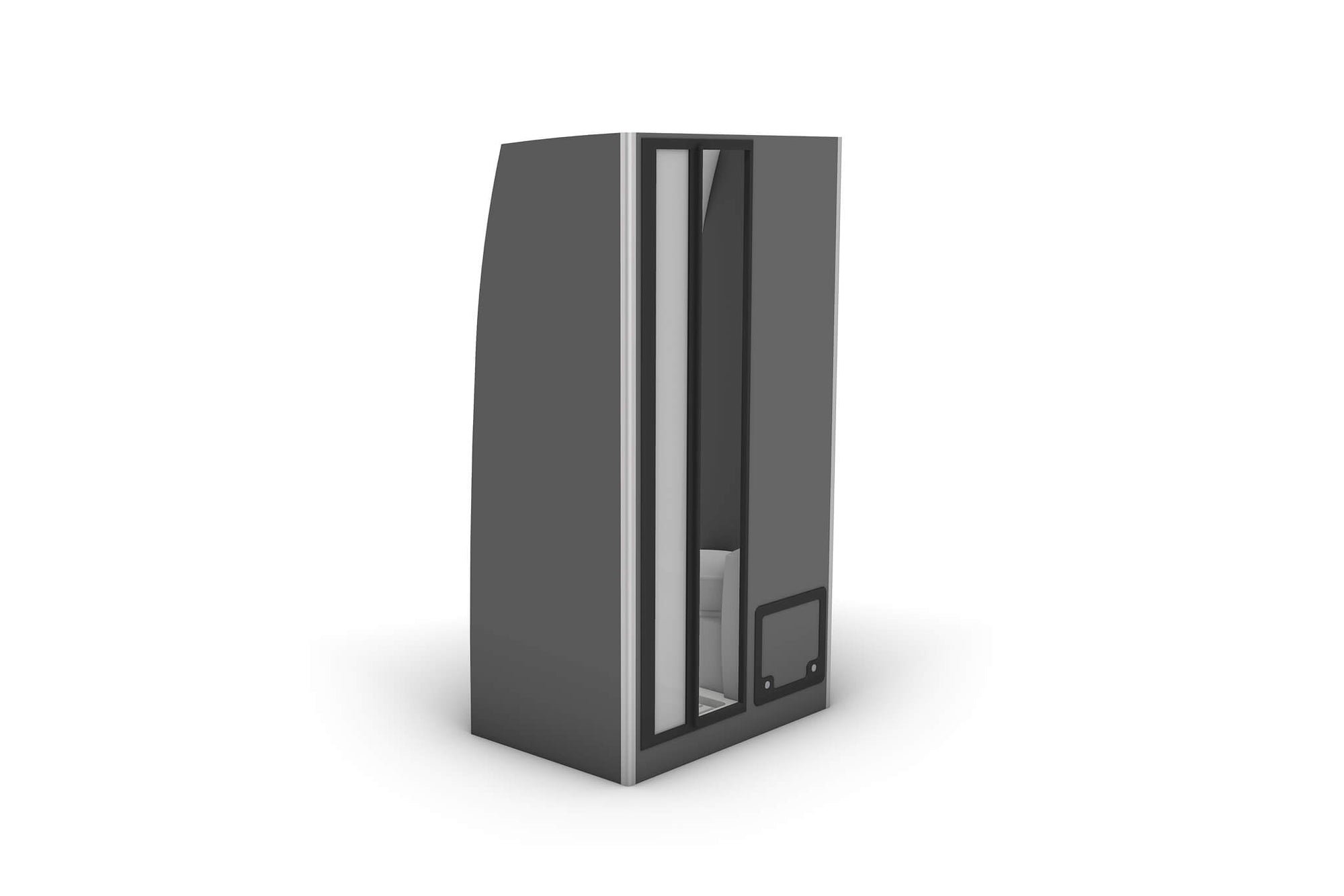

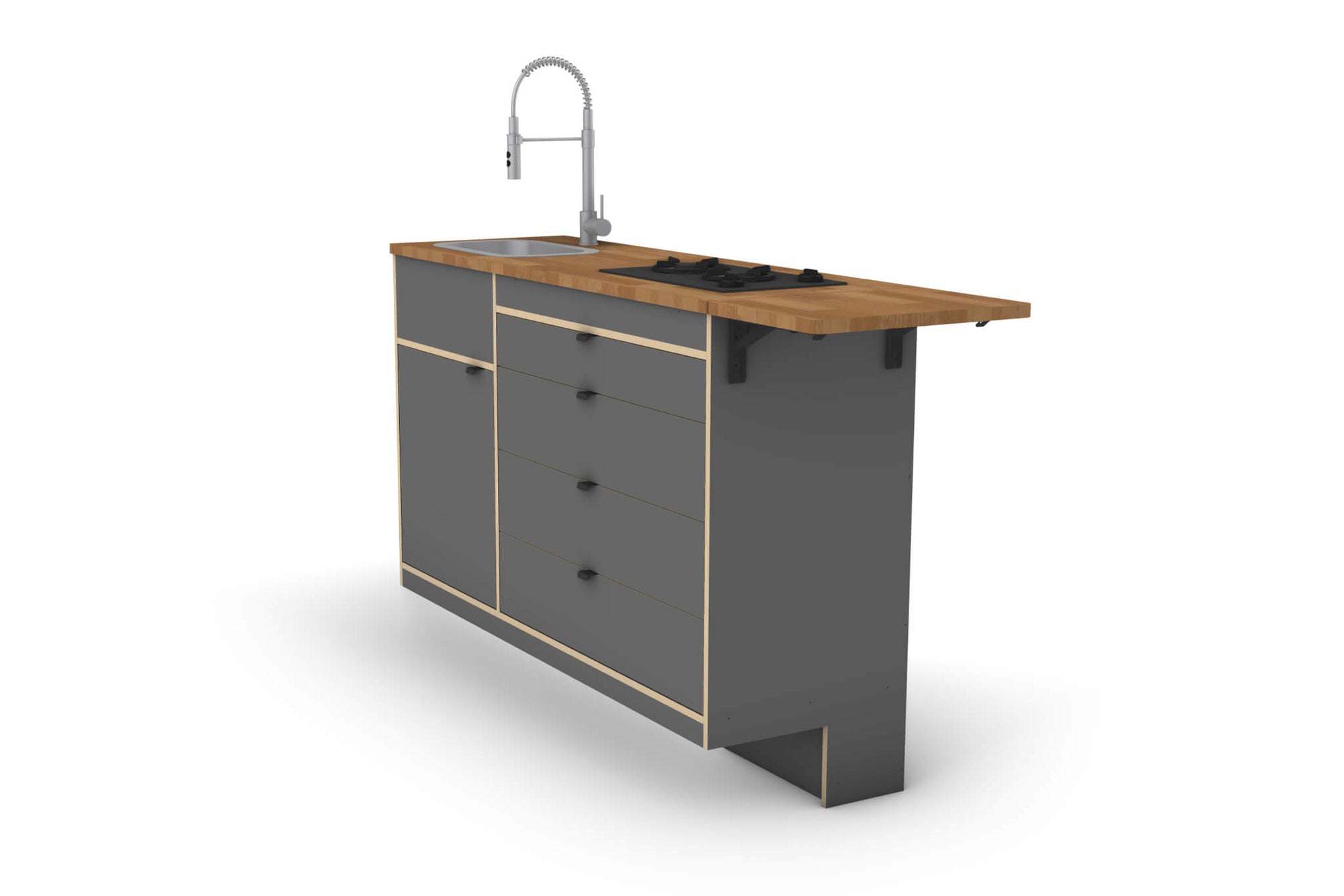

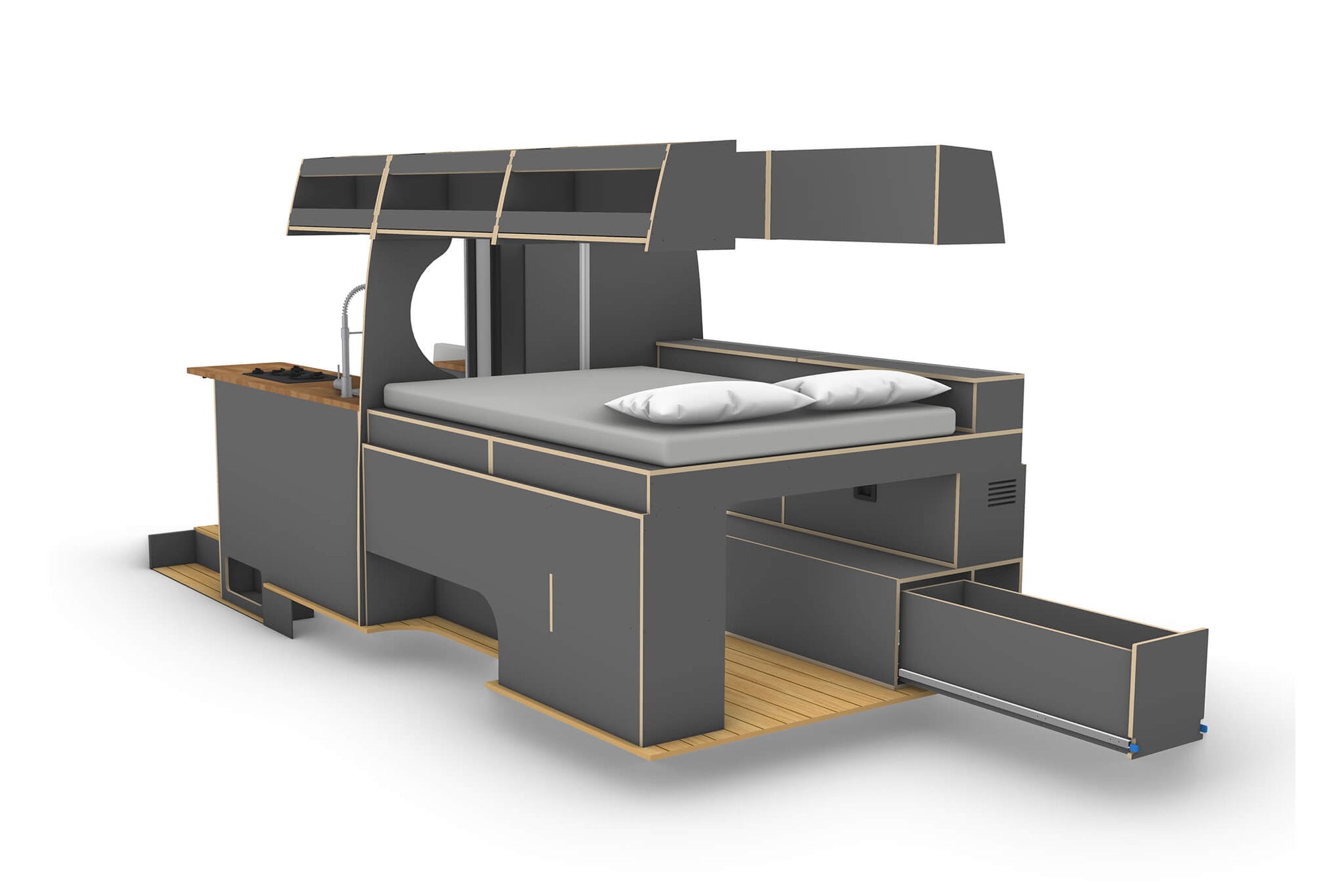

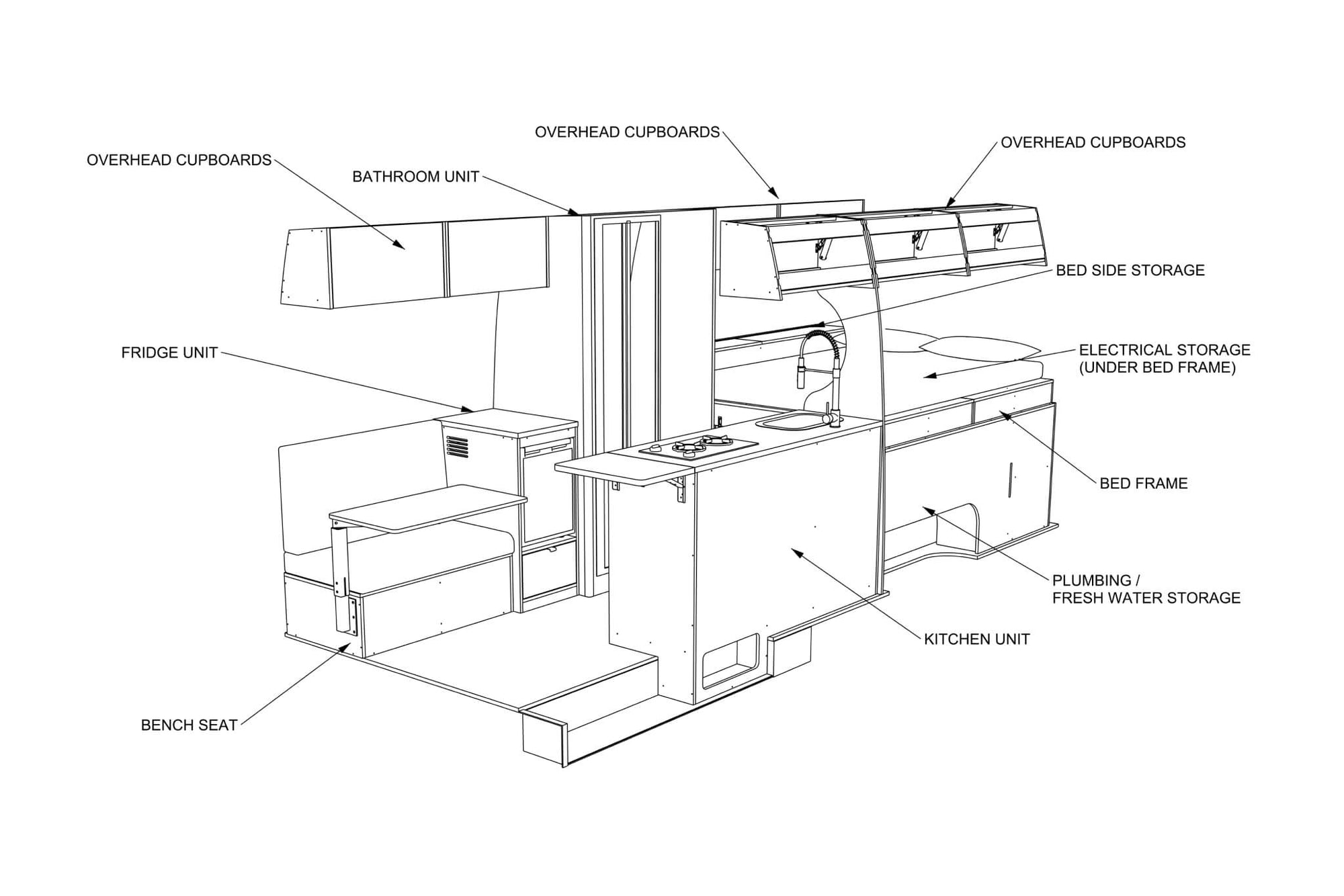

Perfect for intermediate to experienced builders, our detailed layout helps you create a fully functional Sprinter van conversion with smart storage, an integrated kitchen, and bathroom units.

Your download includes CNC-ready DXF files, a 3D CAD model, assembly drawings, plus a full hardware and materials list.

Start your DIY Sprinter van conversion today!

Looking for the Sprinter Medium Wheelbase plans?

  • Skill Level:
    • Intermediate
  • Pages:

    52-Page PDF

What's Included:
  • Clear and concise assembly drawings
  • Labelled DXF files for CNC machining

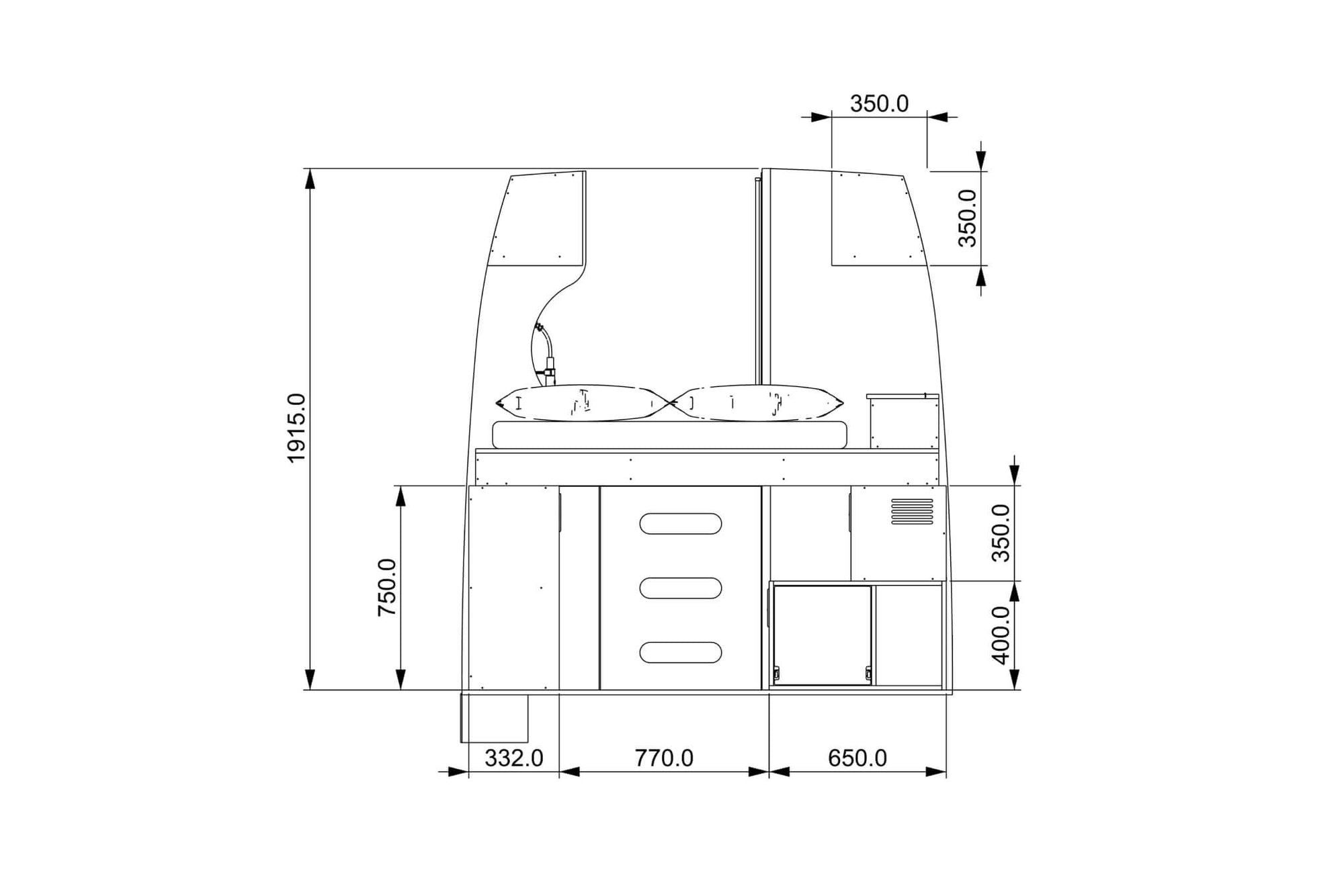

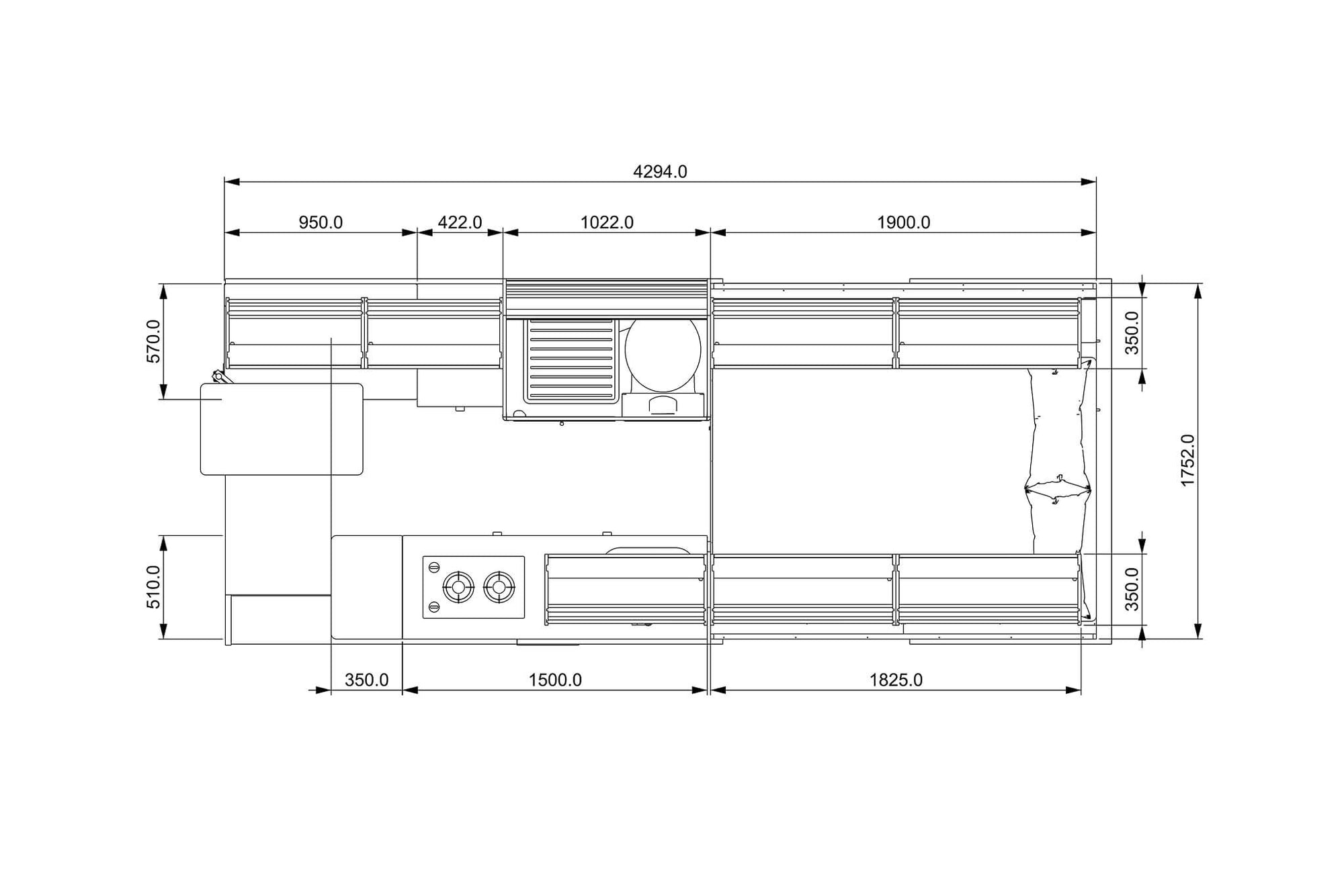

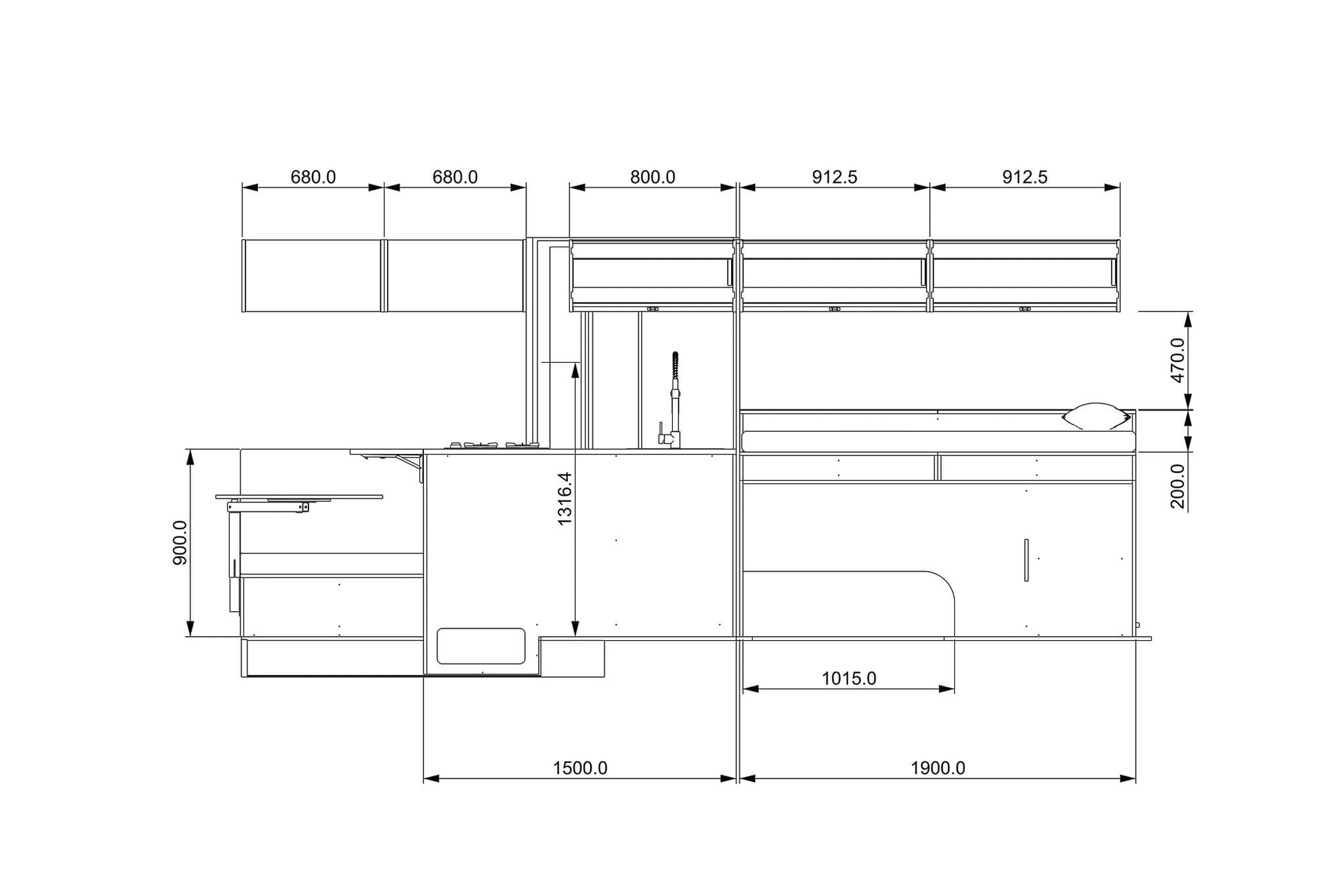

  • Dimensioned drawings
  • 3D CAD Model (.STEP Format)
  • Overview of Hardware, Materials and Appliances required (Spreadsheet)
  • 52 pages in PDF in total

What's Required:
  • Access to a CNC Router
  • Constructed from 20 sheets of 16mm HPL Plywood
  • Blum hardware integrated throughout
  • Basic hand tools such as drill and driver for assembling

Additional Information:
  • All plans are presented in English with measurements in millimeters (metric).
  • Designed to fit Sprinter LWB 170 (2006 - 2017)
  • The CAD model is available in STEP format.
  • Due to the varying nature of van cladding, the exact fit of overhead cupboards and bathroom sides cannot be guaranteed.
  • The "Shoebox" built into the kitchen unit is influenced by floor thickness so please take this into consideration. Design currently allows for 180mm step height.
  • I recommend printing the provided 1:1 A4 template in the package to verify the profile against your vehicle.
  • Plans do not include electrical or plumbing diagrams throughout the vehicle however allowance has been made within the design to integrate these items.
  • It is advisable to seal the edges of plywood before installation.
  • Overview of materials, hardware, and appliances included
  • Ensure units are securely fastened to the van.
  • This van fit out is for intermediate to experienced builders.
  • Designed for right hand drive version (check out my other listing for left hand drive)

Please get in touch if you have any questions before committing to purchasing. I can send you a basic version of the plans along with a template to cross-check against your vehicle if needed.

Important:

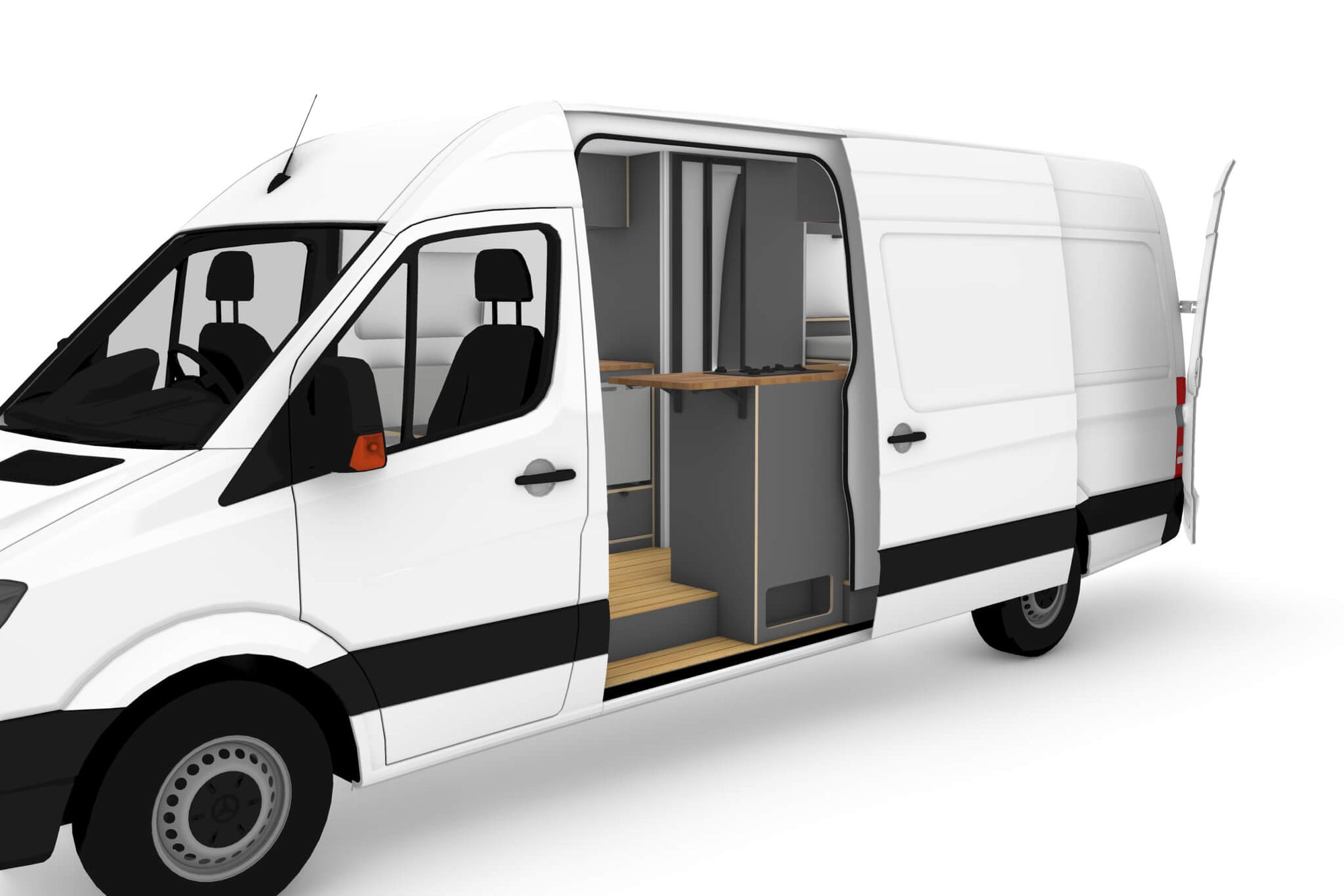

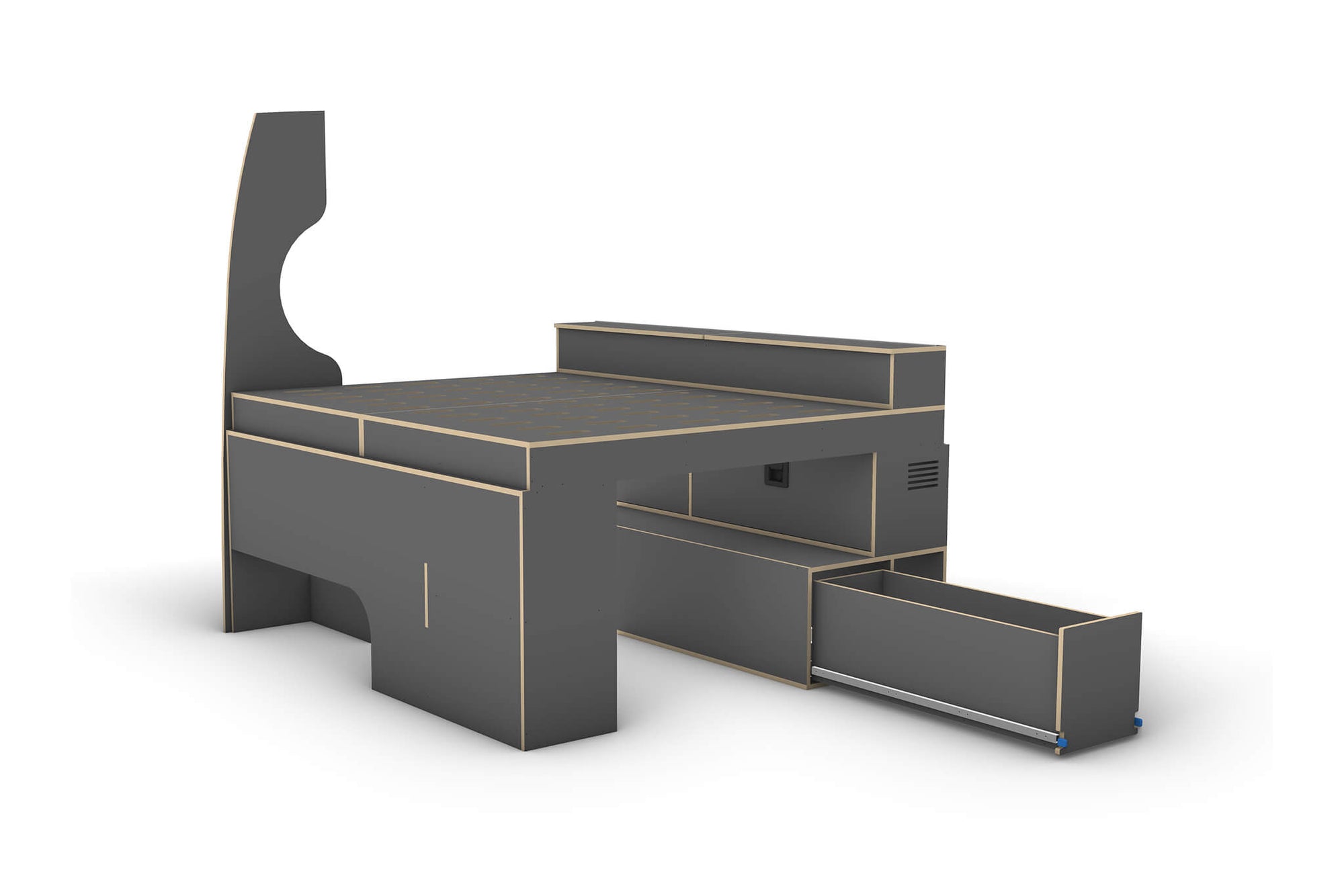

This is a digital download. The product shown is a rendering not a physical product.

All digital plans provided by CamMade Studio are intended for personal use only.

Reviews

  • ★★★★★

    Amazing plans and so easy to read and understand. I have sent the CNC plans off and will look forward to building it soon. Thanks!

    Matthew

  • ★★★★★

    Thanks a lot for these files. Saved me a shit-tonne of work!

    Marcel

  • ★★★★★

    Worked out great and went together so easily! Also great replies and assistance with questions I had.

    Daniel

  • ★★★★★

    Good quality and very helpful for our new camper. Cam is also very helpful and answers very fast.

    Simon

  • ★★★★★

    The quality of the project is very good, well planned and prepared for CNC cutting.

    Władysław

FAQs

Plans are provided in PDF format, ensuring compatibility with most devices and ease of printing. If you require a different format, please contact me to discuss your needs.

I am open to sharing my plans for commercial use, I only ask two things:

  1. That you get in touch and let me know that you plan to use them commercially — I'd love to know more about you, your business and where you are.
  2. You purchase the plans via the online store for each unit that you sell.

Looking forward to hearing from you!

While I don't offer step-by-step support, I'm happy to answer specific questions you may have during your build. Feel free to reach out with your queries.

These plans are best suited for intermediate builders or those with some prior DIY, trade, or construction experience. They’re detailed and thoughtfully laid out, but they do assume a basic understanding of tools, materials, and build processes.

If you're just starting out, you're still welcome to purchase — just know that you may need to do a bit of extra research or enlist help from someone with experience.

All plans are in millimetres (mm). Some plans have also been converted into inches too. The units of measurement a plan comes are stated on each plan. Get in touch if there's a plan you're after not in your preferred units.
