Modular Storage Box System Plans

Regular price $25.00 NZD
Shipping calculated at checkout.

This modular storage system PDF guide includes step-by-step instructions, detailed diagrams, and CNC-ready files, making it easy for DIYers of all levels to build.

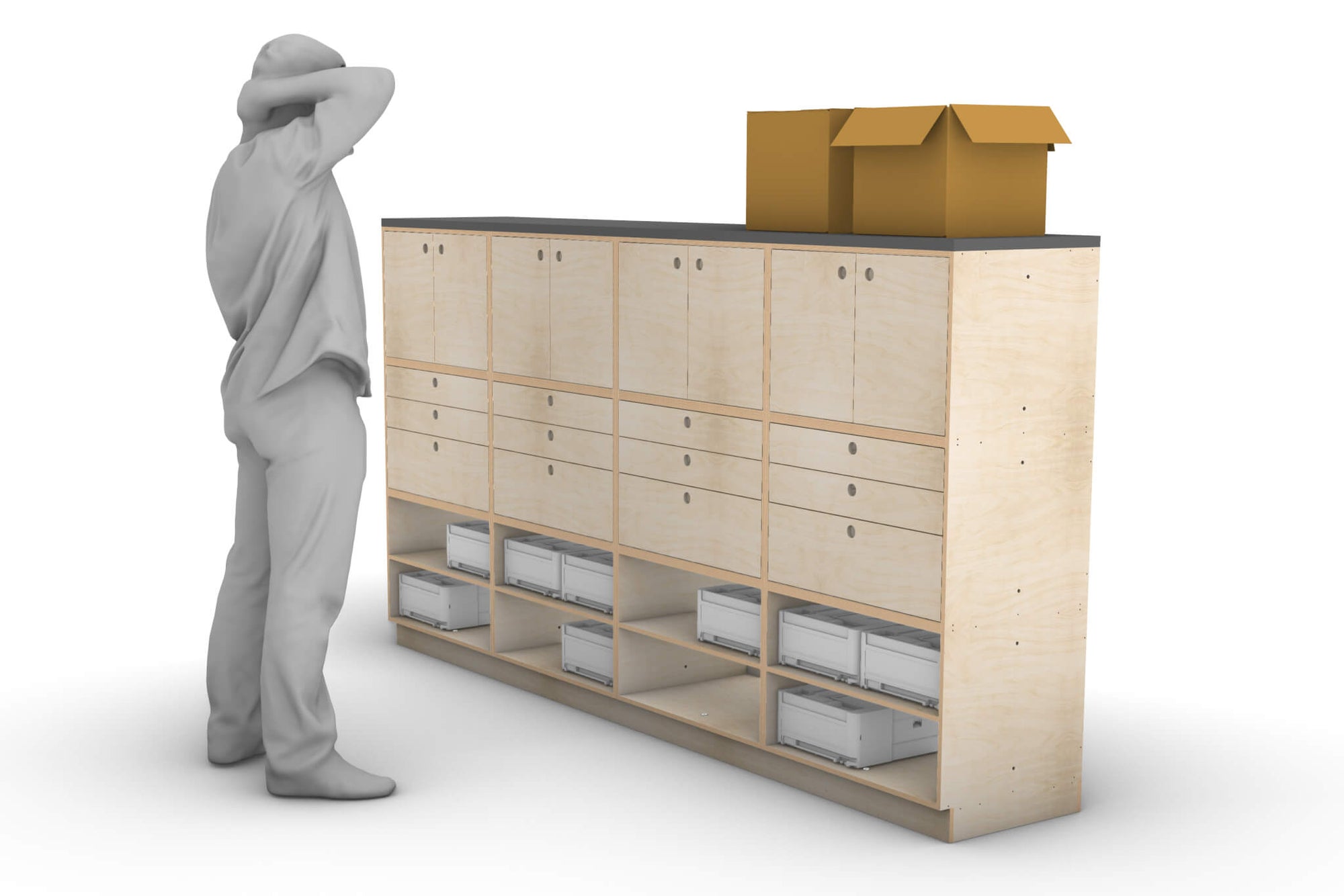

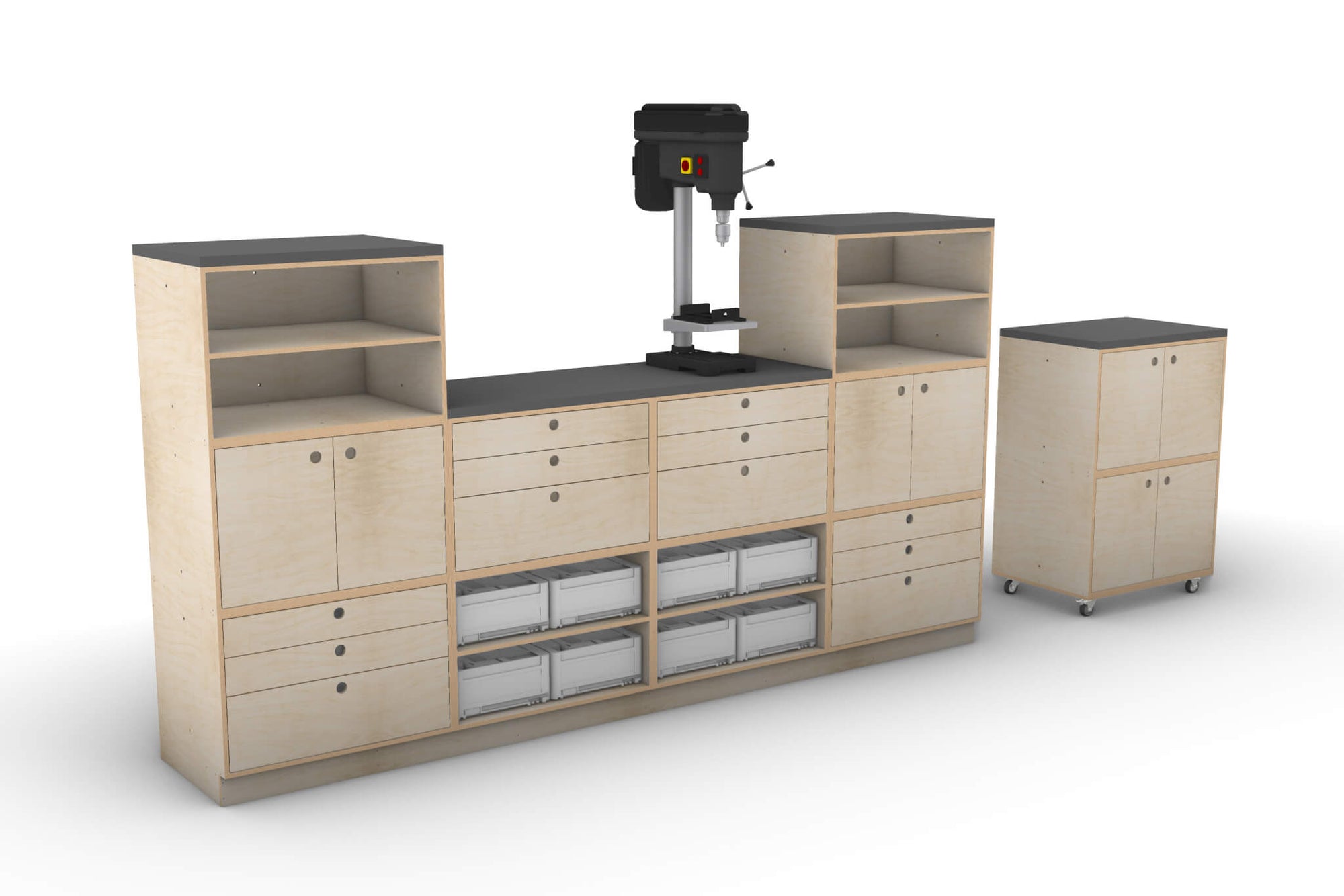

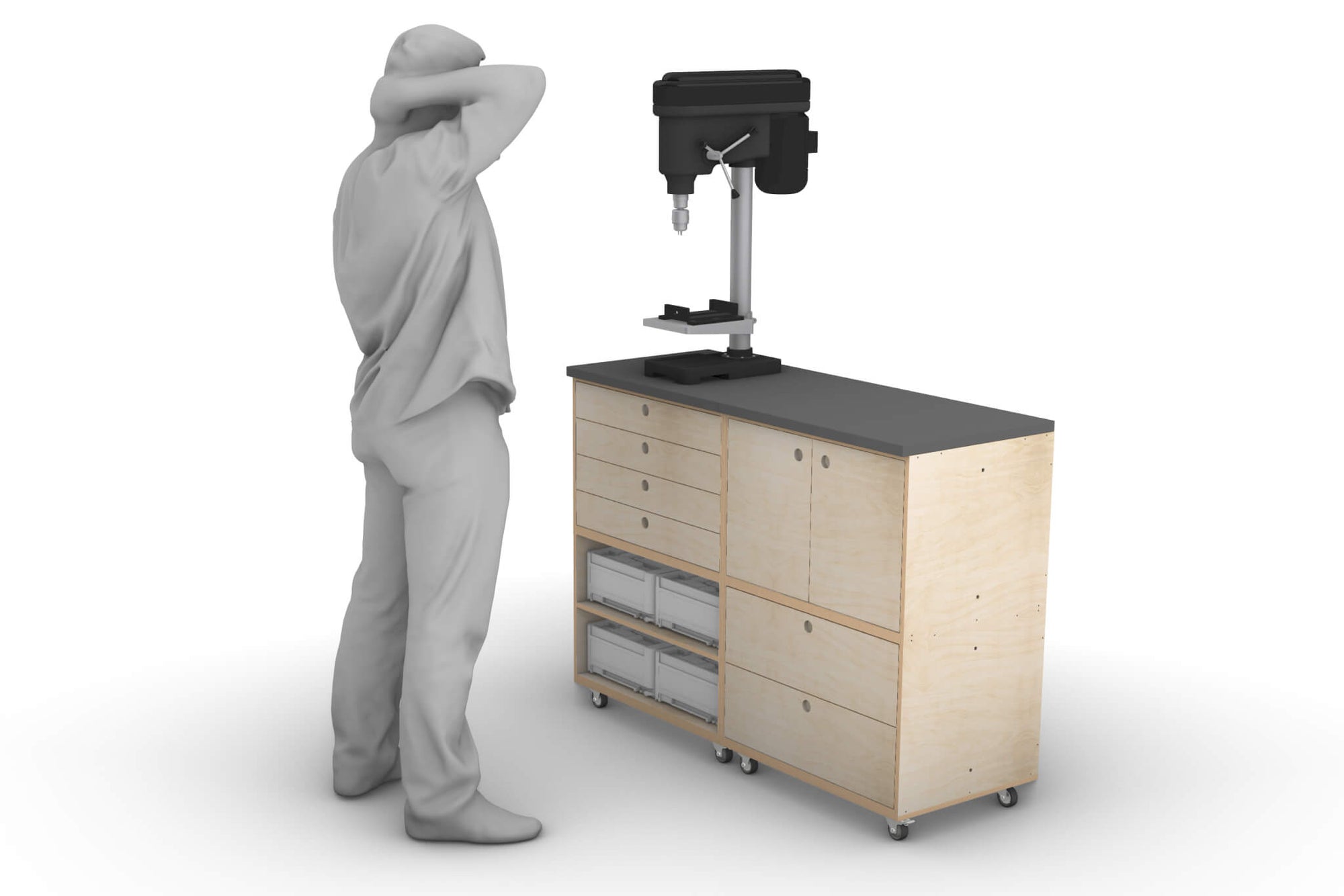

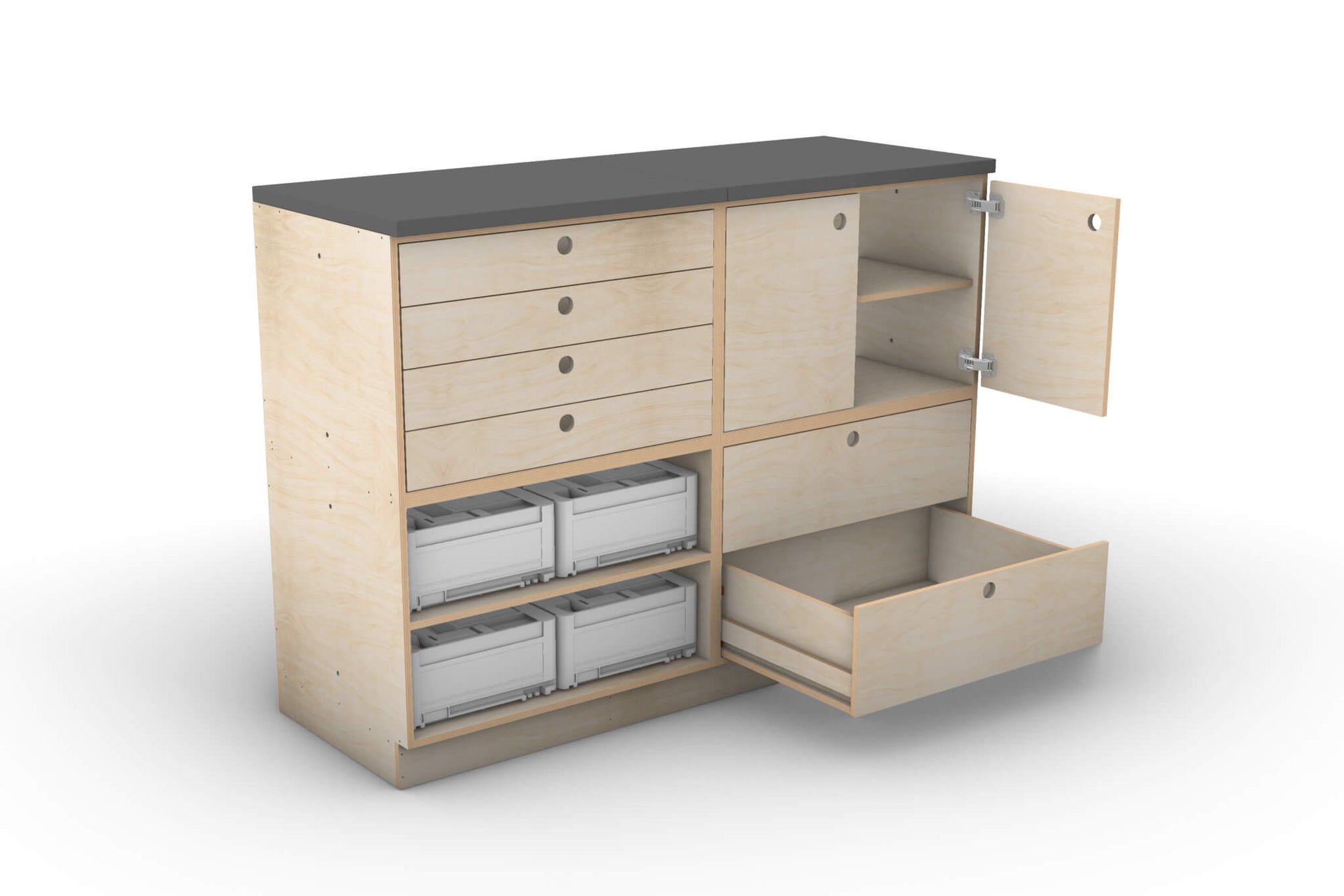

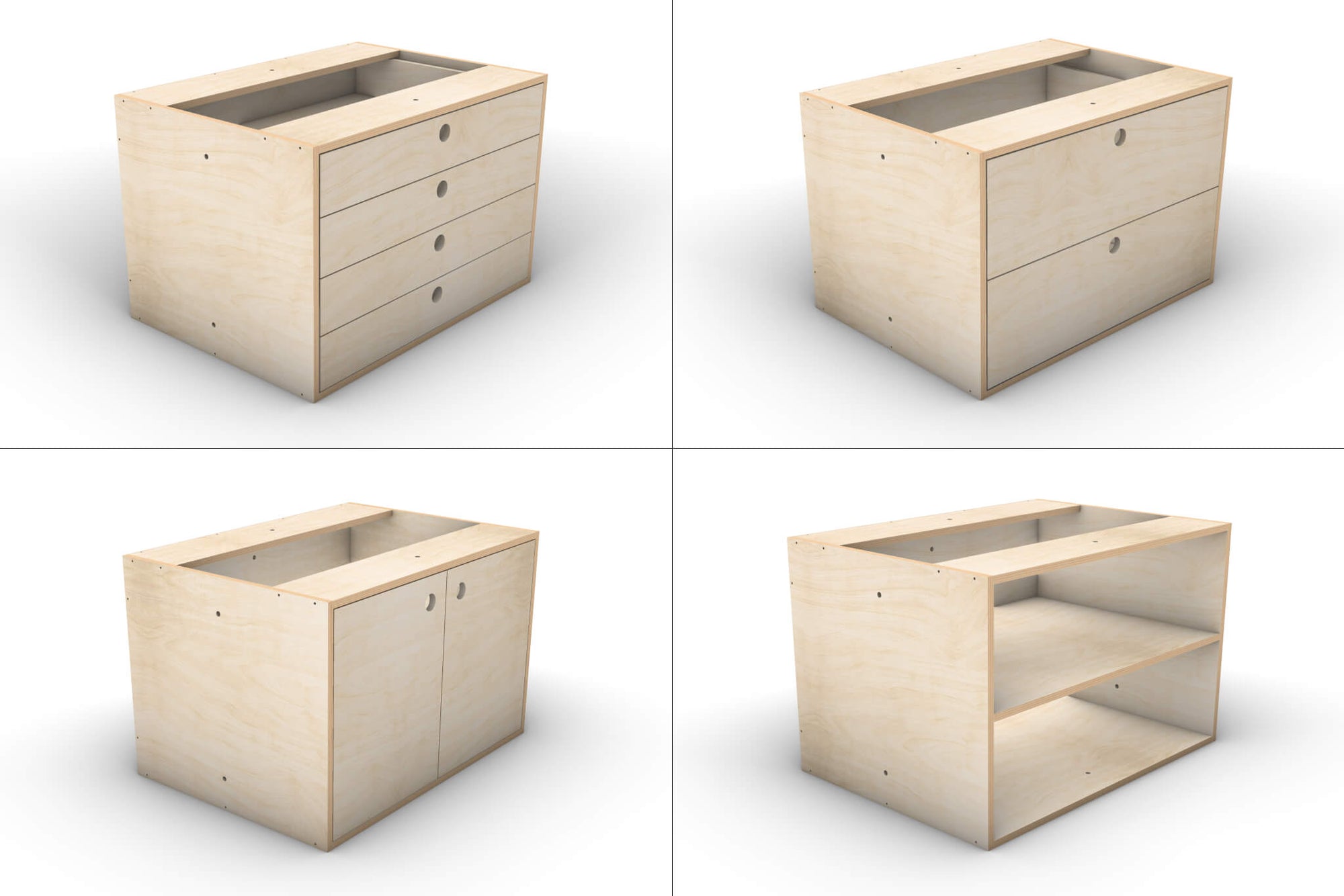

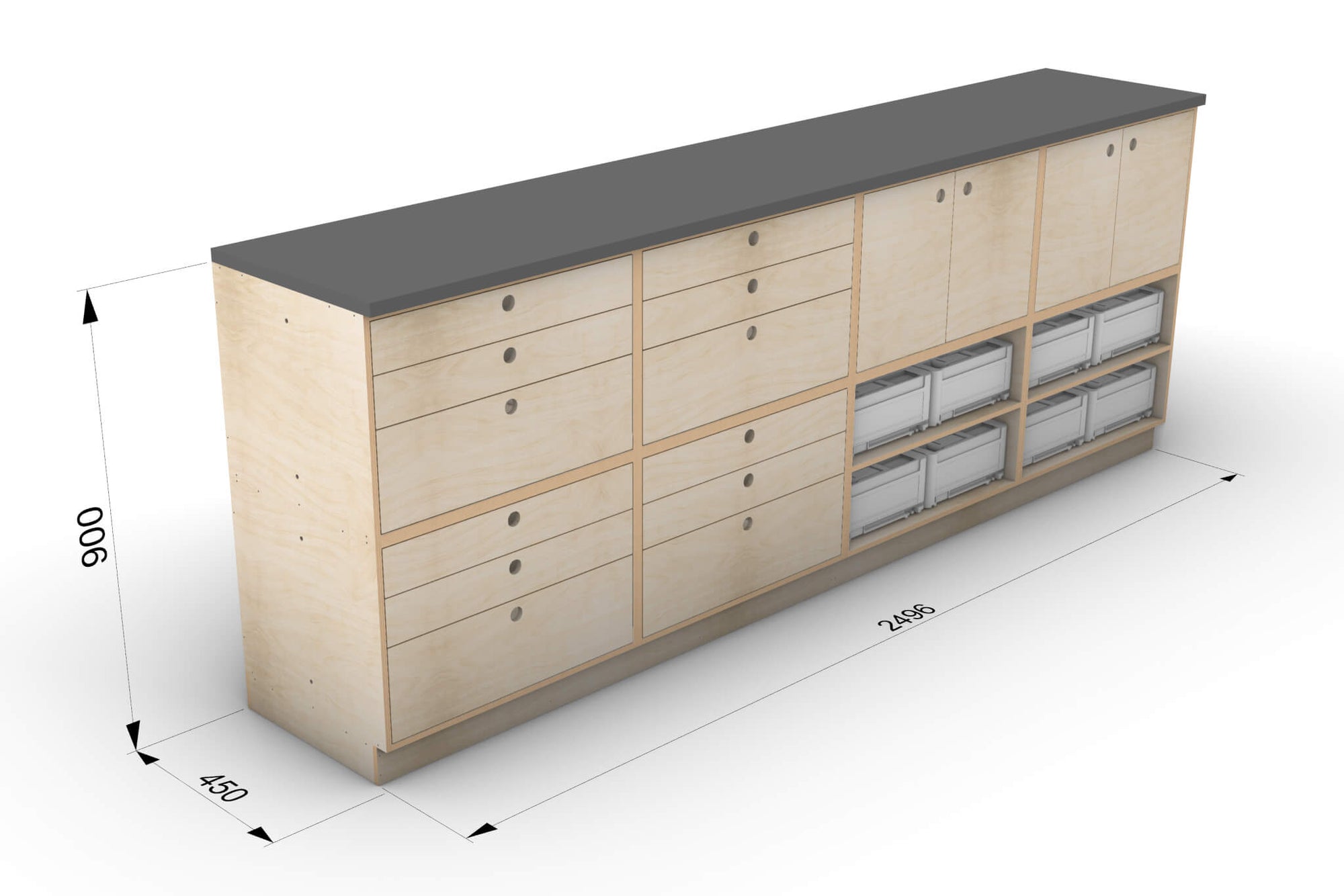

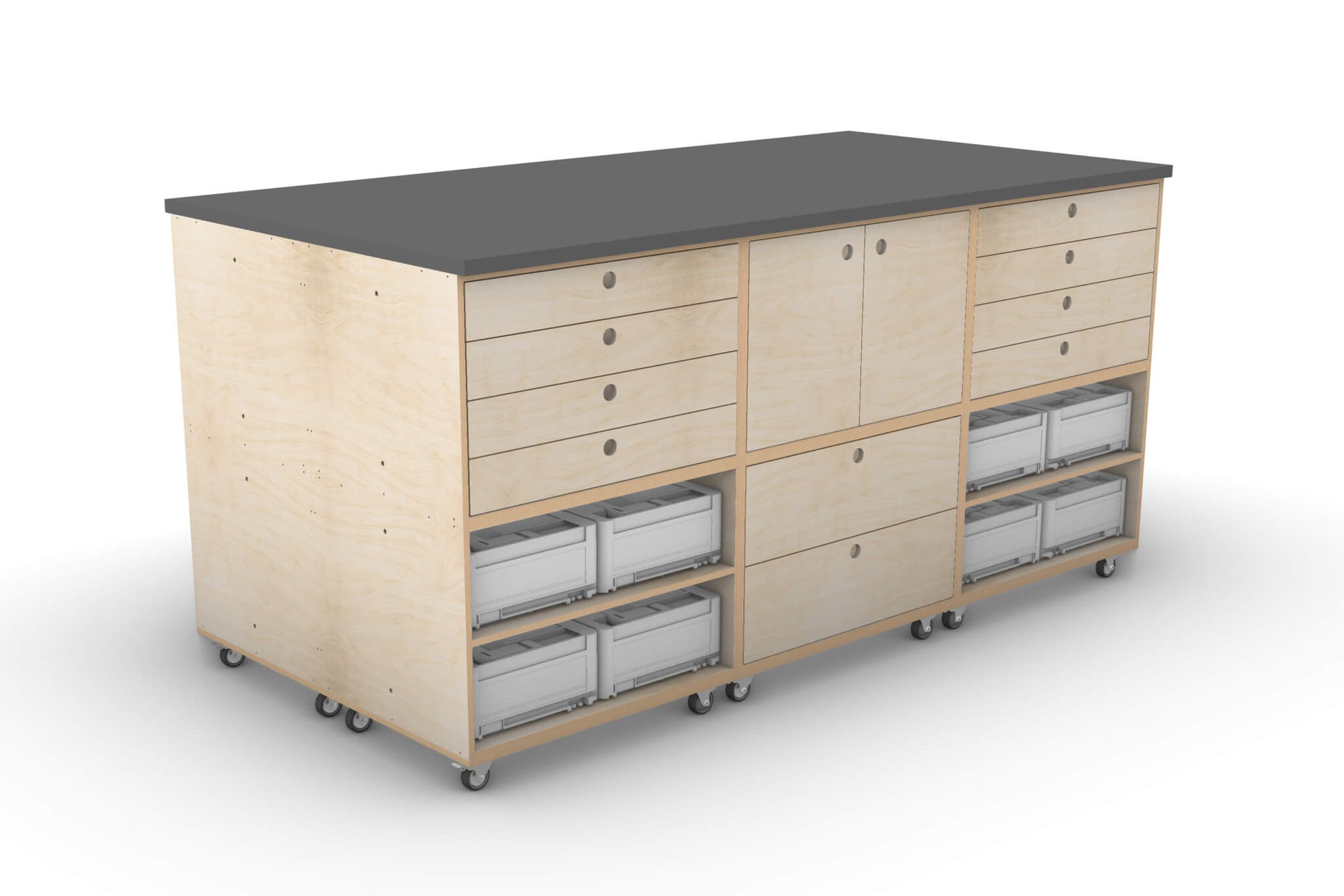

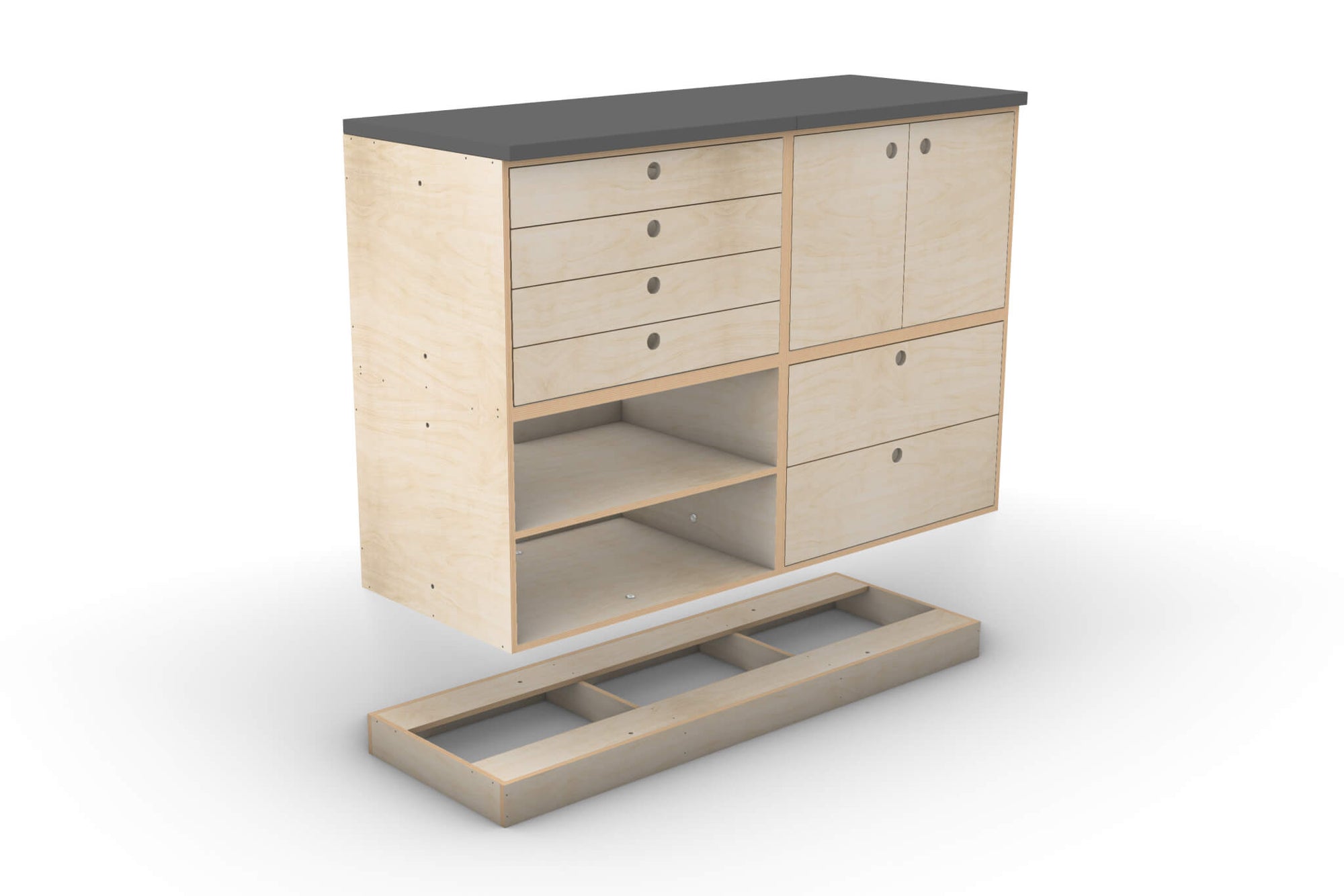

The four module designs can be configured into shelving, trolleys, or workbenches using just three sheets of 12mm plywood, with minimal material waste.

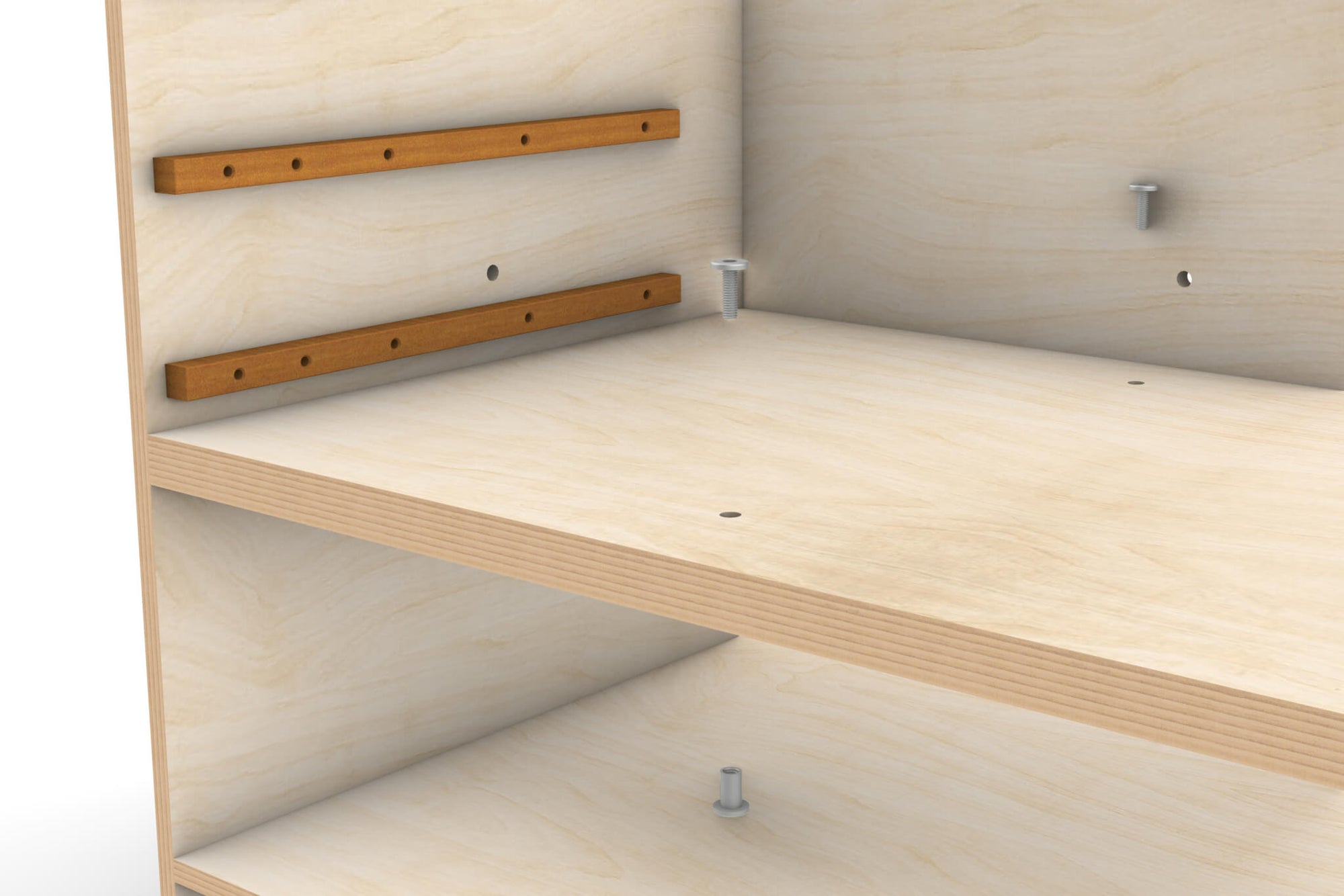

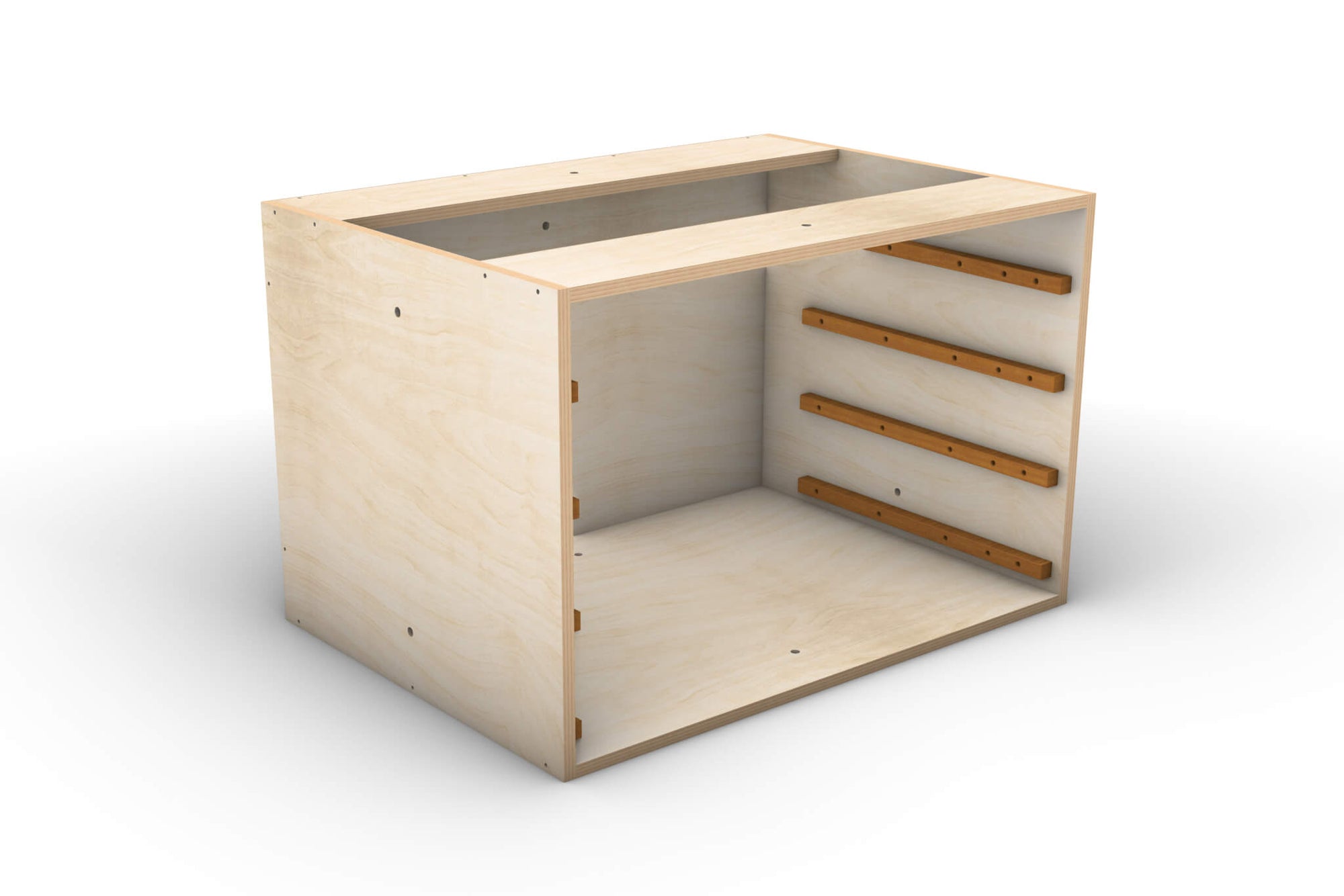

Key features include adjustable shelving, customisable drawer layouts, and a simple timber slide system‚ no expensive hardware required.

  • Skill Level:
    • Beginner
  • Units:

    • Millimetres (mm)
  • Pages:

    51-Page PDF

What's Included:
  • Clear and concise assembly drawings
  • Labelled cut diagram showing nested parts
  • Labelled DXF files for CNC machining (optional)
  • CAD model (.STEP format)
  • Dimensioned drawings
  • 51 pages in PDF in total

What's Required:
  • 3  x 12mm Plywood sheets required
  • Basic hand tools such as drill and driver for assembling
  • Circular saw required if manual cutting

Additional Information:
  • All plans are in English and the units are in mm (metric)
  • Dimensions per module = 450mm D x 410mm H x 624 W
  • Construction = 12mm Plywood x 3 sheets required
  • Plywood sheet size = 1200mm x 2400mm

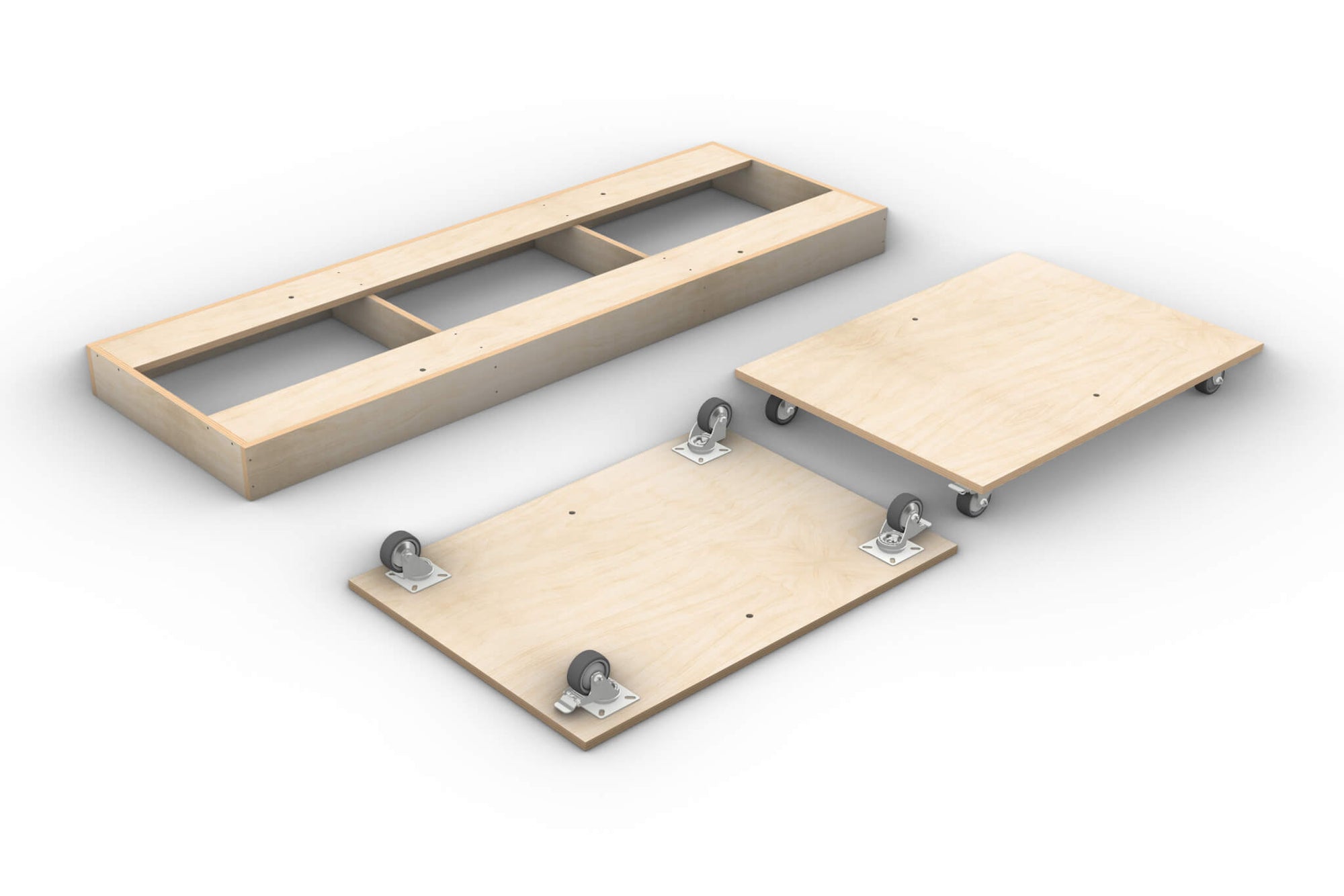

  • Sheet estimate does not account for material required to create cabinet bases or trolleys
  • 3.5 sheets required for CNC option due to tooling allowance
  • CAD model is in STEP. format however I can export most required formats upon request
  • Small drawer dimensions = 542W x 396D x 81.5H
  • Large drawer dimensions = 542W x 396D x 150H

Important:

This is a digital download. The product shown is a rendering not a physical product.

All digital plans provided by CamMade Studio are intended for personal use only.

HOW IT WORKS

[ 01 ]

DOWNLOAD

Pick which plans best suit your campervan conversion project and receive them instantly once you've purchased.

[ 02 ]

CUT

Turn your plans into a physical assembly kit, either by sending them to a local CNC workshop (most towns have one) or cut them out yourself.

[ 03 ]

ASSEMBLE

Assemble the parts using the step-by-step instructions included in your download. It's just like IKEA but for your van.

FAQs

Plans are provided in PDF format, ensuring compatibility with most devices and ease of printing. If you require a different format, please contact me to discuss your needs.

I am open to sharing my plans for commercial use, I only ask two things:

  1. That you get in touch and let me know that you plan to use them commercially — I'd love to know more about you, your business and where you are.
  2. You purchase the plans via the online store for each unit that you sell.

Looking forward to hearing from you!

While I don't offer step-by-step support, I'm happy to answer specific questions you may have during your build. Feel free to reach out with your queries.

These plans are best suited for intermediate builders or those with some prior DIY, trade, or construction experience. They’re detailed and thoughtfully laid out, but they do assume a basic understanding of tools, materials, and build processes.

If you're just starting out, you're still welcome to purchase — just know that you may need to do a bit of extra research or enlist help from someone with experience.

All plans are in millimetres (mm). Some plans have also been converted into inches too. The units of measurement a plan comes are stated on each plan. Get in touch if there's a plan you're after not in your preferred units.

Cam Holder, founder and designer of Cam Made.

Meet the Designer

Cam Holder is an Industrial Designer, CNC Machinist, and Cabinet Maker with a serious soft spot for clever, functional design. He’s the hands and brains behind every plan—making sure they’re not just smart and solid, but actually fun to build too.
