Universal Camper Kitchen Plans (Left Side Opening)

Regular price $30.00 NZD
Shipping calculated at checkout.

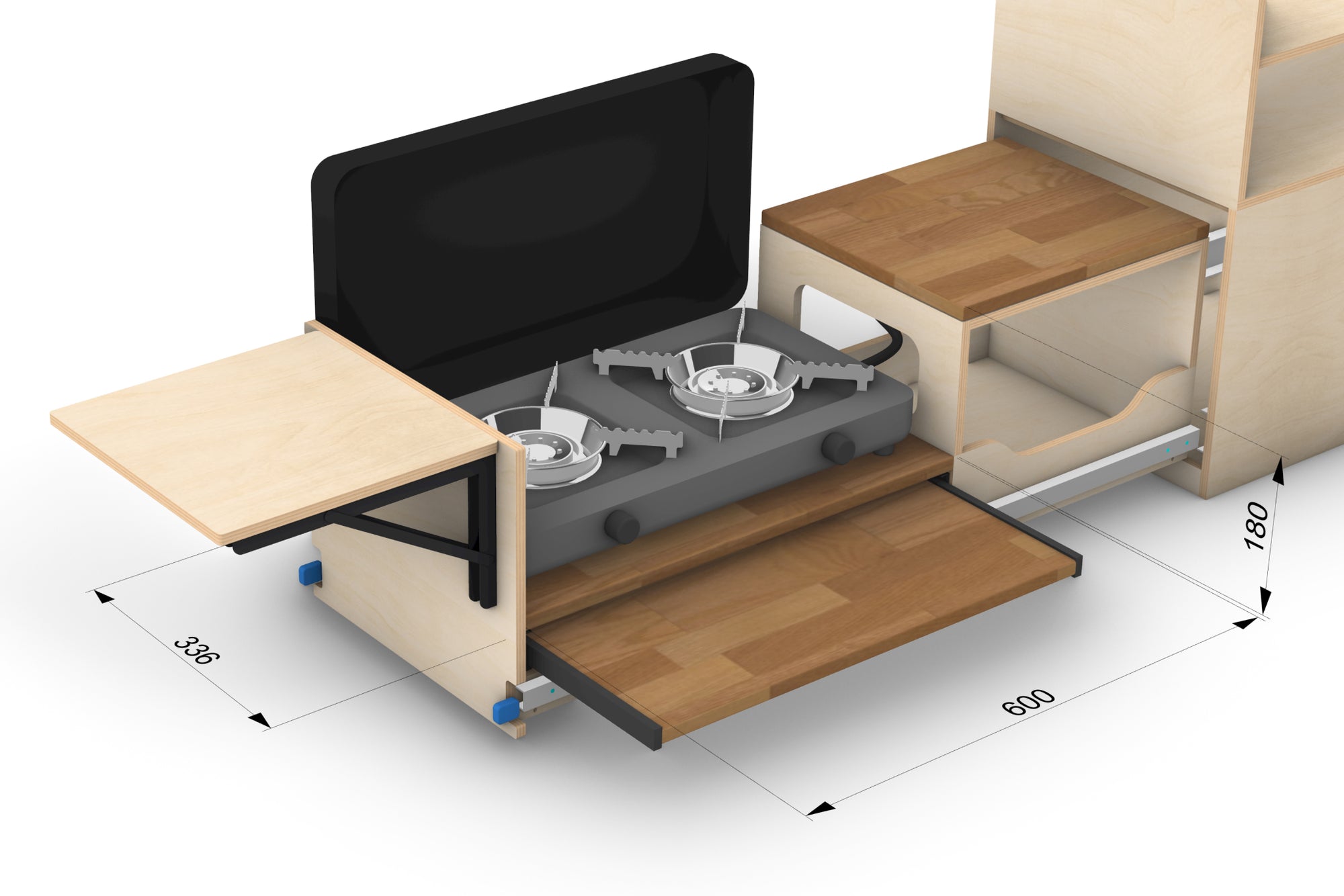

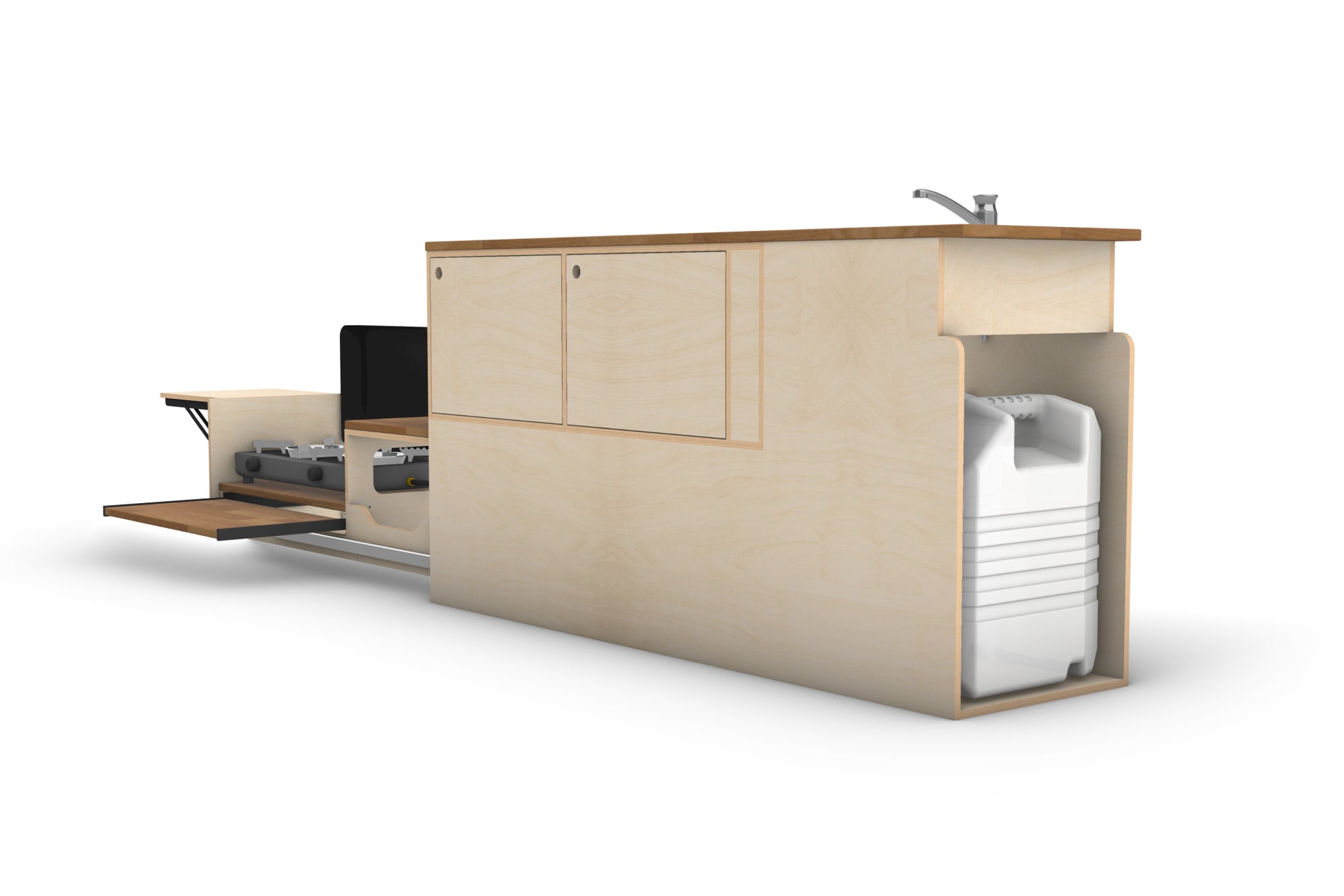

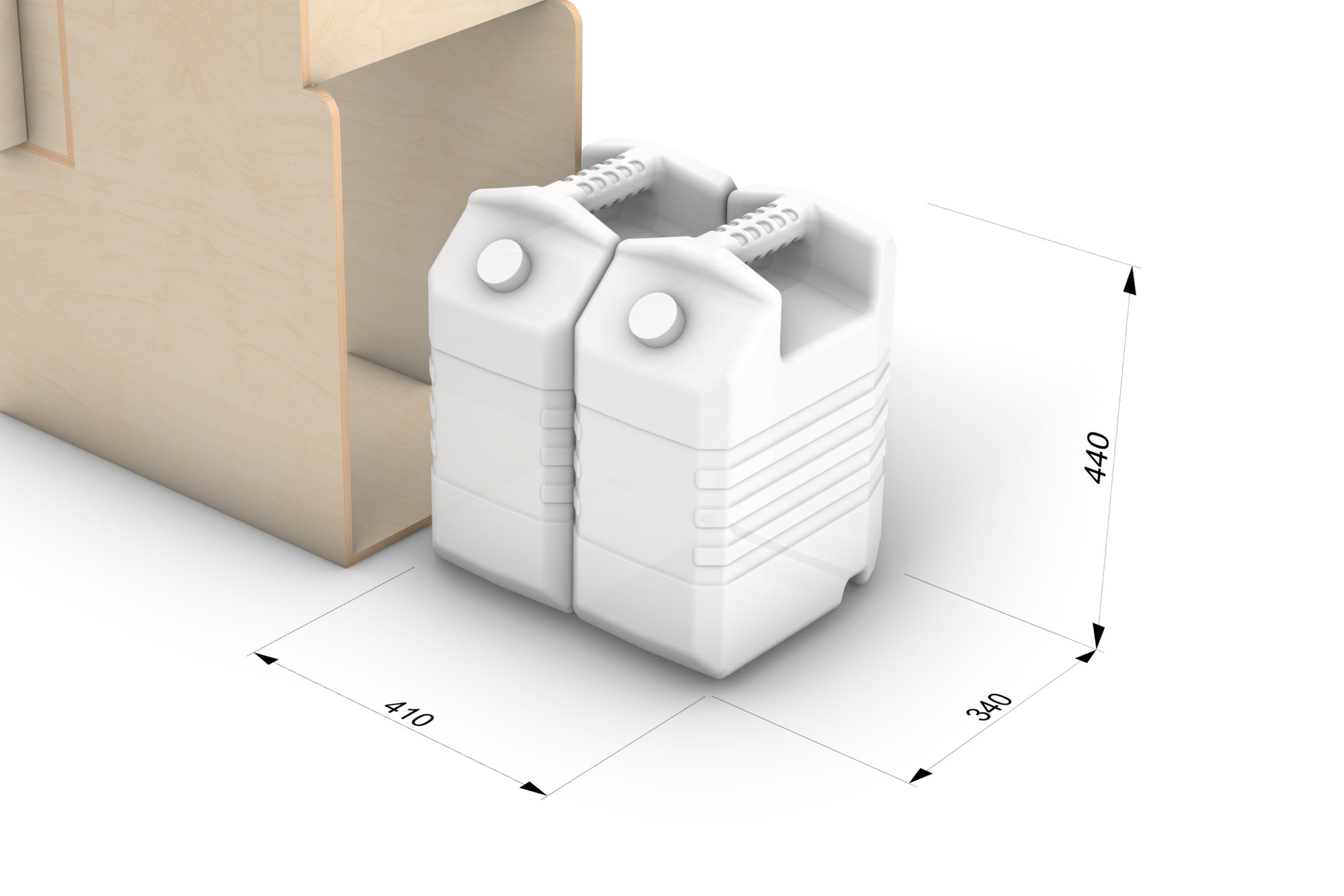

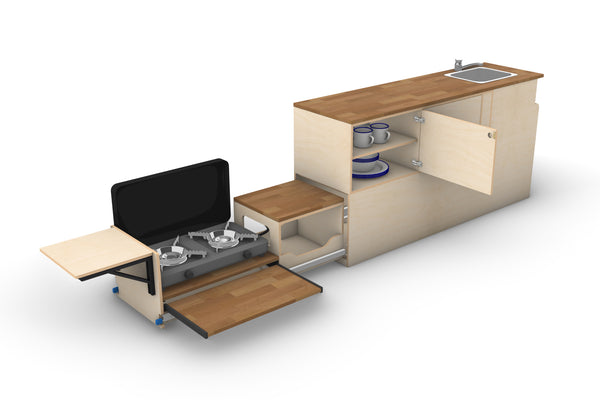

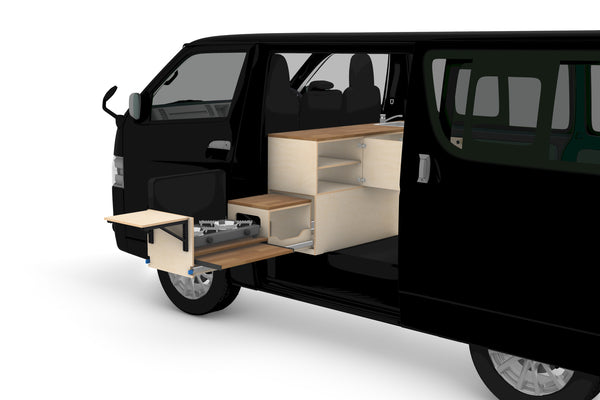

This detailed PDF guide provides step-by-step instructions, diagrams, and a full cut list to help you build a functional camper kitchen — perfect for both intermediate and experienced DIYers. The design includes a pull-out cooking drawer with storage, a fold-up end table, and space for two 23L jerry cans.

Your digital download includes 36 pages of plans with manual cutting dimensions, CNC-ready DXF files, hardware overview, and a CAD model in STEP format.

  • Skill Level:
    • Intermediate
  • Units:

    • Millimetres (mm)
  • Pages:

    36-Page PDF

What's Included:
  • Clear and concise assembly drawings
  • Dimensioned parts for manual cutting
  • Labelled DXF files for CNC machining
  • Dimensioned drawings
  • Overview of Hardware required
  • 36 pages in PDF in total

What's Required:
  • 2  x 12mm Plywood sheets required
  • Basic hand tools such as drill and driver for assembling
  • Jig saw and circular saw required if manual cutting

Additional Information:
  • All plans are in English and the units are in mm (metric)

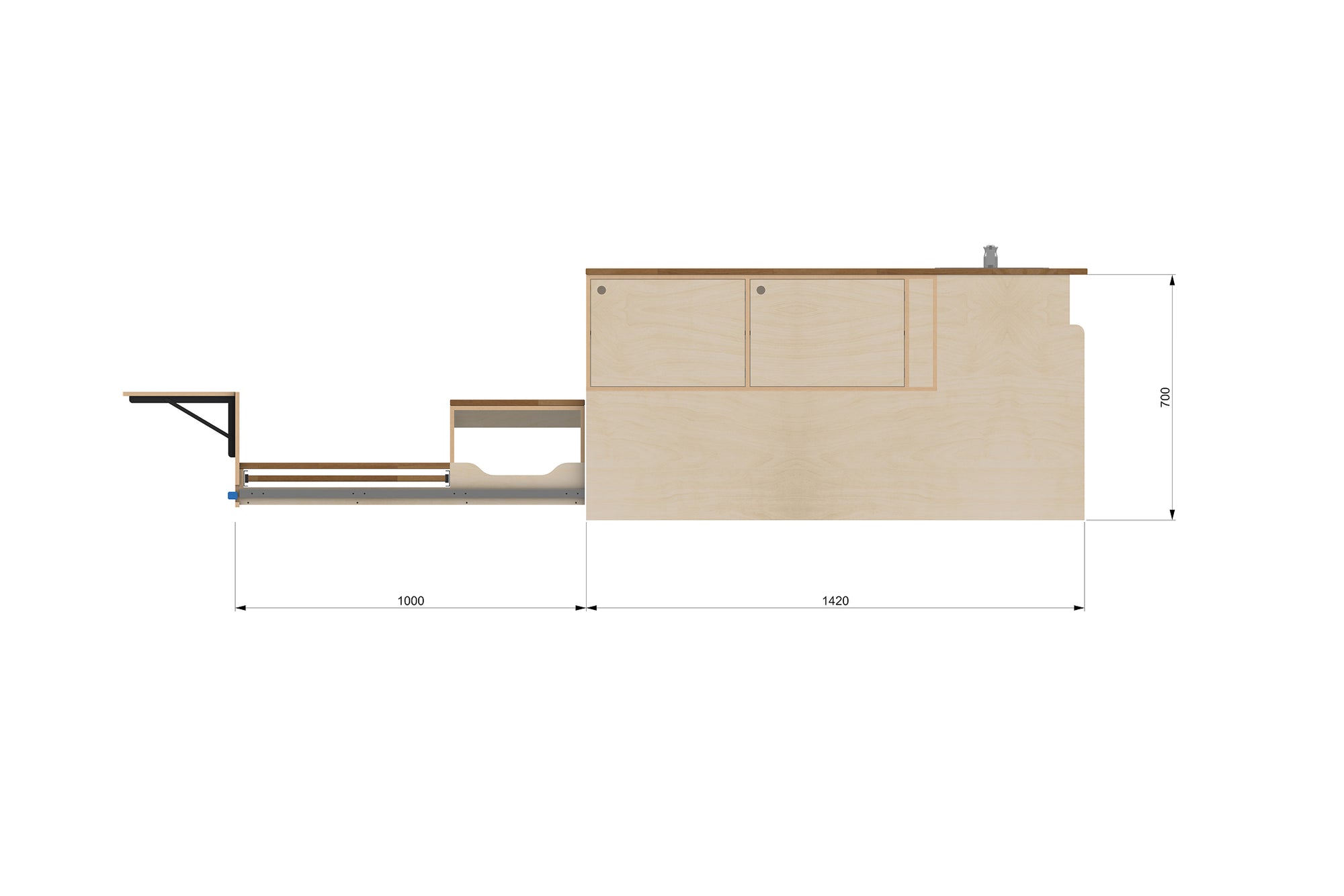

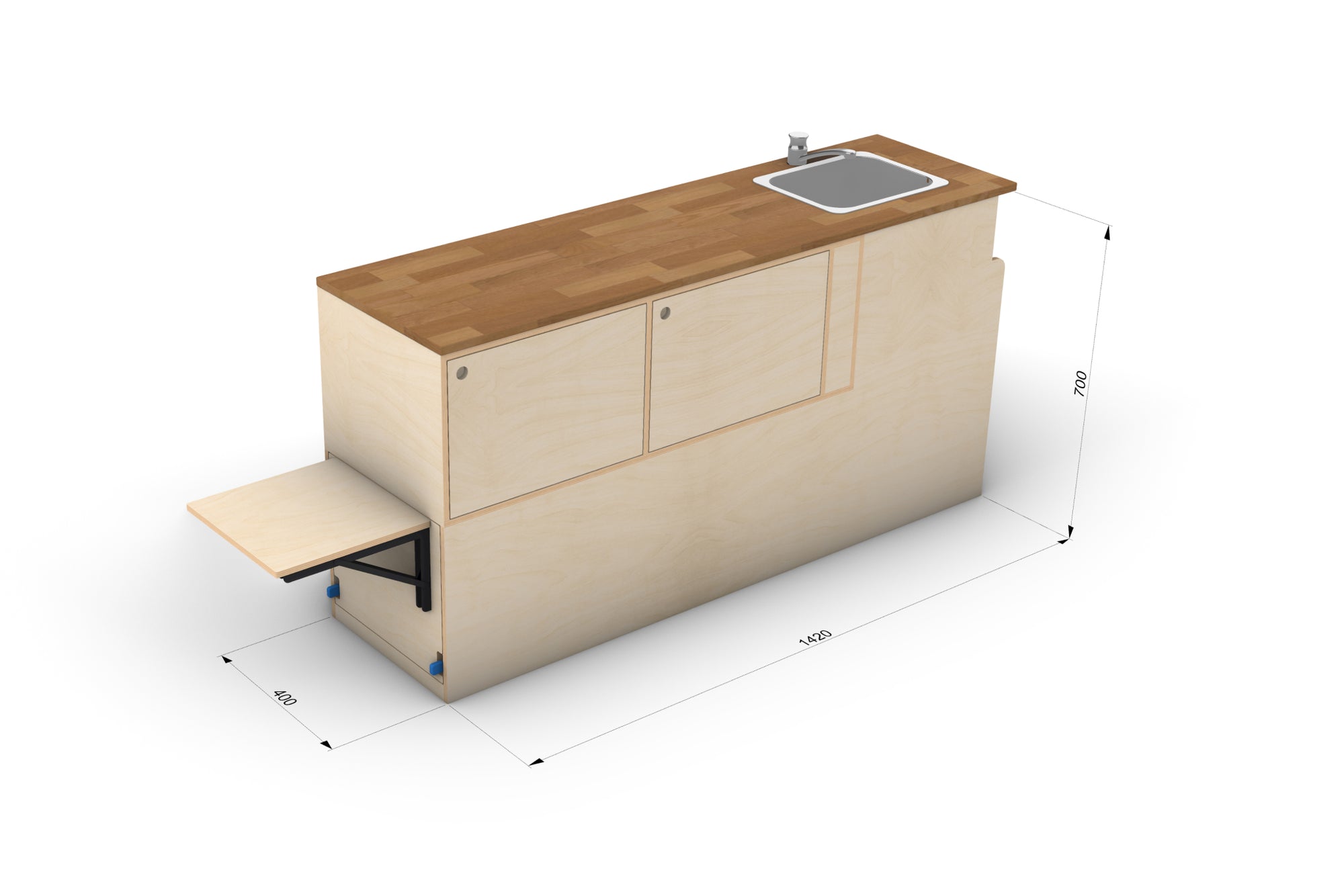

  • Overall footprint of unit = 1420mm wide x 400mm deep x 700mm high
  • Drawer runner extension = 1000mm
  • Plywood sheet size = 1200mm x 2400mm
  • It is recommended that the plywood is sanded and sealed before installation

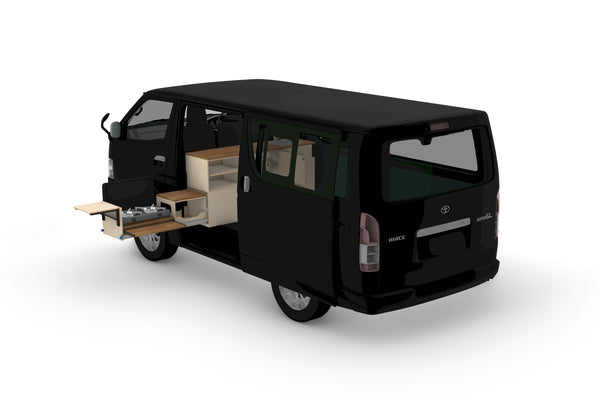

  • Unit will need to be secured to van
  • CAD model is in STEP. format however I can export most required formats upon request
  • This design opens on the left hand side (check my other listing for right hand option)

Reviews

  • ★★★★★

    Amazing plans and so easy to read and understand. I have sent the CNC plans off and will look forward to building it soon. Thanks!

    Matthew

  • ★★★★★

    Thanks a lot for these files. Saved me a shit-tonne of work!

    Marcel

  • ★★★★★

    Worked out great and went together so easily! Also great replies and assistance with questions I had.

    Daniel

  • ★★★★★

    Good quality and very helpful for our new camper. Cam is also very helpful and answers very fast.

    Simon

  • ★★★★★

    The quality of the project is very good, well planned and prepared for CNC cutting.

    Władysław

FAQs

Plans are provided in PDF format, ensuring compatibility with most devices and ease of printing. If you require a different format, please contact me to discuss your needs.

I am open to sharing my plans for commercial use, I only ask two things:

  1. That you get in touch and let me know that you plan to use them commercially — I'd love to know more about you, your business and where you are.
  2. You purchase the plans via the online store for each unit that you sell.

Looking forward to hearing from you!

While I don't offer step-by-step support, I'm happy to answer specific questions you may have during your build. Feel free to reach out with your queries.

These plans are best suited for intermediate builders or those with some prior DIY, trade, or construction experience. They’re detailed and thoughtfully laid out, but they do assume a basic understanding of tools, materials, and build processes.

If you're just starting out, you're still welcome to purchase — just know that you may need to do a bit of extra research or enlist help from someone with experience.

All plans are in millimetres (mm). Some plans have also been converted into inches too. The units of measurement a plan comes are stated on each plan. Get in touch if there's a plan you're after not in your preferred units.
