Modular Storage Box System Plans

Regular price $25.00 NZD
Shipping calculated at checkout.

This modular storage system PDF guide includes step-by-step instructions, detailed diagrams, and CNC-ready files, making it easy for DIYers of all levels to build.

The four module designs can be configured into shelving, trolleys, or workbenches using just three sheets of 12mm plywood, with minimal material waste.

Key features include adjustable shelving, customisable drawer layouts, and a simple timber slide system‚ no expensive hardware required.

  • Skill Level:
    • Beginner
  • Units:

    • Millimetres (mm)
  • Pages:

    51-Page PDF

What's Included:

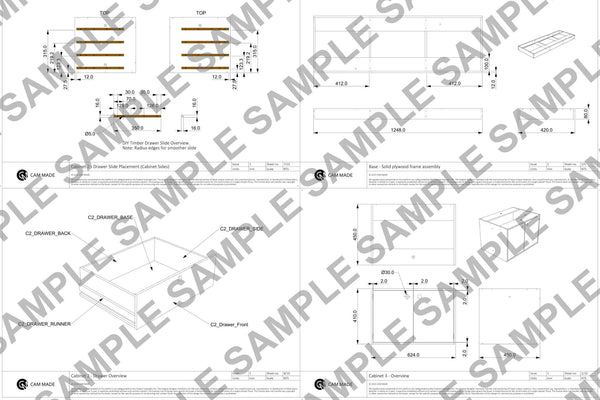

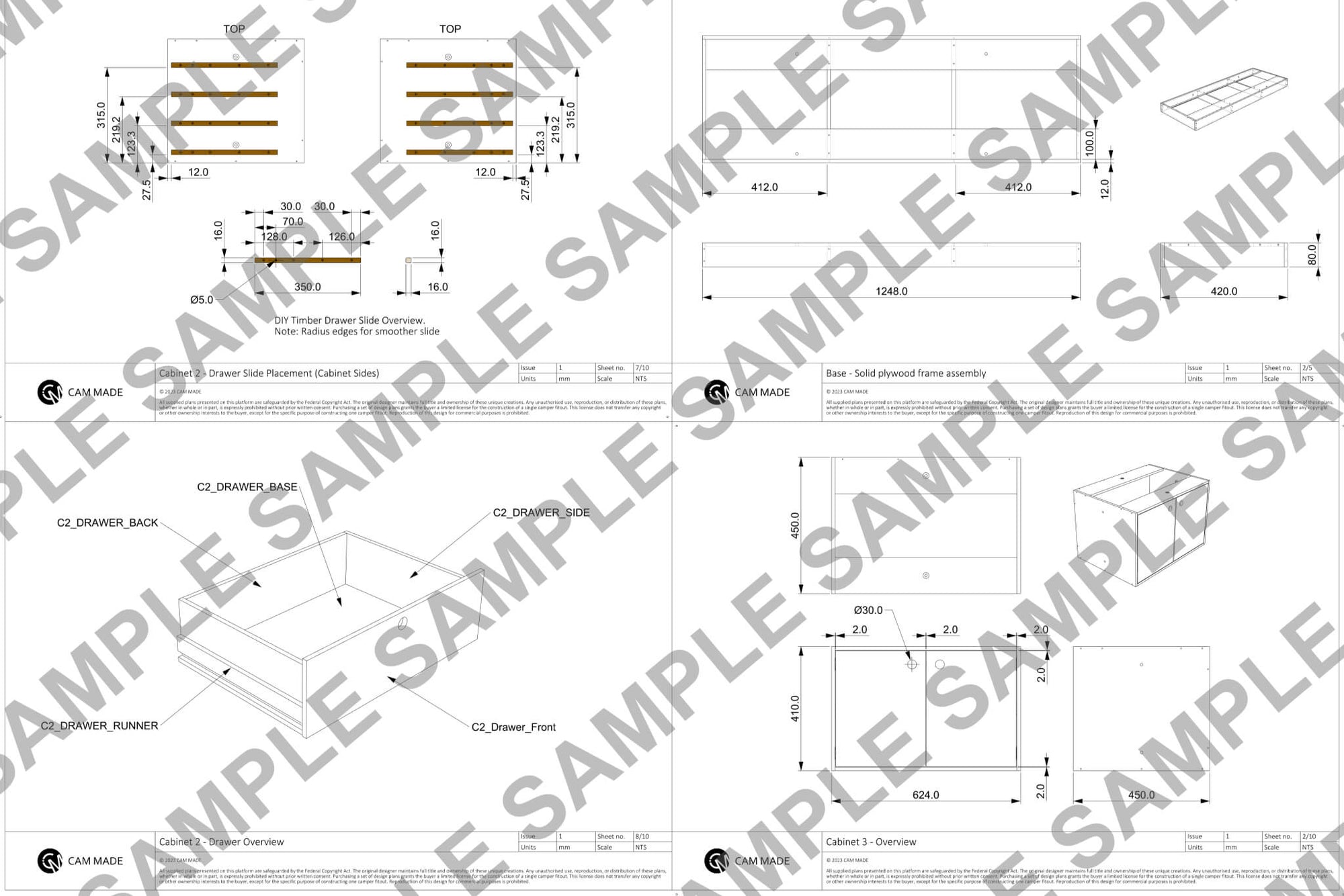

  • Clear and concise assembly drawings
  • Labelled cut diagram showing nested parts
  • Labelled DXF files for CNC machining (optional)
  • CAD model (.STEP format)
  • Dimensioned drawings
  • 51 pages in PDF in total

What's Required:
  • 3  x 12mm Plywood sheets required
  • Basic hand tools such as drill and driver for assembling
  • Circular saw required if manual cutting

Additional Information:
  • All plans are in English and the units are in mm (metric)
  • Dimensions per module = 450mm D x 410mm H x 624 W
  • Construction = 12mm Plywood x 3 sheets required
  • Plywood sheet size = 1200mm x 2400mm
  • Sheet estimate does not account for material required to create cabinet bases or trolleys
  • 3.5 sheets required for CNC option due to tooling allowance
  • CAD model is in STEP. format however I can export most required formats upon request
  • Small drawer dimensions = 542W x 396D x 81.5H
  • Large drawer dimensions = 542W x 396D x 150H

Important:

This is a digital download. The product shown is a rendering not a physical product.

All digital plans provided by CamMade Studio are intended for personal use only.
