Portable Camp Kitchen Plans (Metric mm)

Regular price $25.00 NZD
Shipping calculated at checkout.

Build your own portable camping kitchen with this detailed PDF guide, featuring step-by-step instructions, diagrams, and optional CNC files.

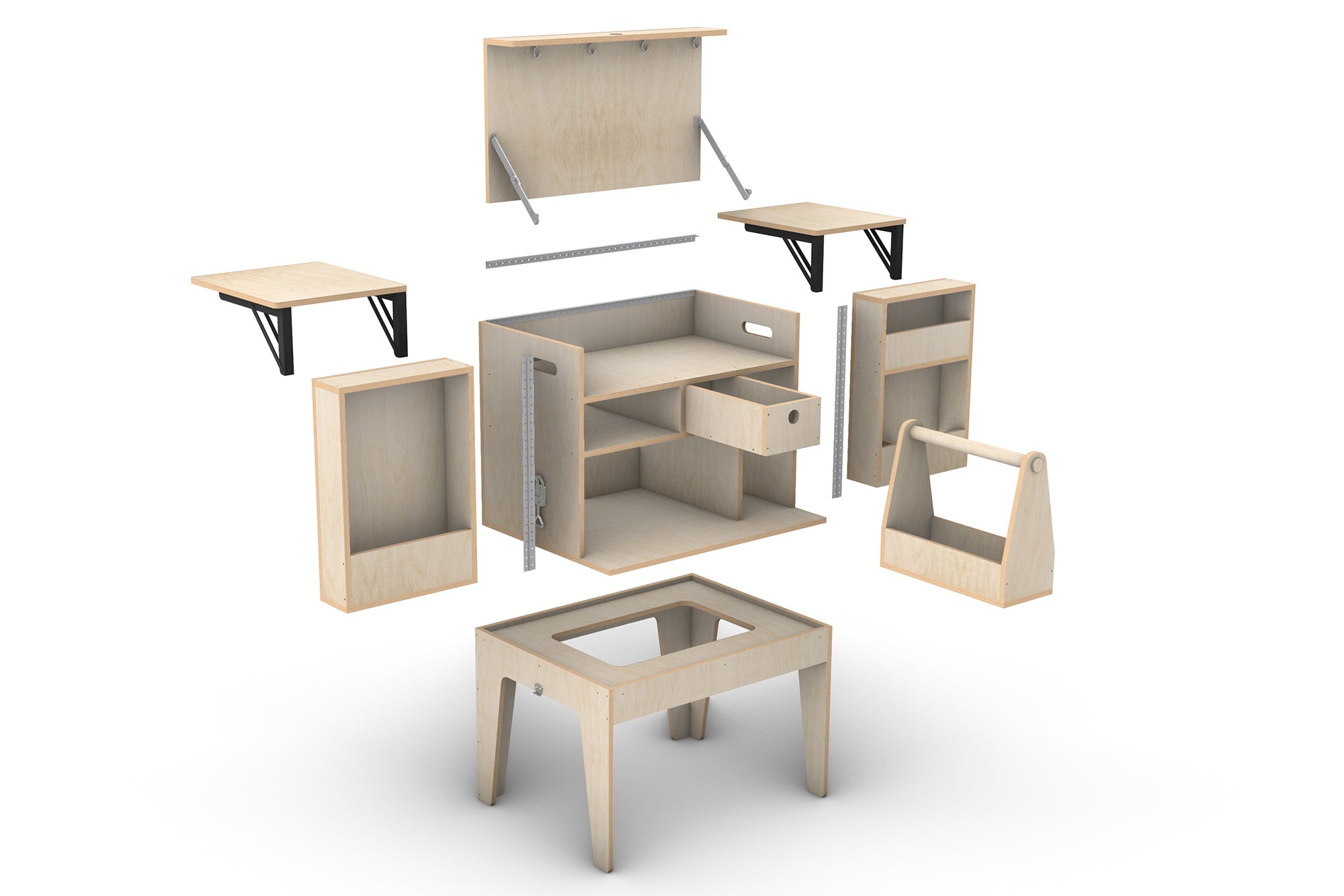

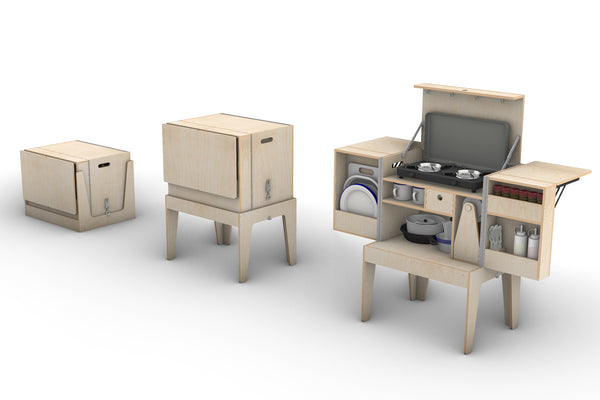

Designed for convenience and functionality, the compact unit includes storage, folding benches, and a caddy, all built from just 1.5 sheets of 12mm plywood.

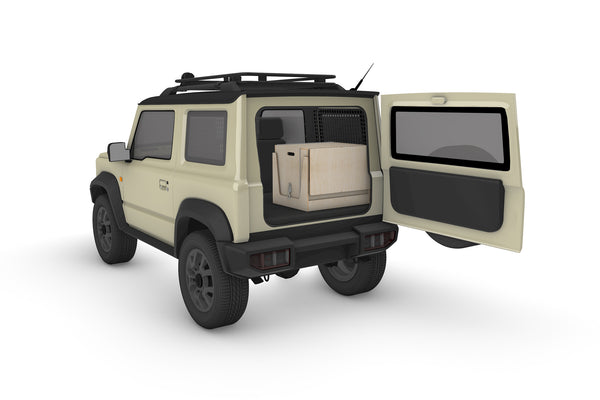

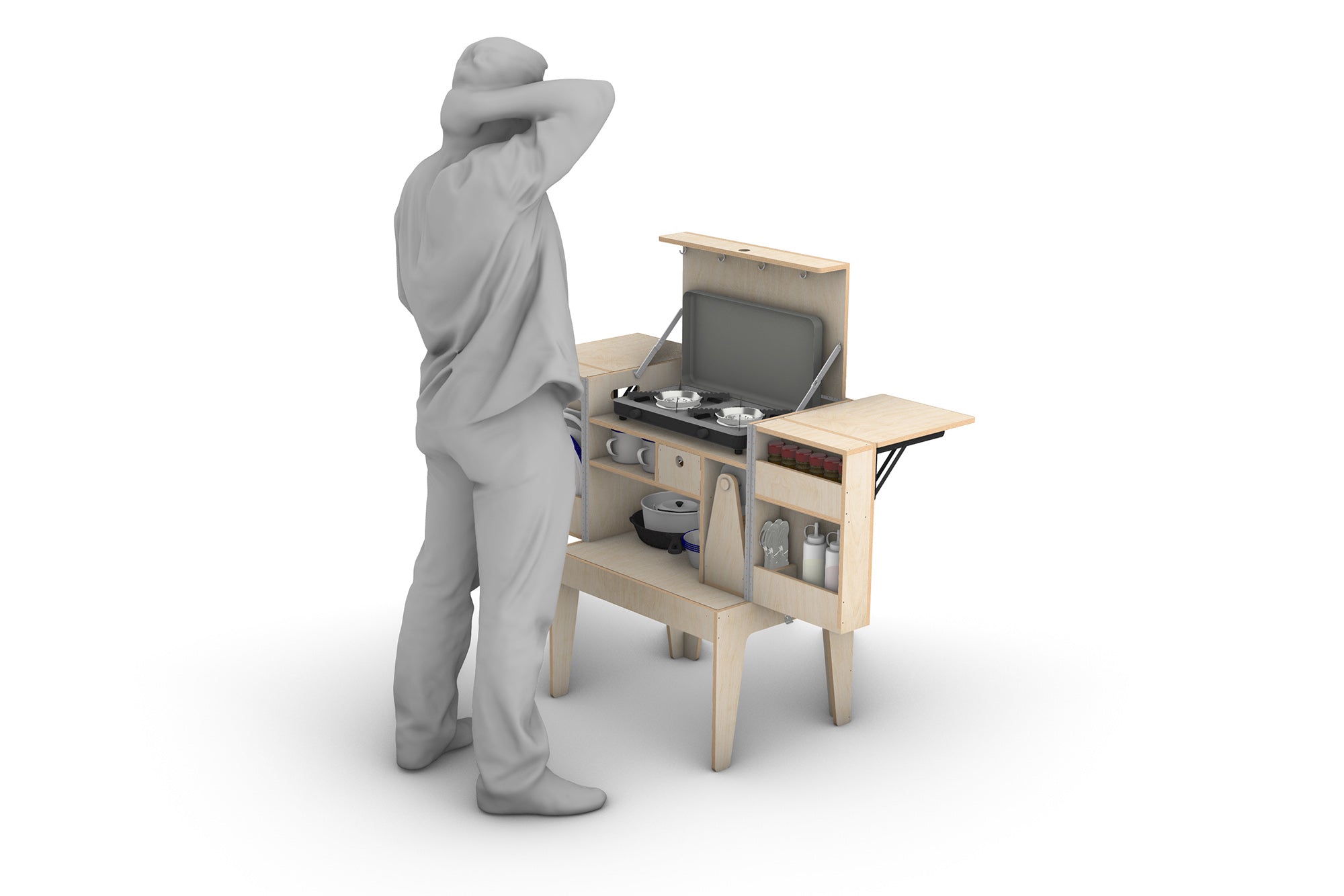

It's easy to transport, fits in most car boots, and accommodates a two-burner gas cooker for outdoor cooking on the go.

This set of plans is available in inches.

  • Skill Level:
    • Beginner
  • Units:

    • Millimetres (mm)
  • Pages:

    15-Page PDF

What's Included:
  • Clear and concise assembly drawings
  • Labelled cut diagram showing nested parts
  • Labelled DXF files for CNC machining (optional)

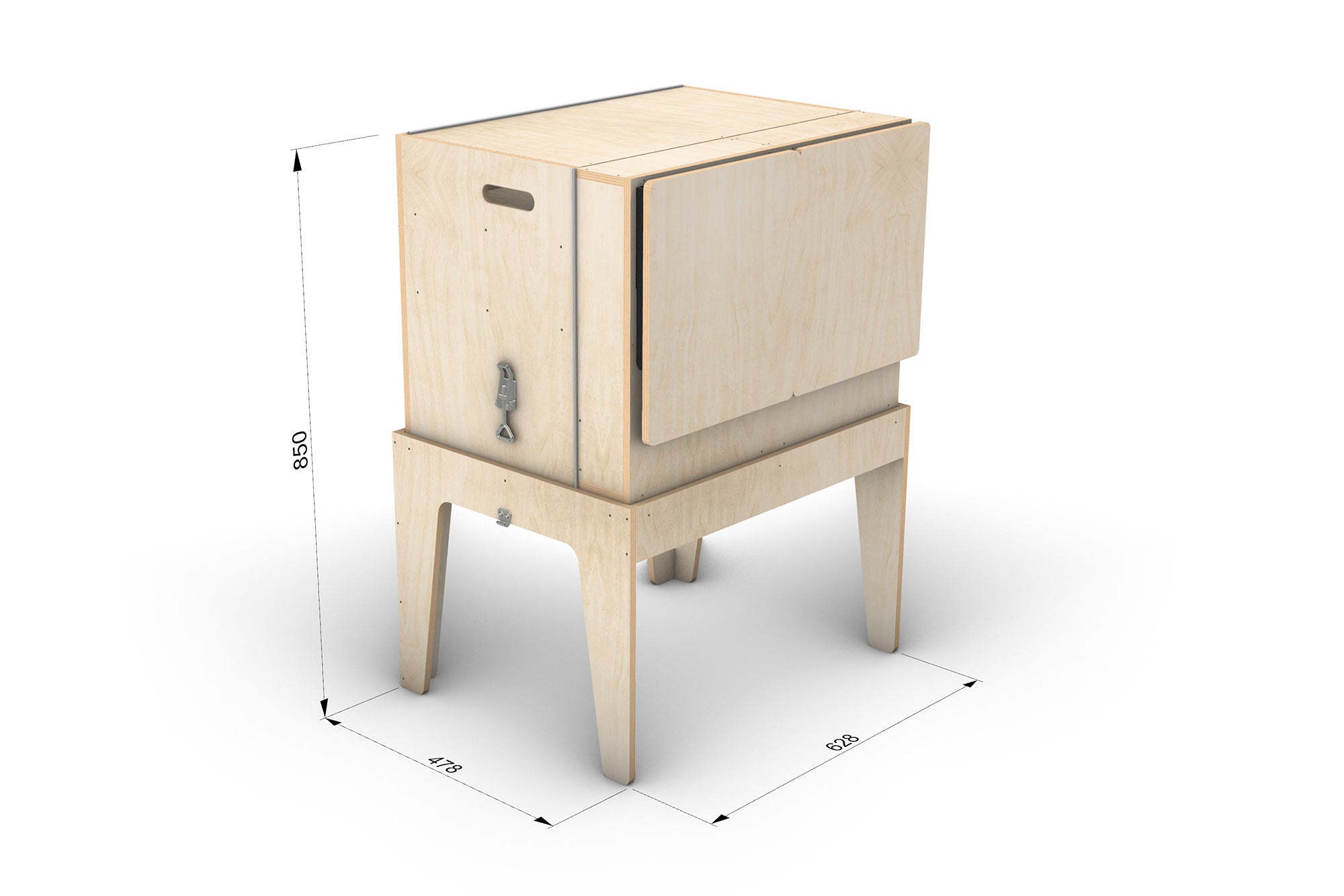

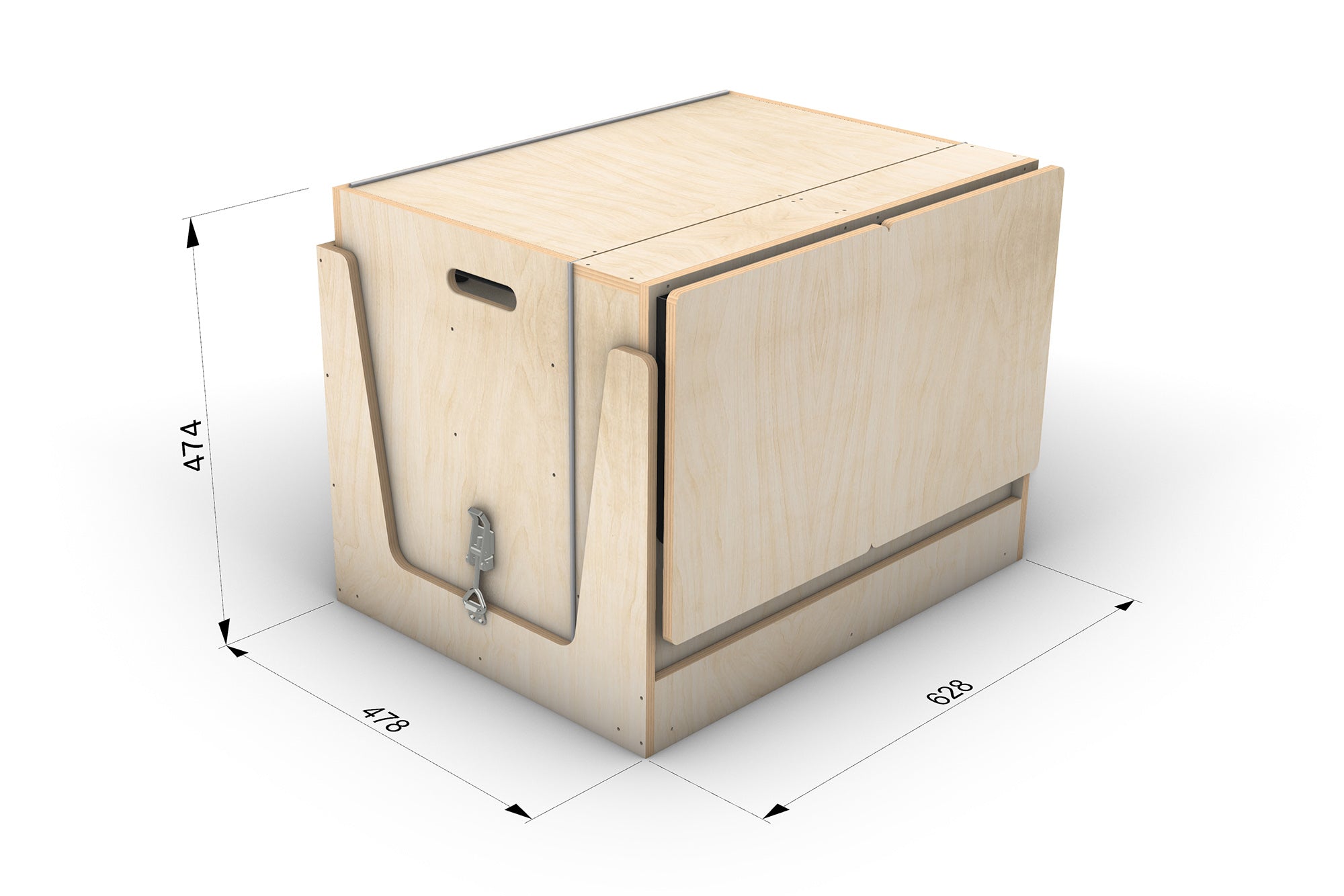

  • Dimensioned drawings
  • Overview of Hardware required
  • 37 pages in PDF in total

What's Required:
  • 1.5  x 12mm Plywood sheets required
  • Basic hand tools such as drill and driver for assembling
  • Circular saw and jig saw required if manual cutting

Additional Information:
  • All plans are in English and the units are available in both mm and inches
  • Size of cavity for gas cooker (mm)  =  575mm wide x 340mm deep x 90mm high
  • Size of cavity for gas cooker (inches)  = 22, 2/3 " wide x 13, 1/2" deep x 3, 1/2" high
  • Approx. weight (materials only) = 15kg
  • Construction = 12mm Plywood x 1.5 sheets required
  • Plywood sheet size = 1200mm x 2400mm
  • CAD model is in STEP. format however I can export most required formats upon request

Important:

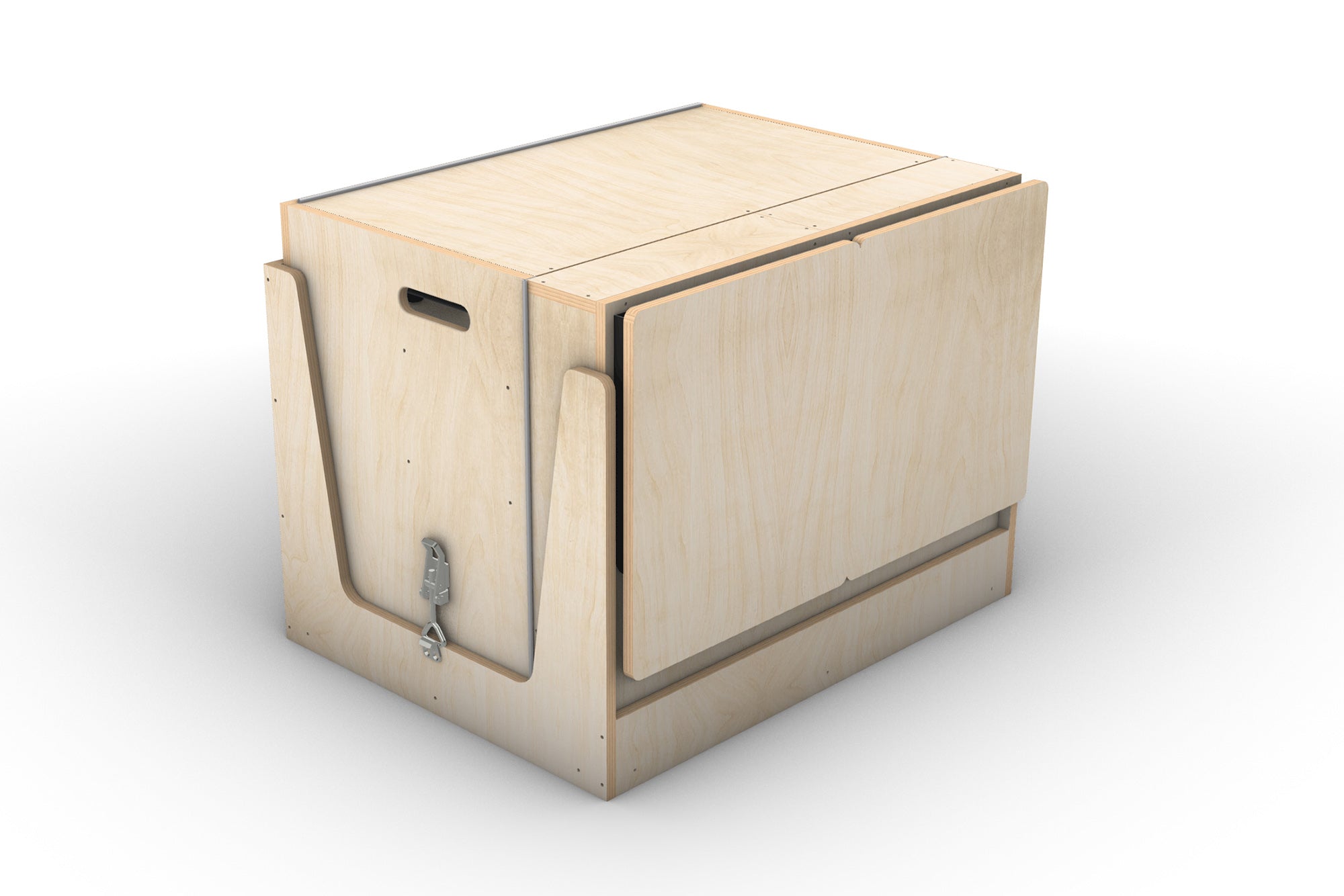

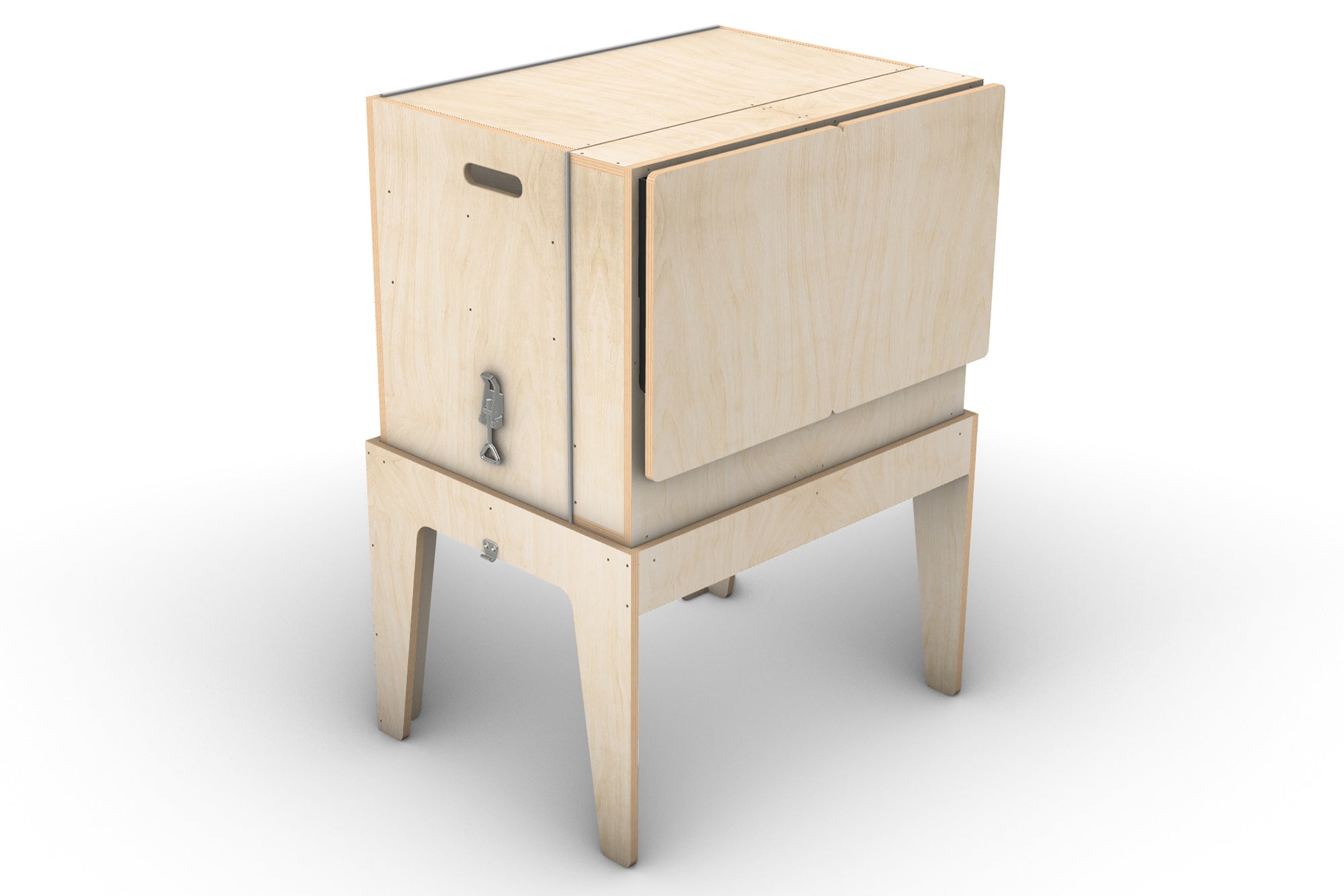

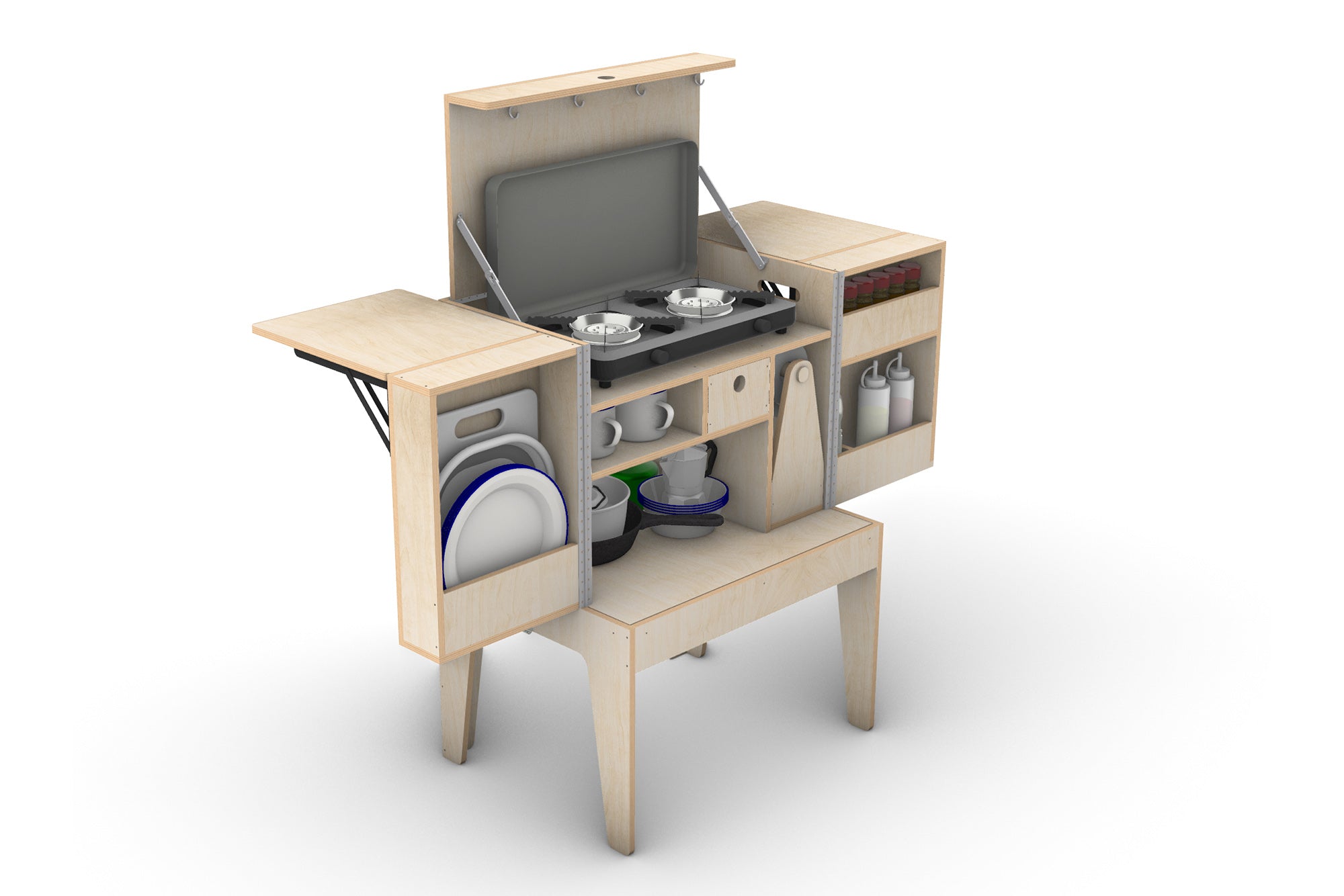

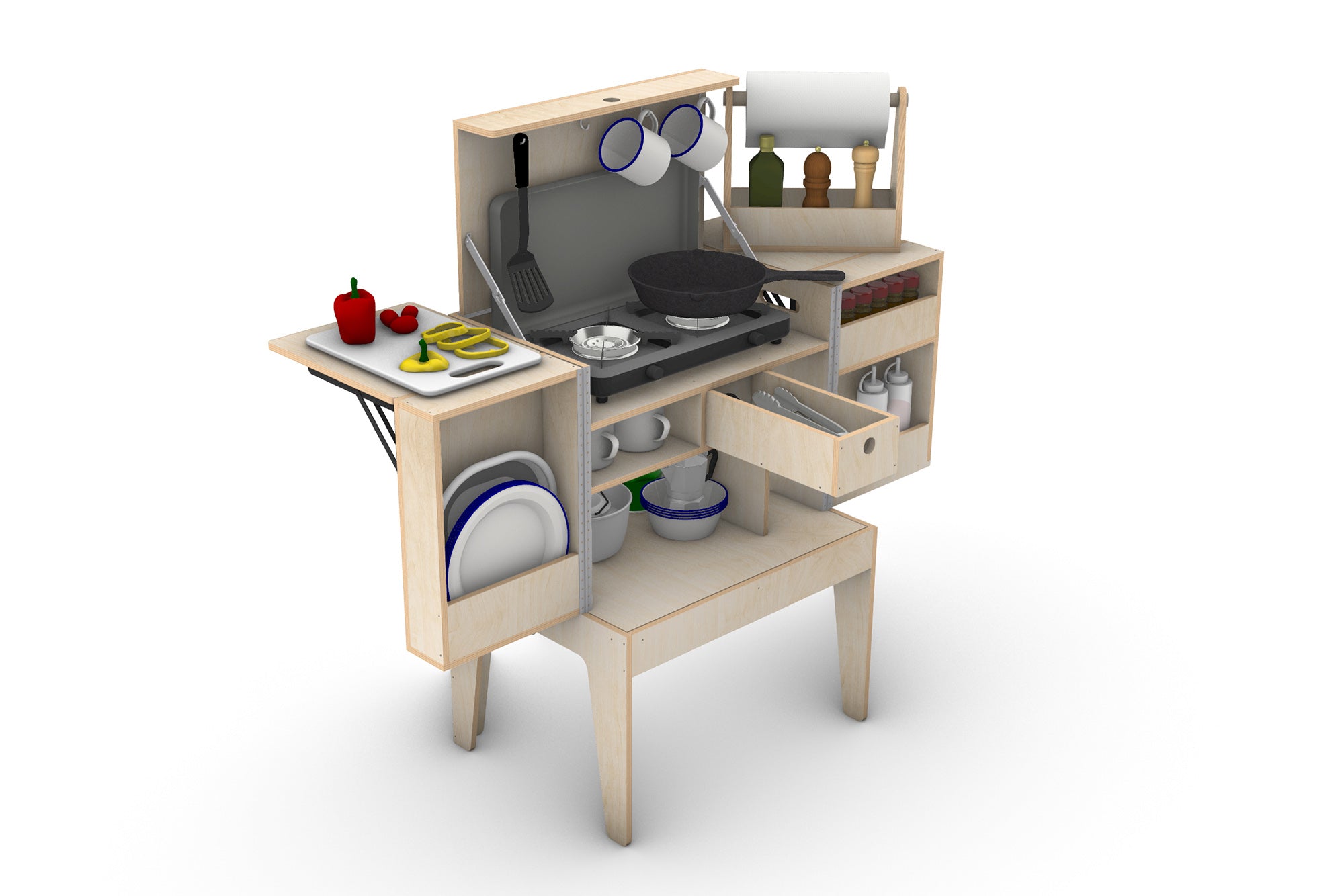

This is a digital download. The product shown is a rendering not a physical product.

All digital plans provided by CamMade Studio are intended for personal use only.

Reviews

  • ★★★★★

    Amazing plans and so easy to read and understand. I have sent the CNC plans off and will look forward to building it soon. Thanks!

    Matthew

  • ★★★★★

    Thanks a lot for these files. Saved me a shit-tonne of work!

    Marcel

  • ★★★★★

    Worked out great and went together so easily! Also great replies and assistance with questions I had.

    Daniel

  • ★★★★★

    Good quality and very helpful for our new camper. Cam is also very helpful and answers very fast.

    Simon

  • ★★★★★

    The quality of the project is very good, well planned and prepared for CNC cutting.

    Władysław

FAQs

Plans are provided in PDF format, ensuring compatibility with most devices and ease of printing. If you require a different format, please contact me to discuss your needs.

I am open to sharing my plans for commercial use, I only ask two things:

  1. That you get in touch and let me know that you plan to use them commercially — I'd love to know more about you, your business and where you are.
  2. You purchase the plans via the online store for each unit that you sell.

Looking forward to hearing from you!

While I don't offer step-by-step support, I'm happy to answer specific questions you may have during your build. Feel free to reach out with your queries.

These plans are best suited for intermediate builders or those with some prior DIY, trade, or construction experience. They’re detailed and thoughtfully laid out, but they do assume a basic understanding of tools, materials, and build processes.

If you're just starting out, you're still welcome to purchase — just know that you may need to do a bit of extra research or enlist help from someone with experience.

All plans are in millimetres (mm). Some plans have also been converted into inches too. The units of measurement a plan comes are stated on each plan. Get in touch if there's a plan you're after not in your preferred units.
