Mercedes Sprinter LWB 170 Camper Plans (Right Hand Drive)

Regular price $175.00 NZD
Shipping calculated at checkout.

Transform your Mercedes Sprinter Long Wheel Base 170 (2006 - 2017) into a functional and comfortable camper with these detailed conversion plans and CNC files.

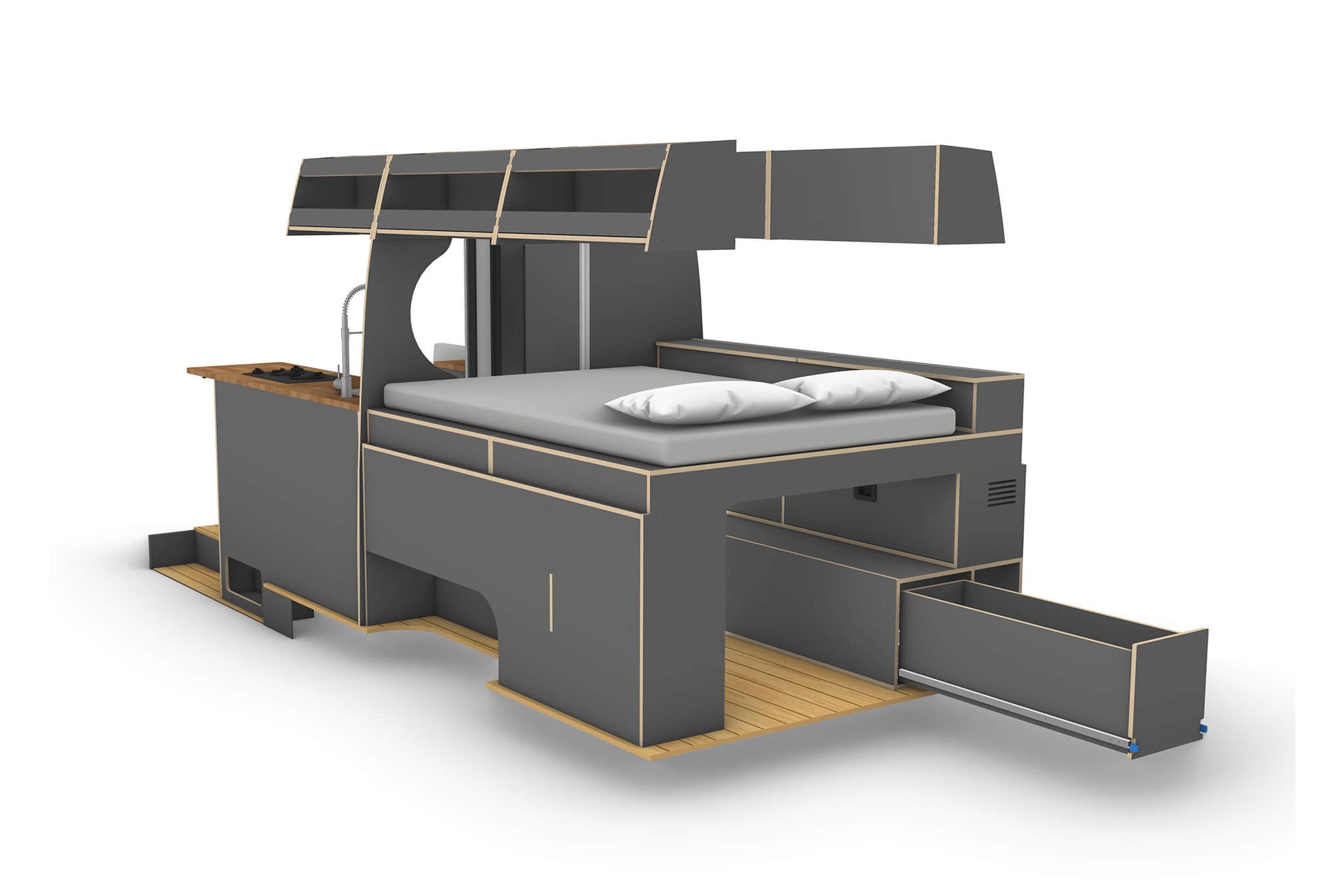

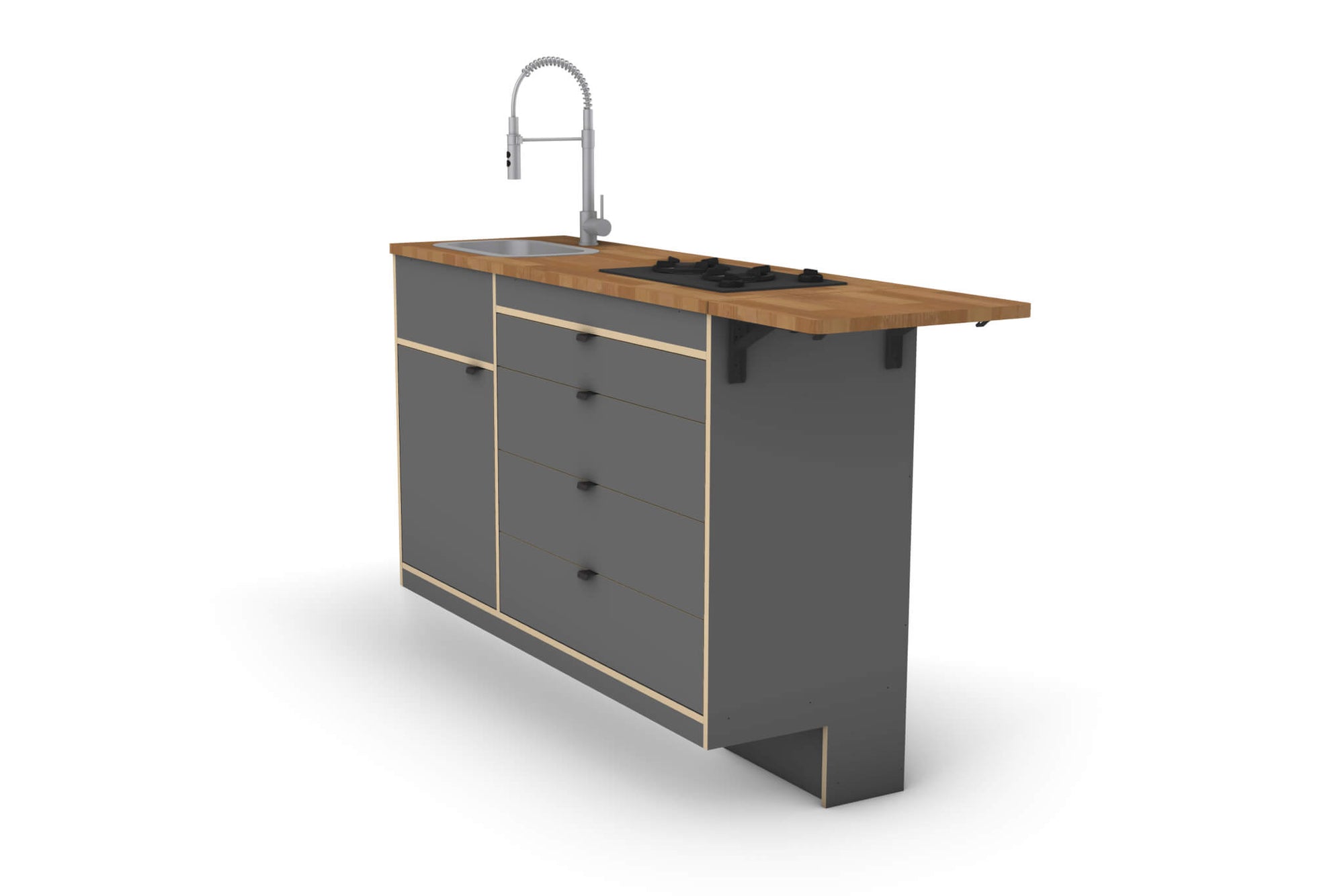

Designed for intermediate to experienced builders, the layout maximises space with smart storage solutions, integrated kitchen and bathroom units, and a lightweight construction.

Your download includes CNC-ready DXF files, 3D CAD model, assembly drawings, and a full hardware and materials overview.

  • Skill Level:
    • Intermediate
  • Pages:

    52-Page PDF

What's Included:

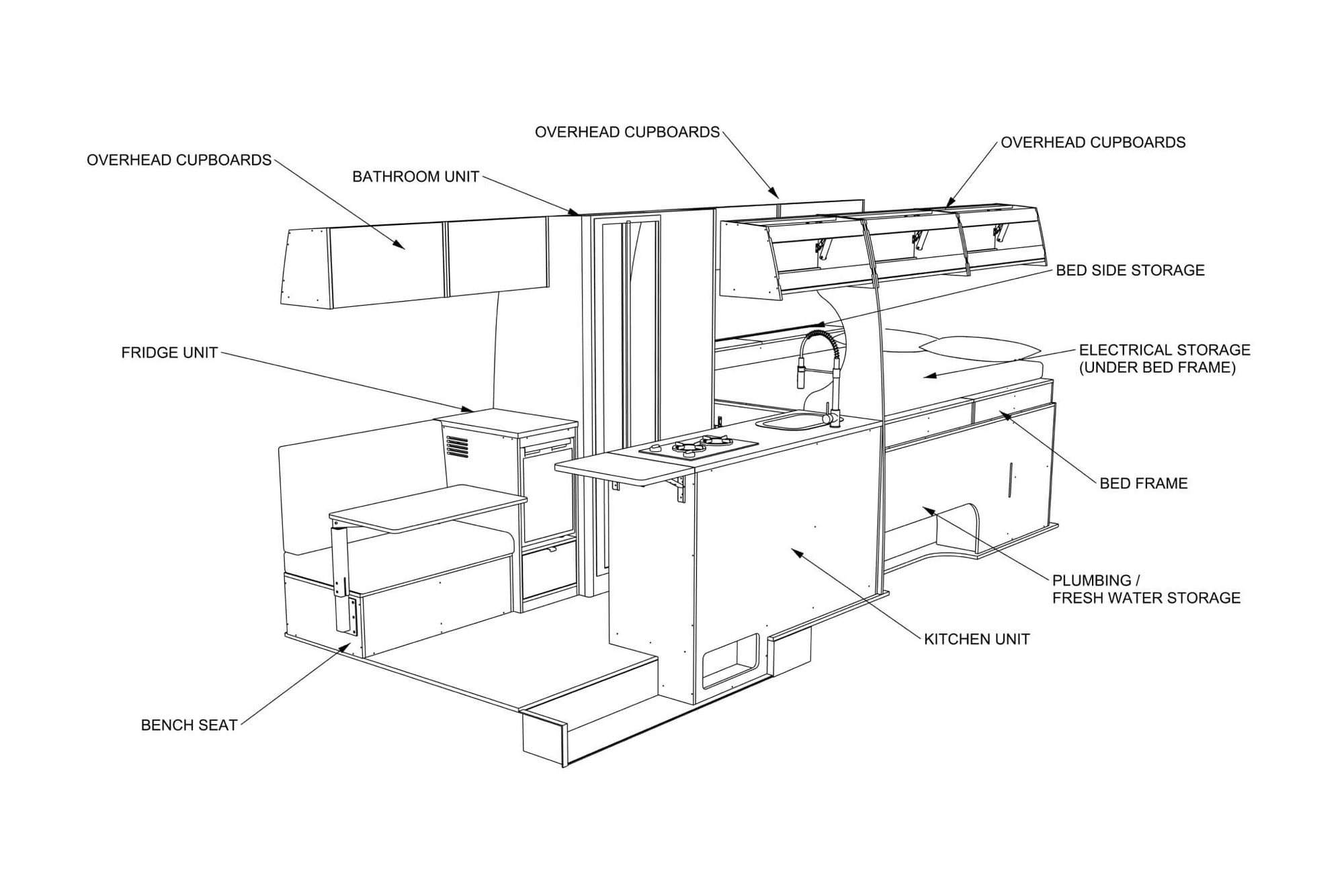

  • Clear and concise assembly drawings
  • Labelled DXF files for CNC machining

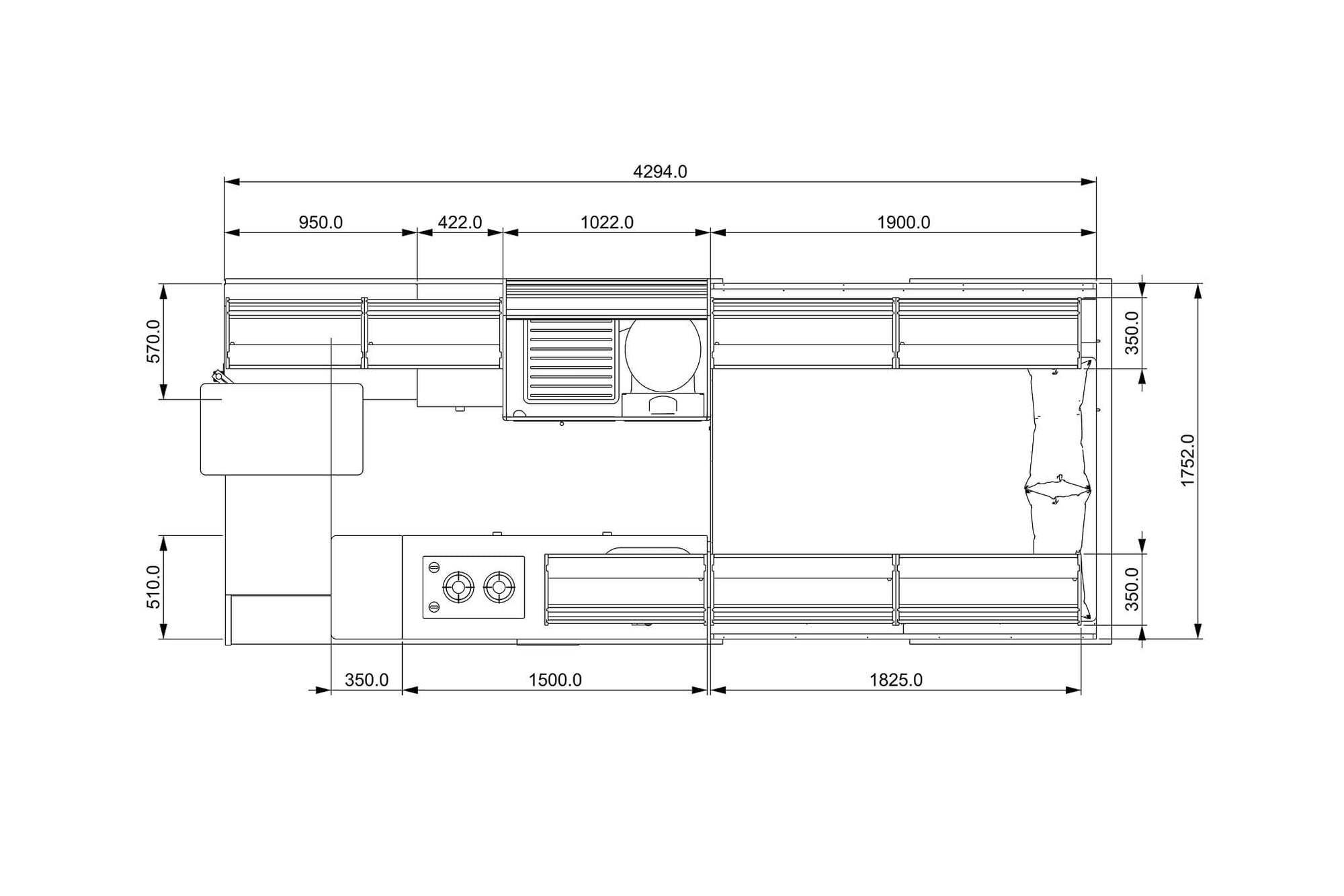

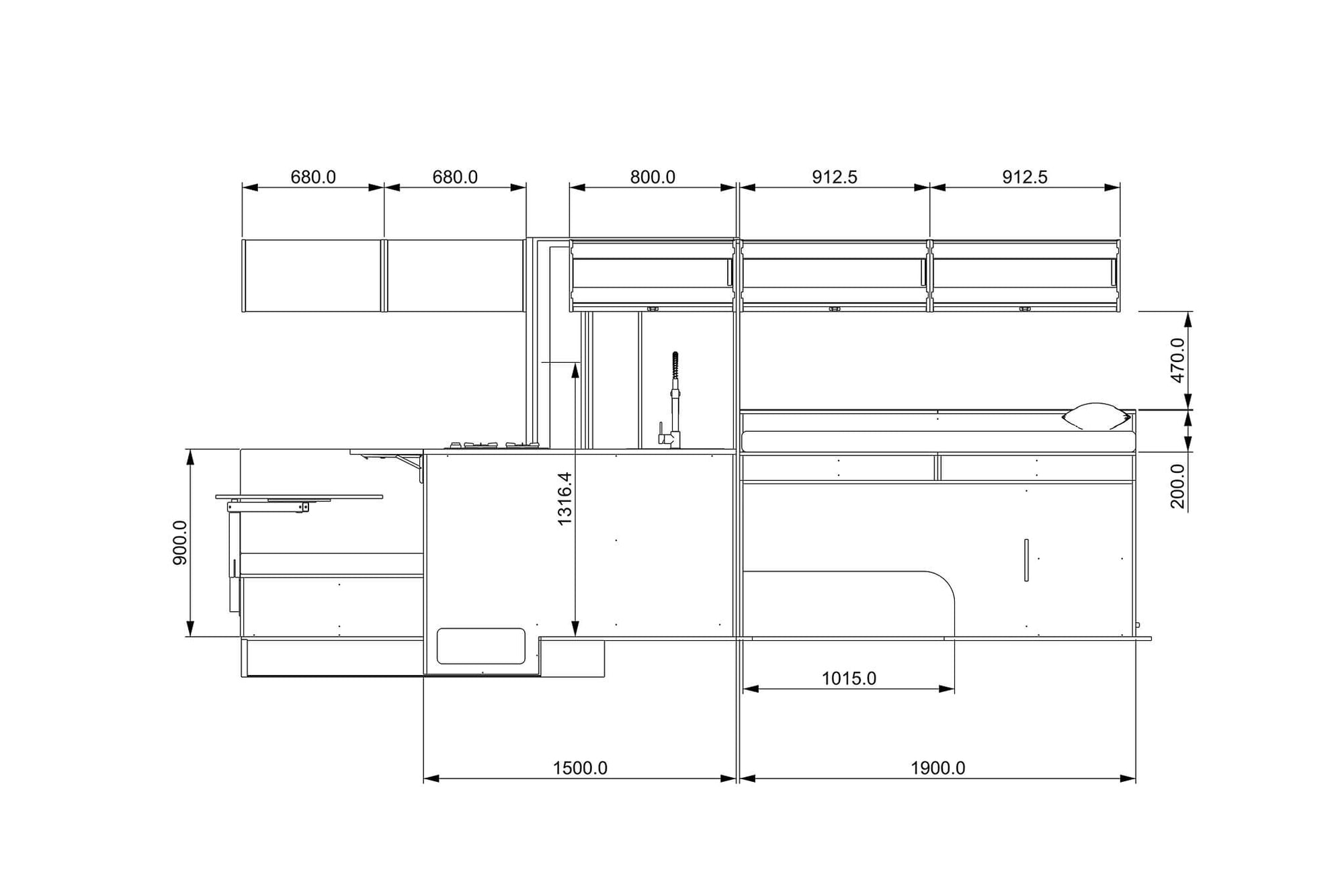

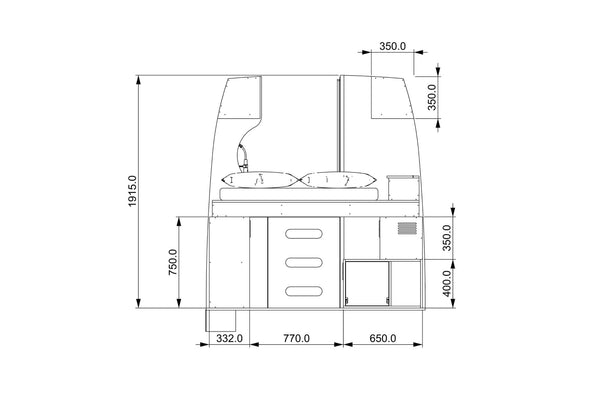

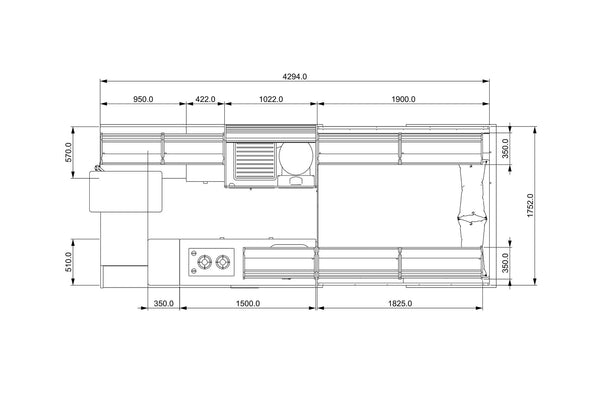

  • Dimensioned drawings
  • 3D CAD Model (.STEP Format)
  • Overview of Hardware, Materials and Appliances required (Spreadsheet)
  • 52 pages in PDF in total

What's Required:
  • Access to a CNC Router
  • Constructed from 20 sheets of 16mm HPL Plywood
  • Blum hardware integrated throughout
  • Basic hand tools such as drill and driver for assembling

Additional Information:
  • All plans are presented in English with measurements in millimeters (metric).
  • Designed to fit Sprinter LWB 170 (2006 - 2017)
  • The CAD model is available in STEP format.
  • Due to the varying nature of van cladding, the exact fit of overhead cupboards and bathroom sides cannot be guaranteed.
  • The "Shoebox" built into the kitchen unit is influenced by floor thickness so please take this into consideration. Design currently allows for 180mm step height.
  • I recommend printing the provided 1:1 A4 template in the package to verify the profile against your vehicle.
  • Plans do not include electrical or plumbing diagrams throughout the vehicle however allowance has been made within the design to integrate these items.
  • It is advisable to seal the edges of plywood before installation.
  • Overview of materials, hardware, and appliances included
  • Ensure units are securely fastened to the van.
  • This van fit out is for intermediate to experienced builders.
  • Designed for right hand drive version (check out my other listing for left hand drive)

Please get in touch if you have any questions before committing to purchasing. I can send you a basic version of the plans along with a template to cross-check against your vehicle if needed.

Important:

This is a digital download. The product shown is a rendering not a physical product.

All digital plans provided by CamMade Studio are intended for personal use only.
