Universal Camper Kitchen Module Plans (Right-Side Opening)

Regular price $30.00 NZD
Shipping calculated at checkout.

This detailed PDF guide provides step-by-step instructions, diagrams, and a full cut list to help you build a functional camper kitchen‚ perfect for both intermediate and experienced DIYers.

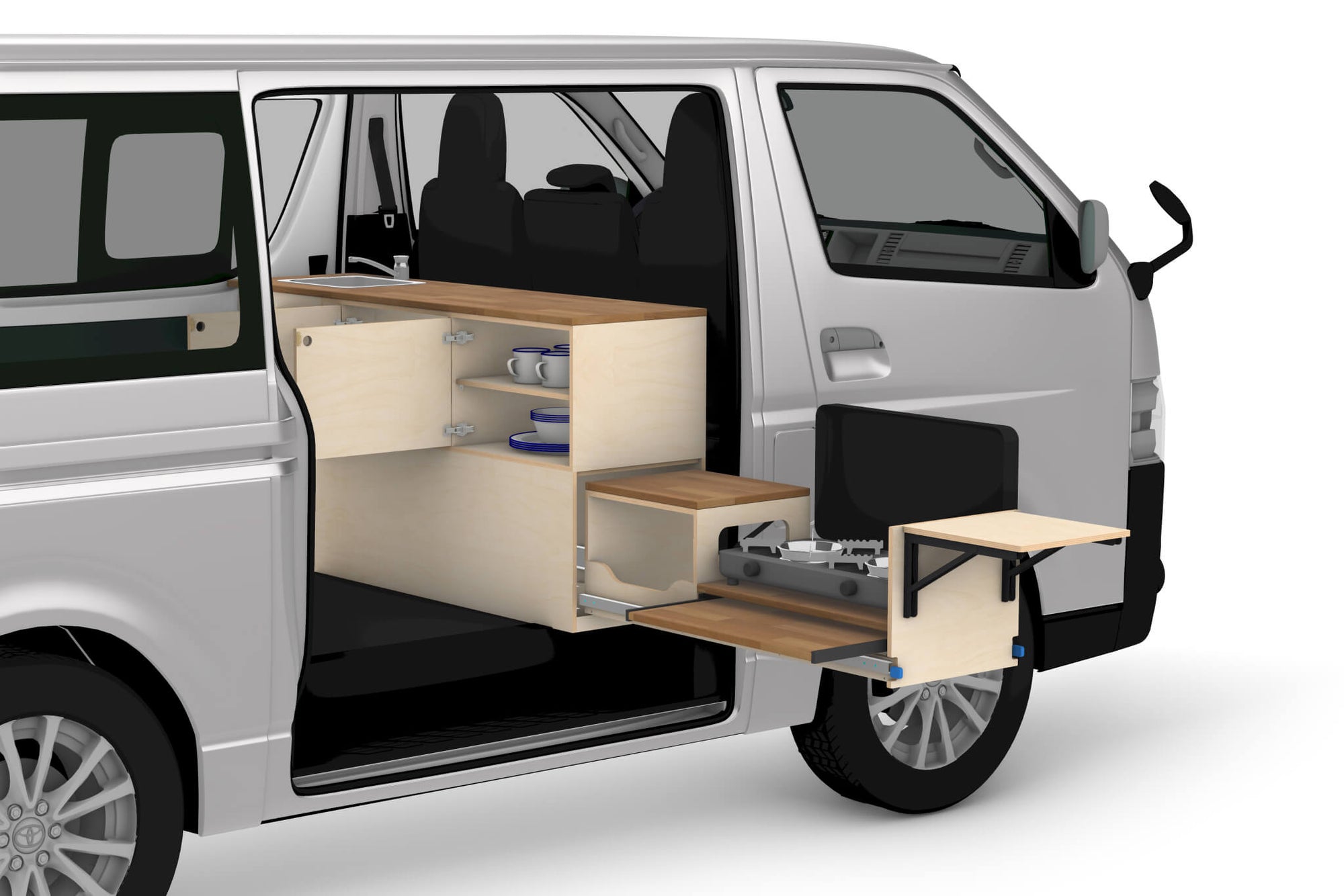

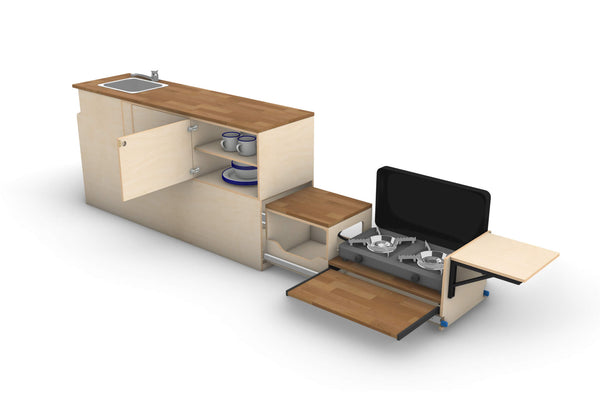

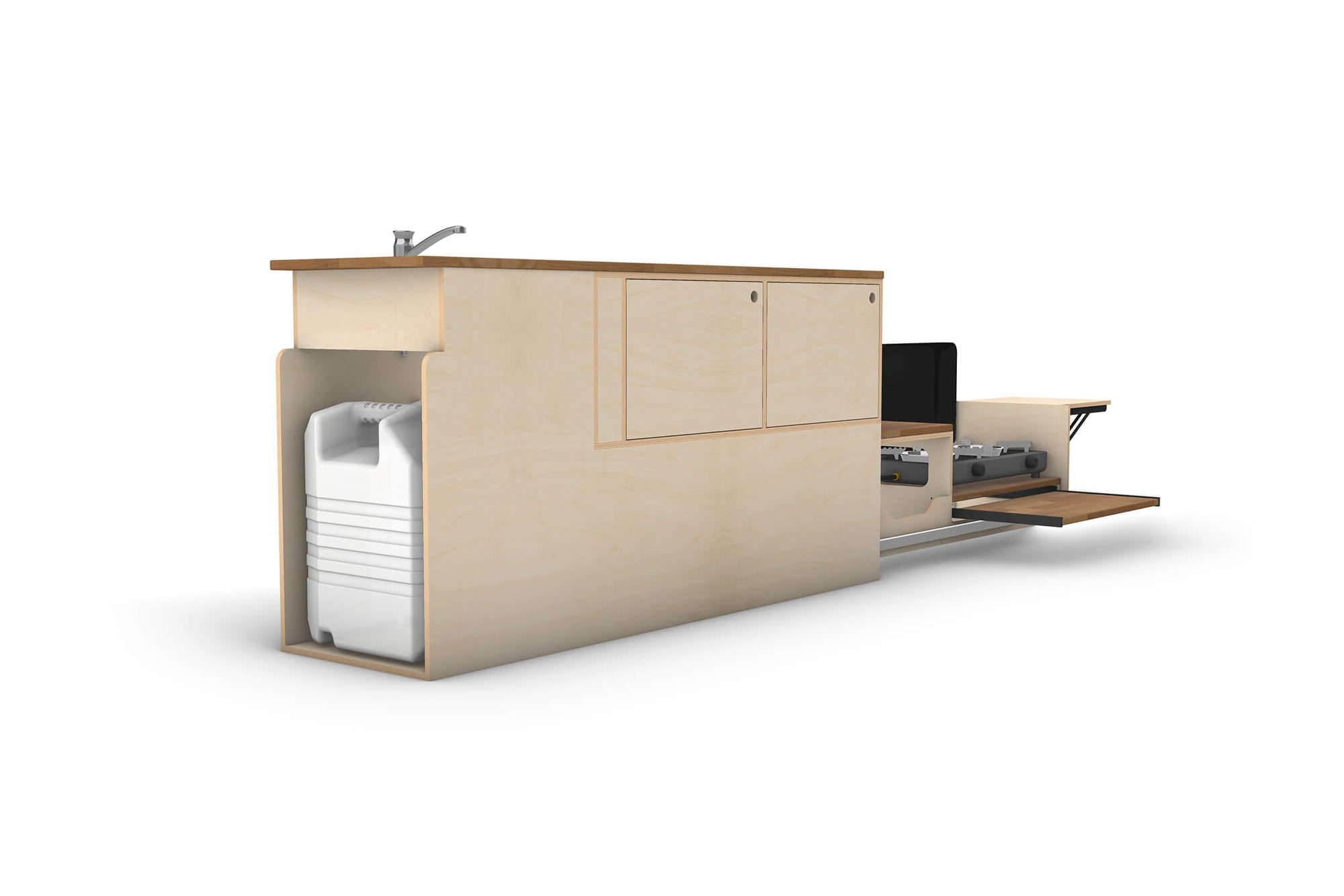

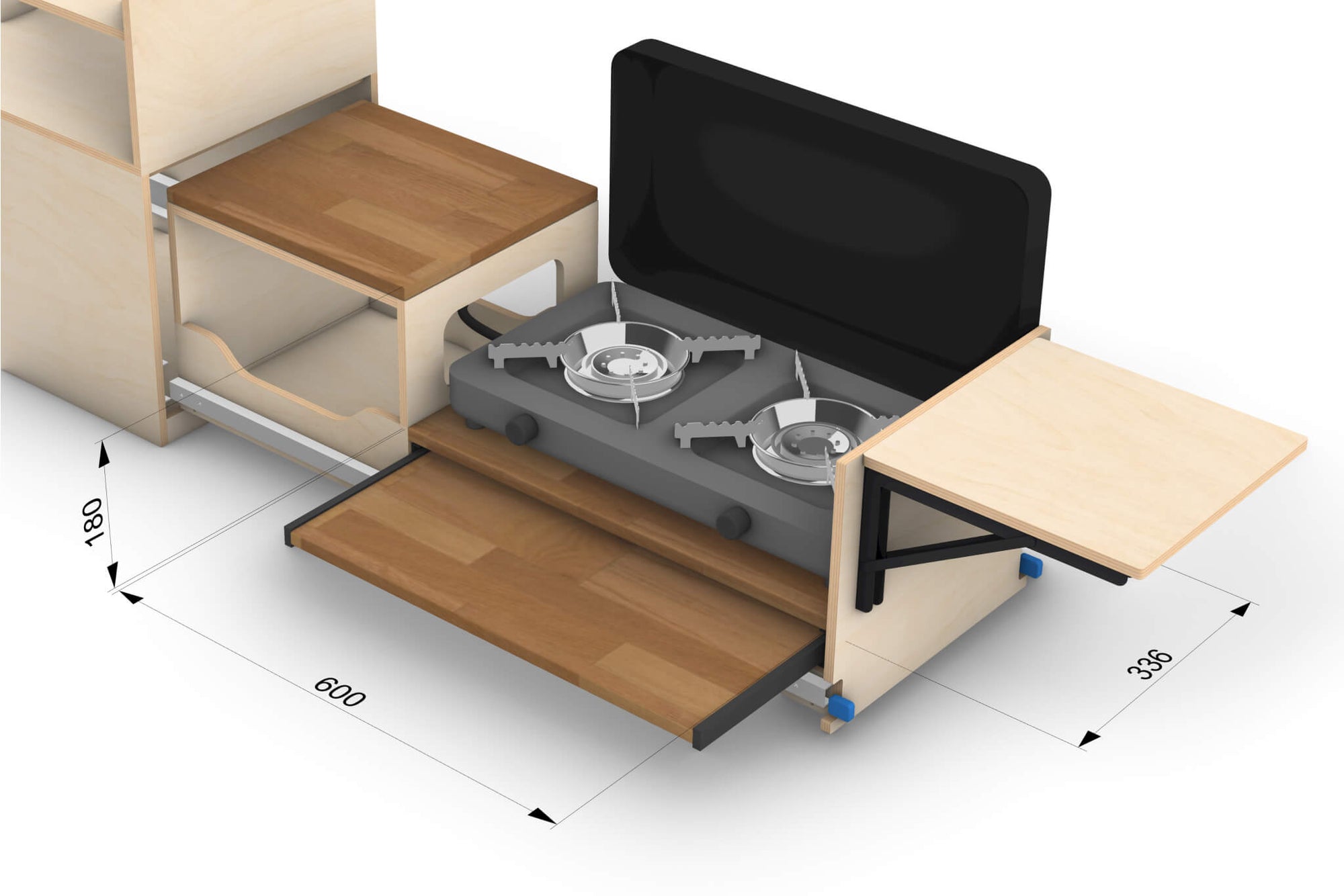

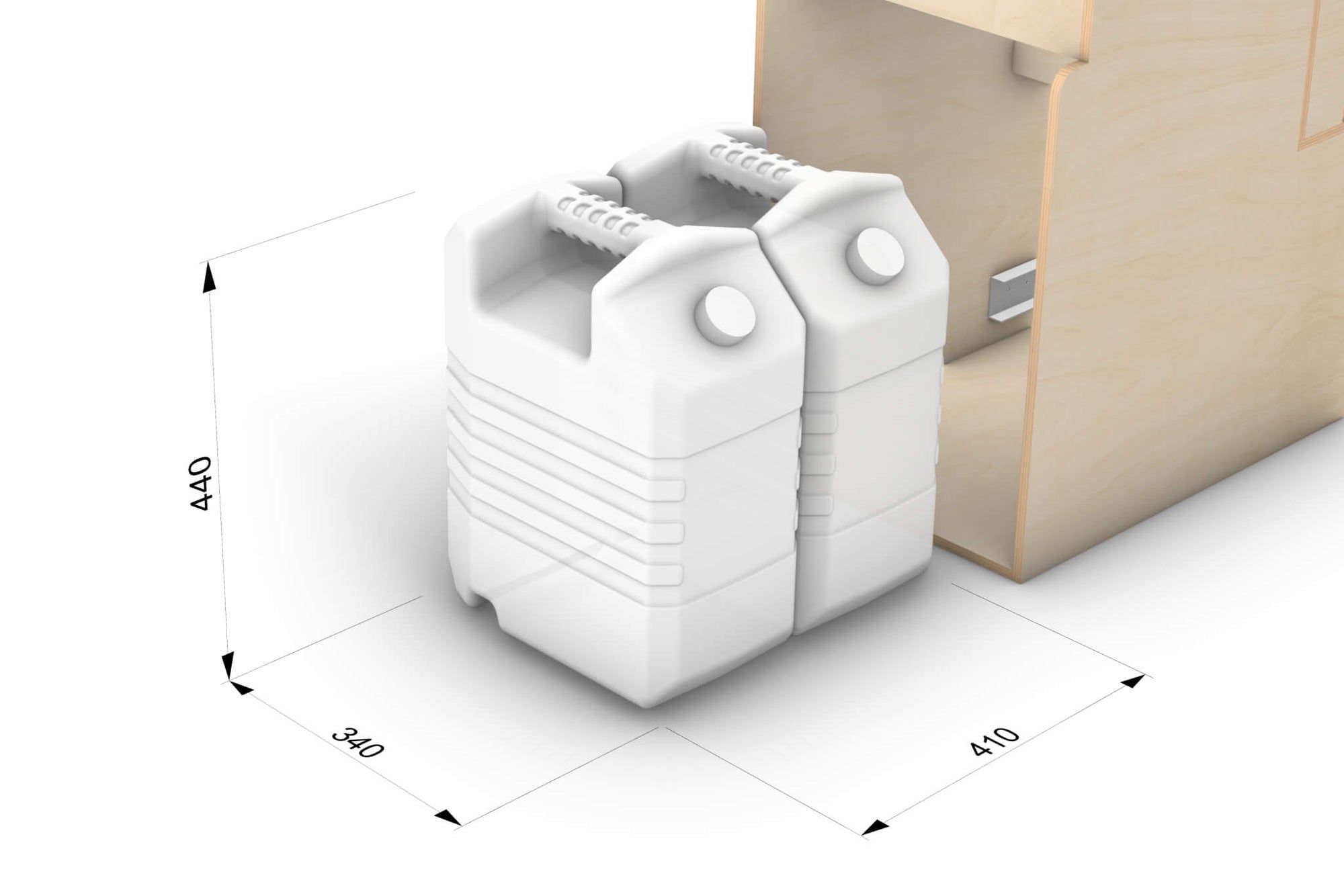

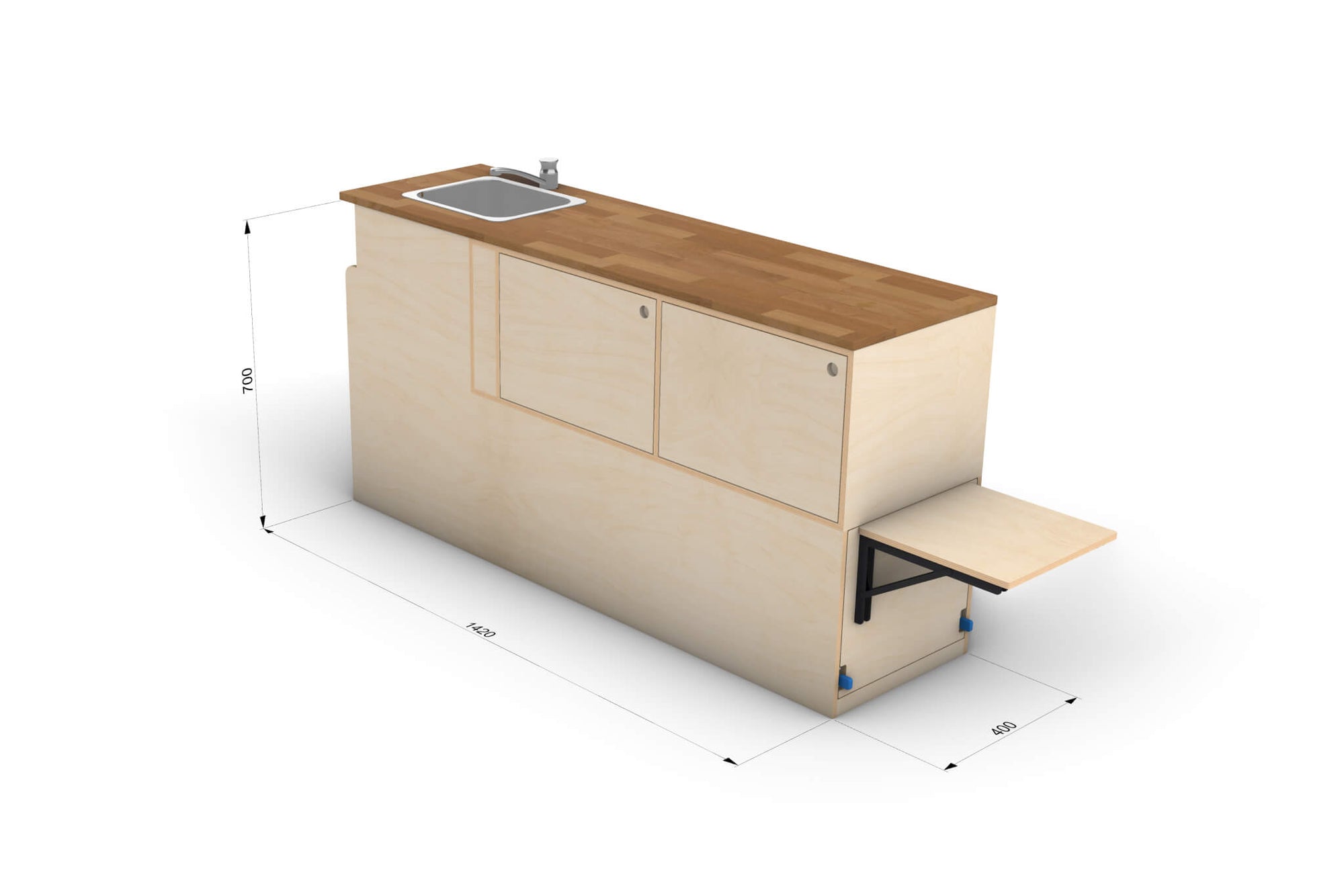

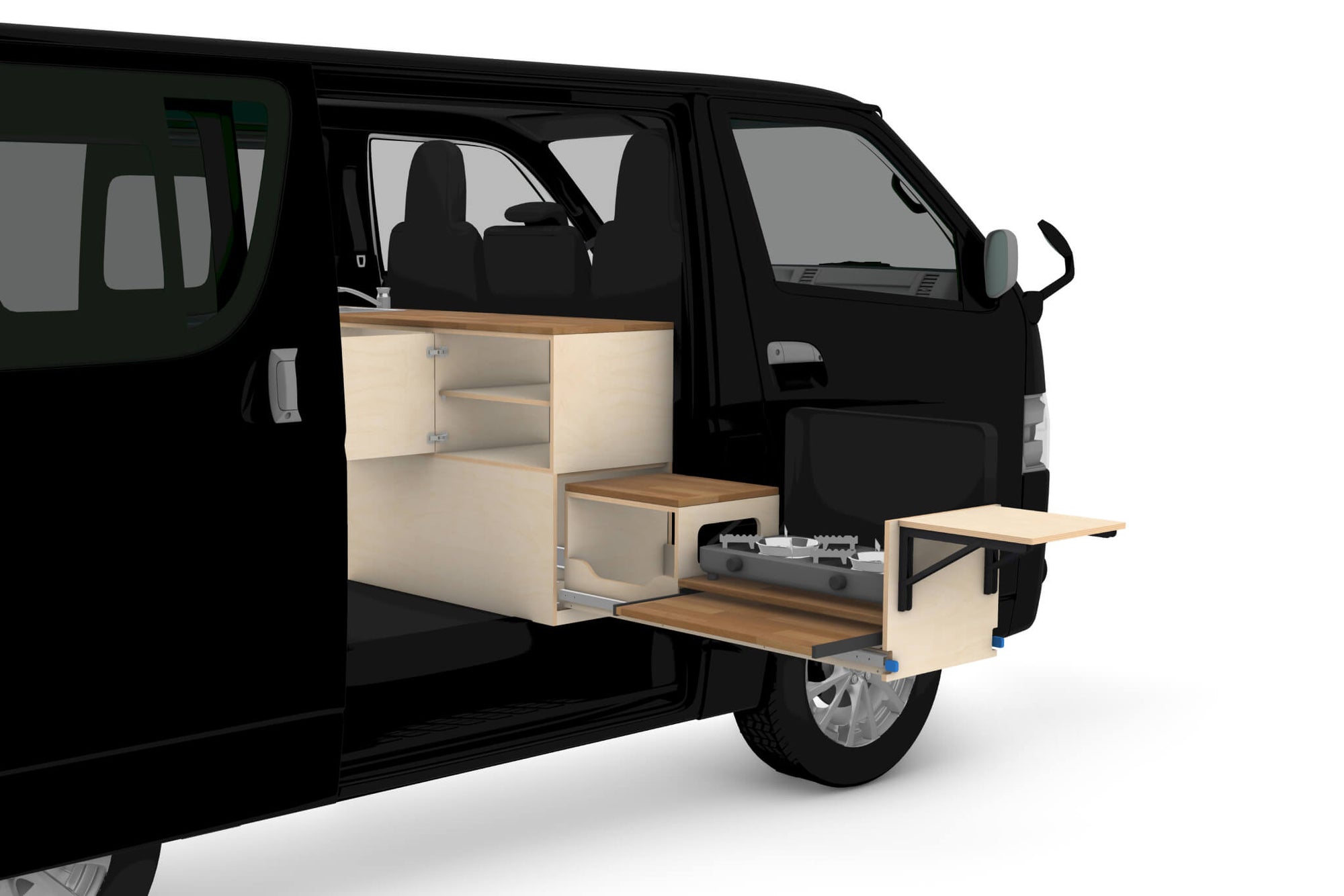

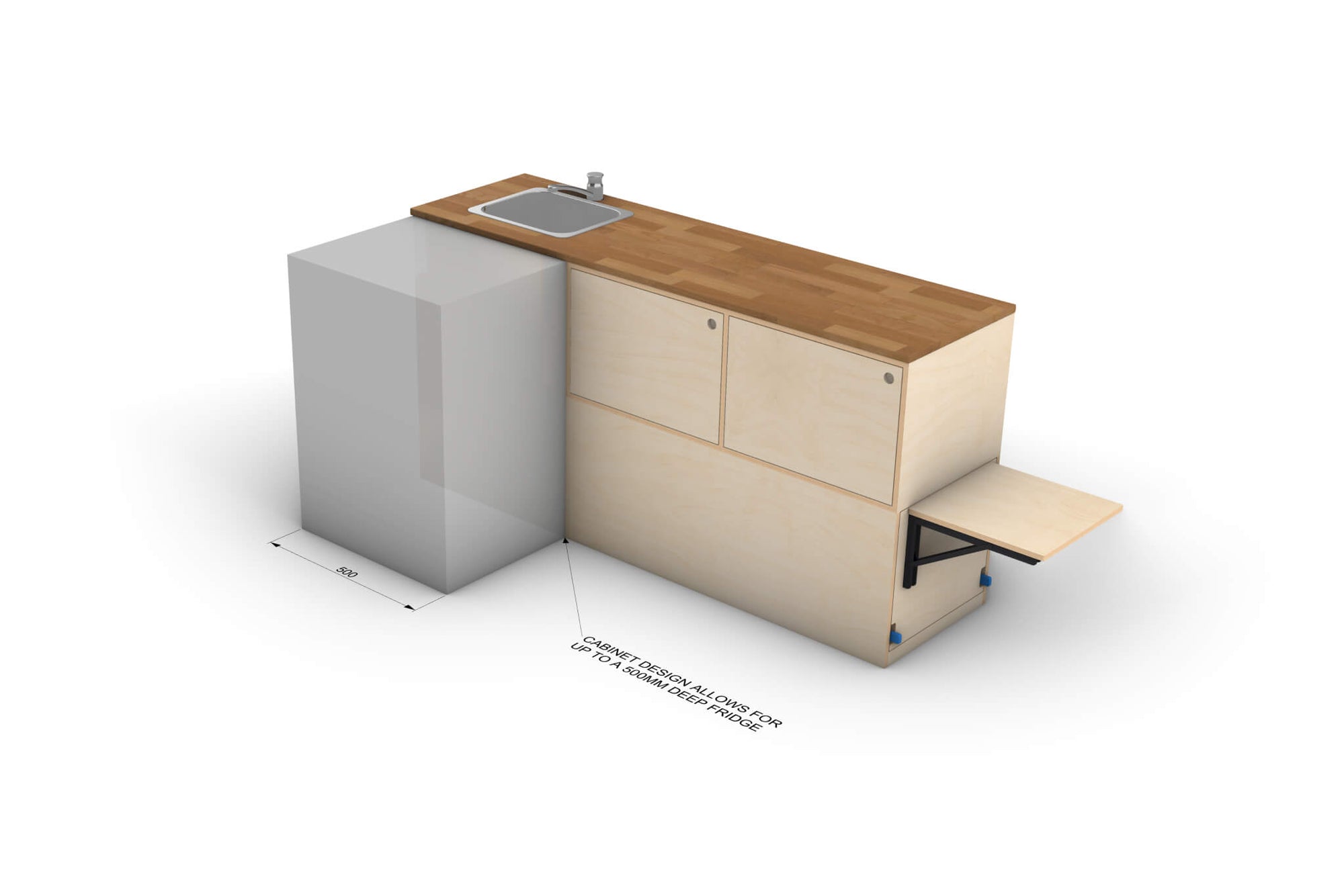

The design includes a pull-out cooking drawer with storage, a fold-up end table, and space for two 23L jerry cans.

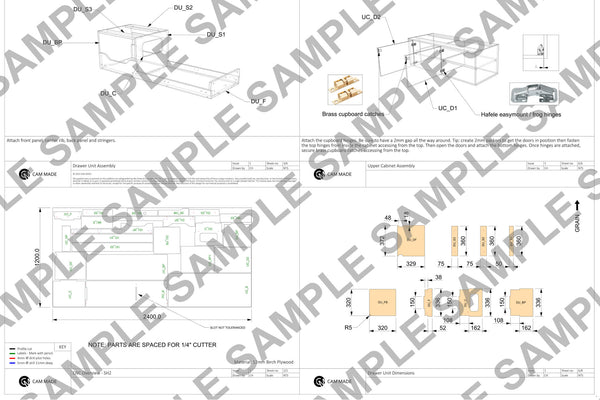

Your digital download includes 36 pages of plans with manual cutting dimensions, CNC-ready DXF files, hardware overview, and a CAD model in STEP format.

  • Skill Level:
    • Intermediate
  • Pages:

    53-Page PDF

What's Included:
  • Clear and concise assembly drawings
  • Dimensioned parts for manual cutting
  • Labelled DXF files for CNC machining
  • Dimensioned drawings
  • Overview of Hardware required
  • 36 pages in PDF in total

What's Required:
  • 2  x 12mm Plywood sheets required
  • Basic hand tools such as drill and driver for assembling
  • Jig saw and circular saw required if manual cutting

Additional Information:
  • All plans are in English and the units are in mm (metric)

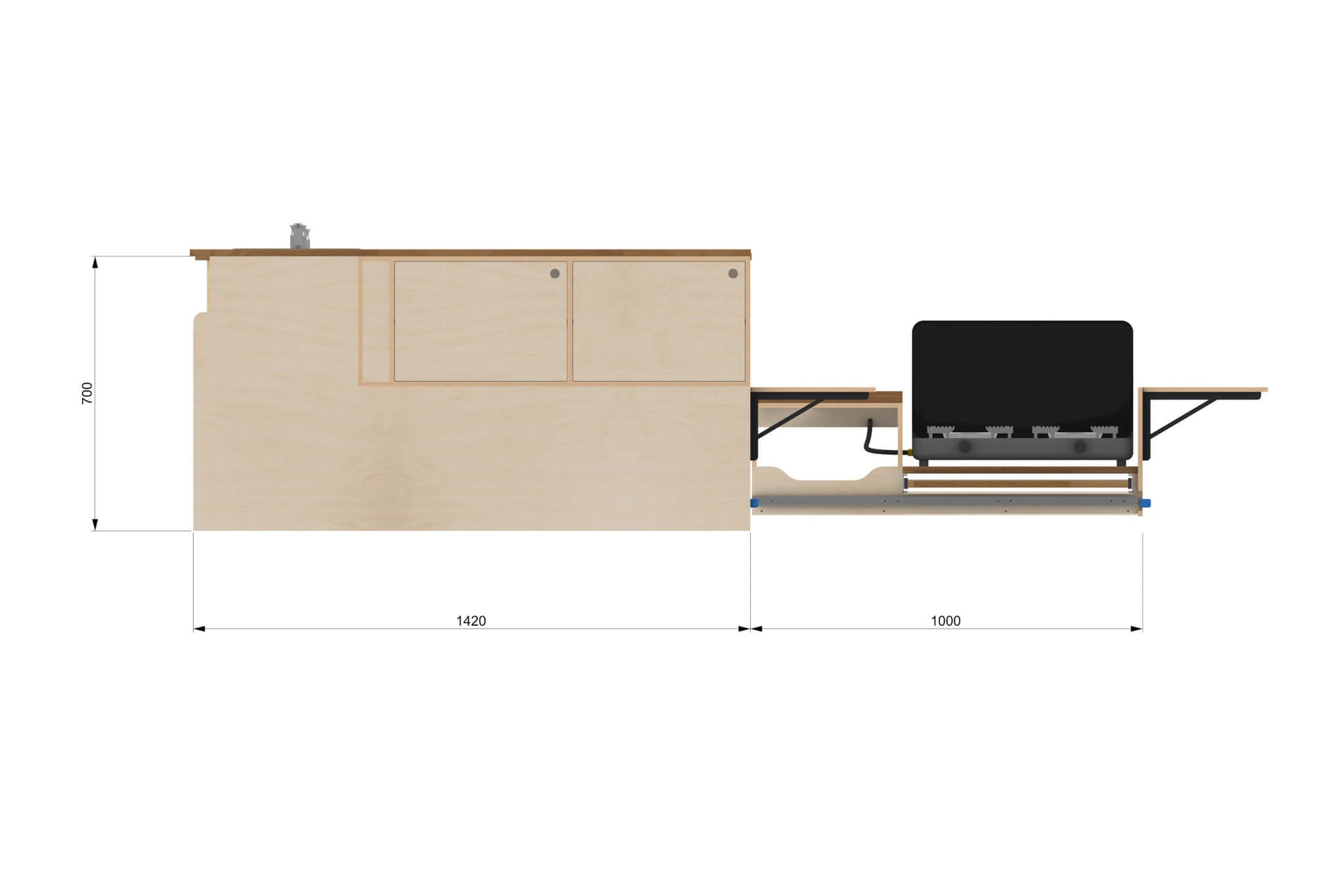

  • Overall footprint of unit = 1420mm wide x 400mm deep x 700mm high
  • Drawer runner extension = 1000mm
  • Plywood sheet size = 1200mm x 2400mm
  • It is recommended that the plywood is sanded and sealed before installation
  • Unit will need to be secured to van
  • CAD model is in STEP. format however I can export most required formats upon request
  • This design opens on the right hand side (check my other listing for left hand option)

Important:

This is a digital download. The product shown is a rendering not a physical product.
