Universal Rear-Opening Camper Plans V2

Regular price $35.00 NZD
Shipping calculated at checkout.

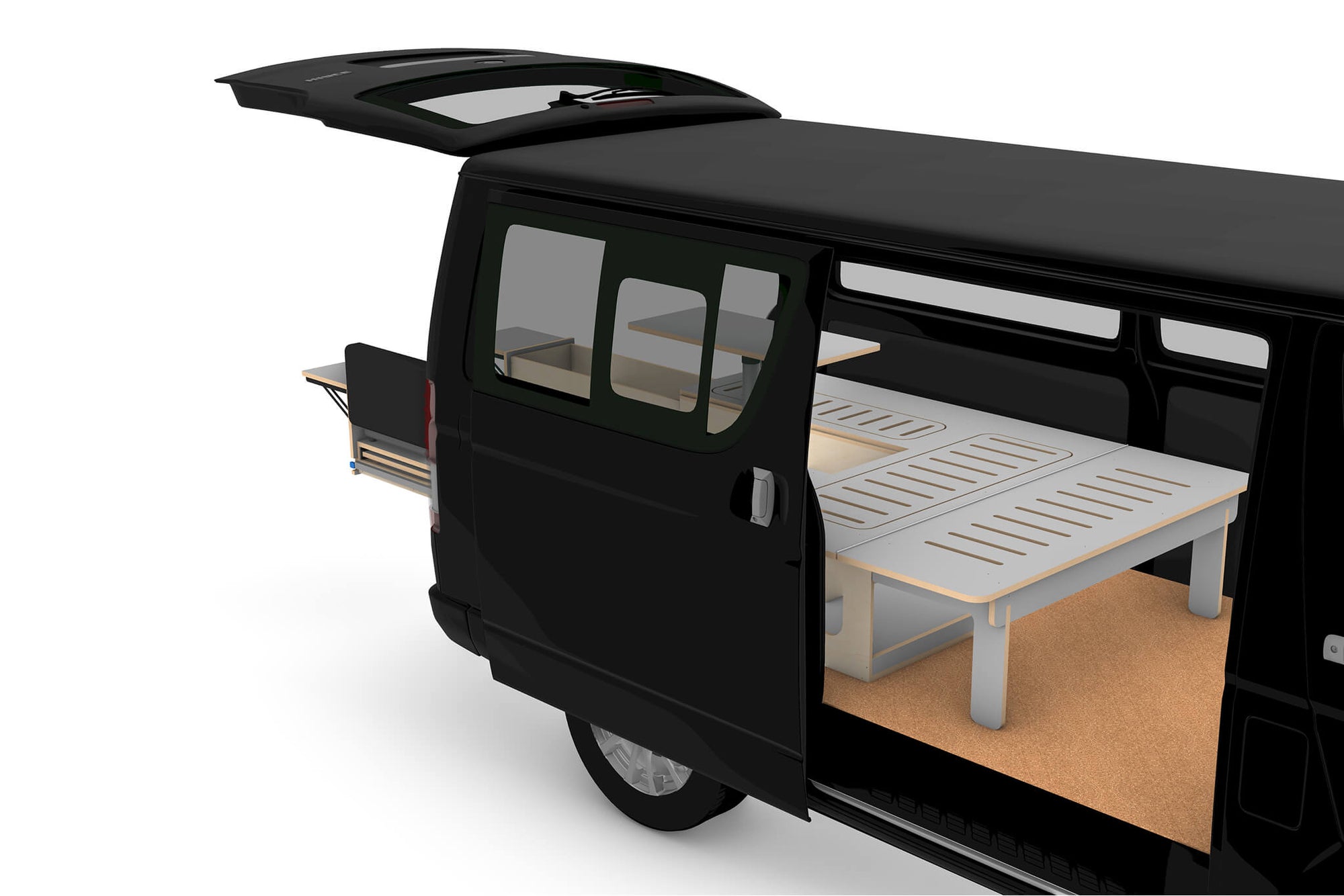

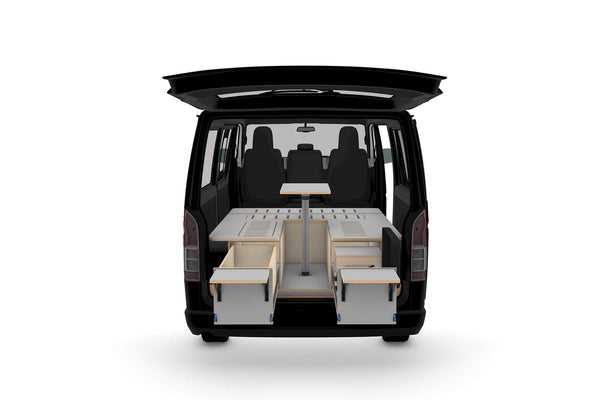

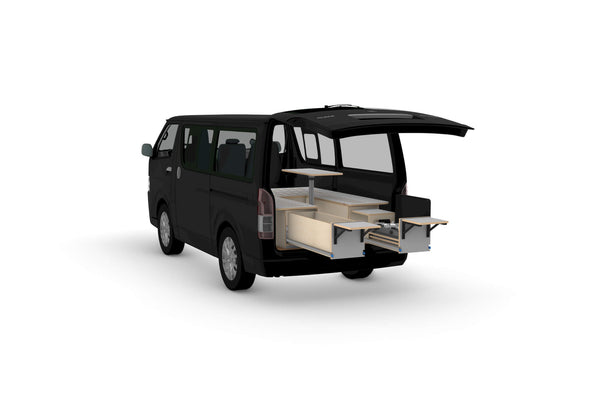

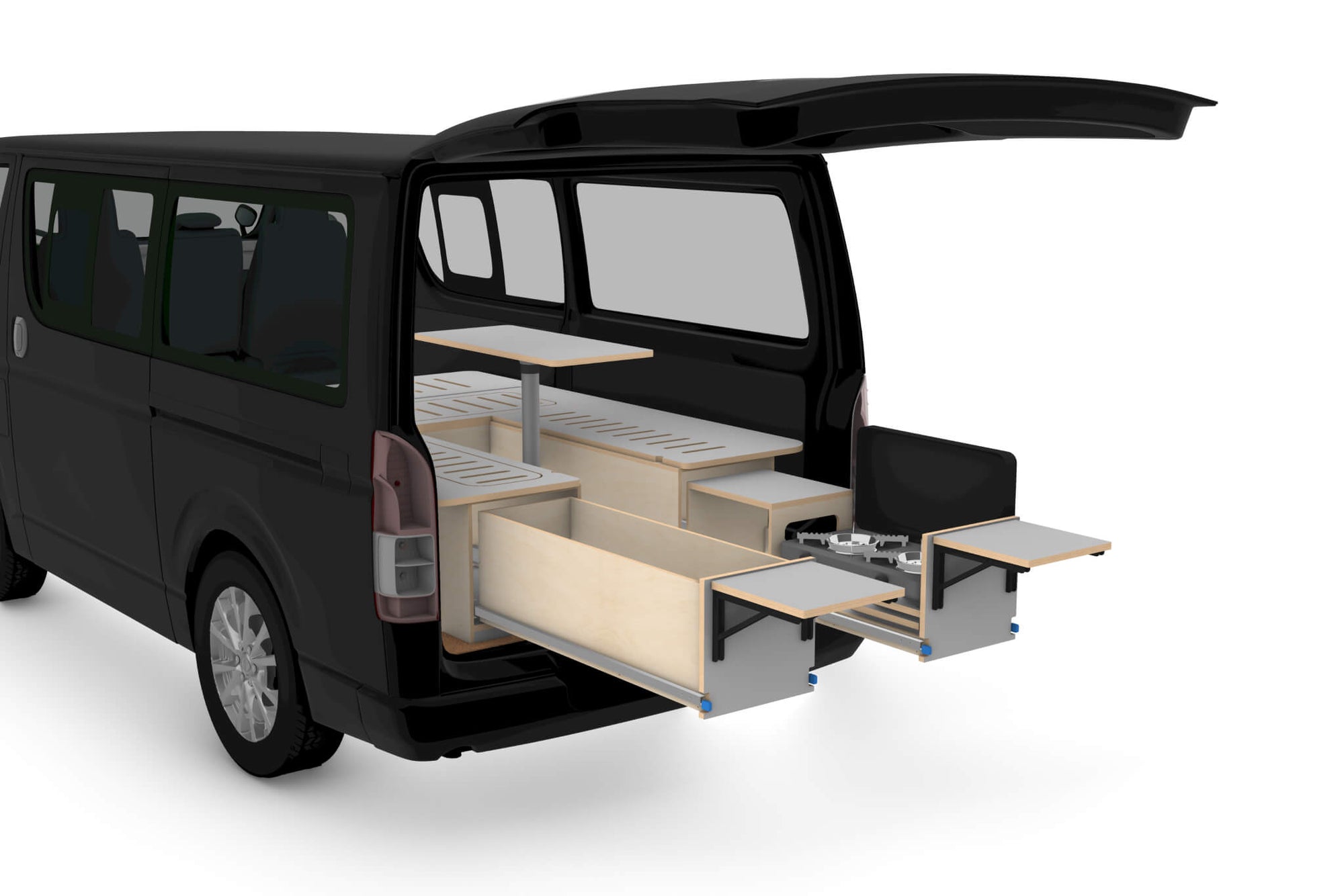

Transform your van into a fully functional camper van with this universal rear-opening conversion plan package, featuring a smart, space-efficient design that fits a wide range of van models.

The 45-page PDF includes step-by-step instructions, dimensioned drawings for both CNC and manual cutting, and a 3D CAD model for customisation.

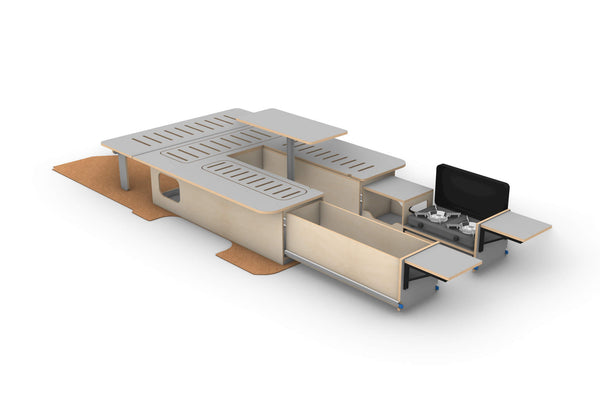

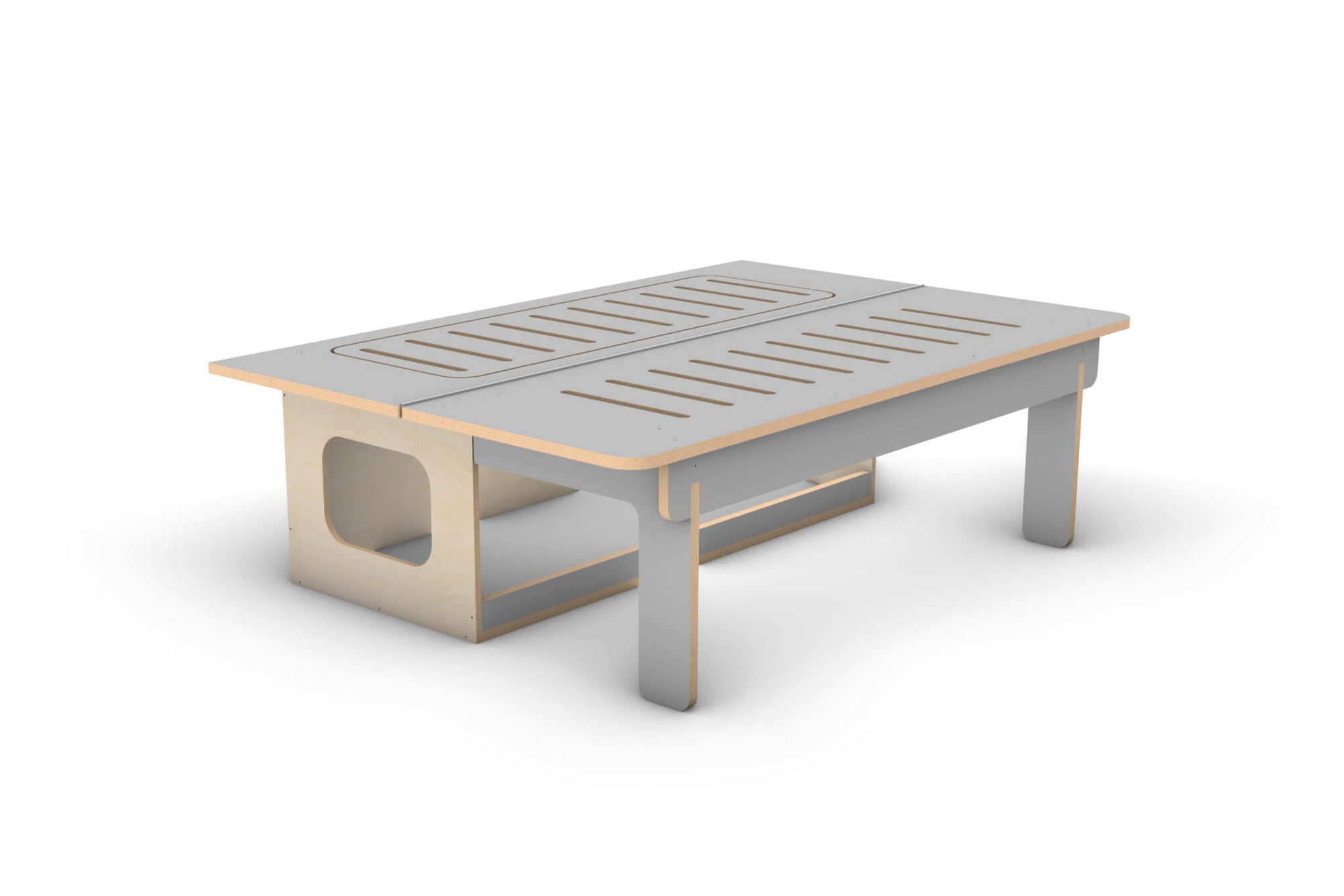

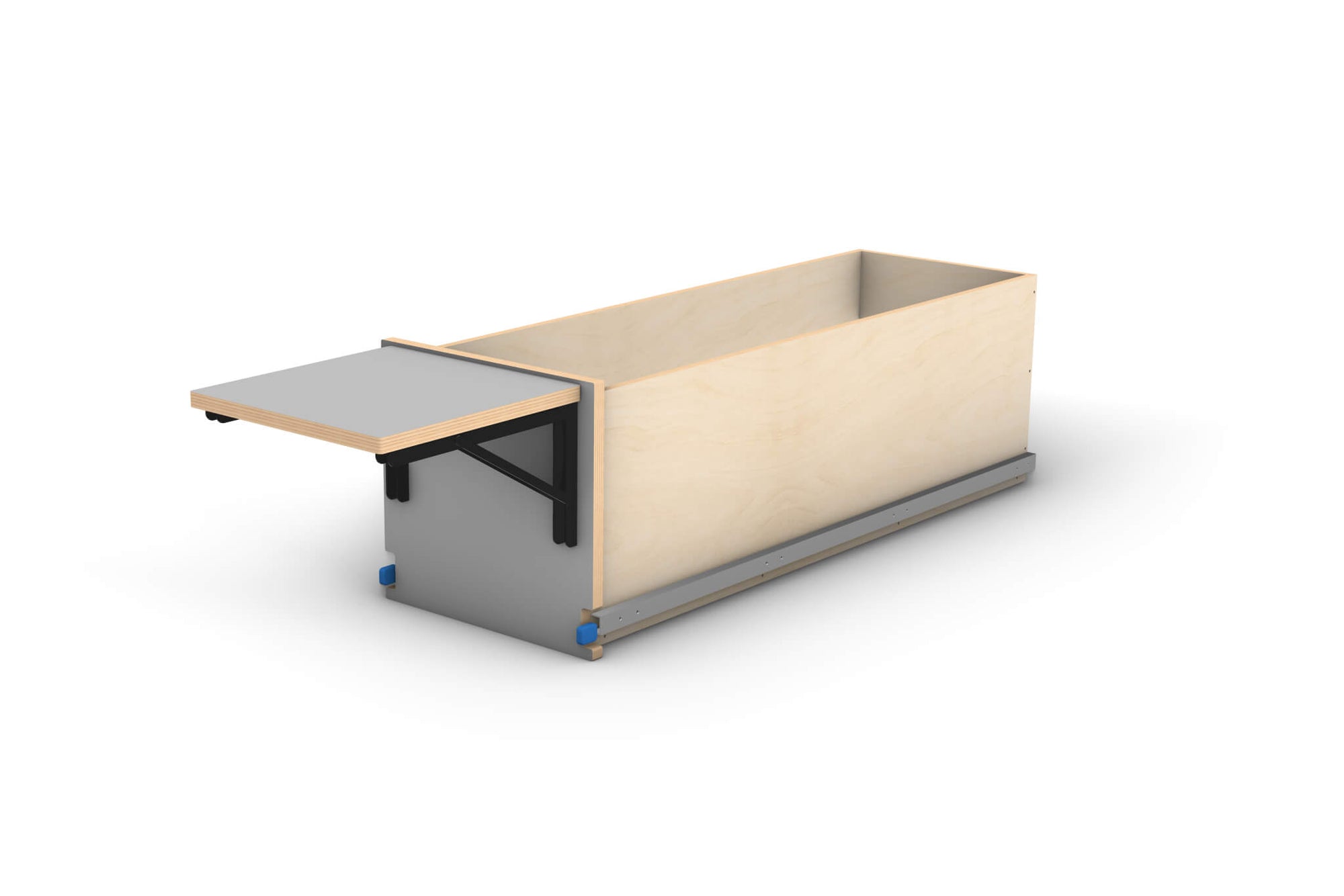

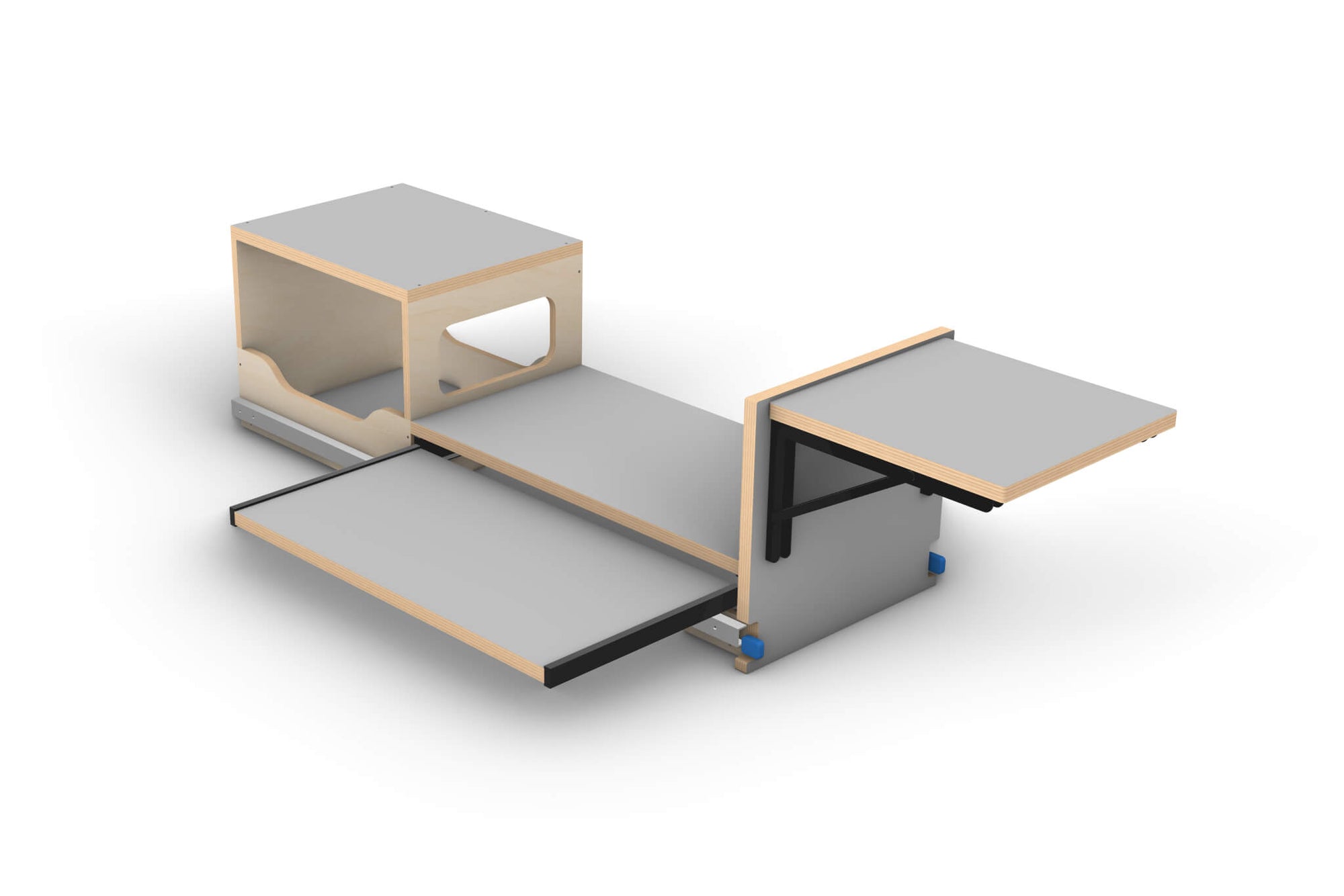

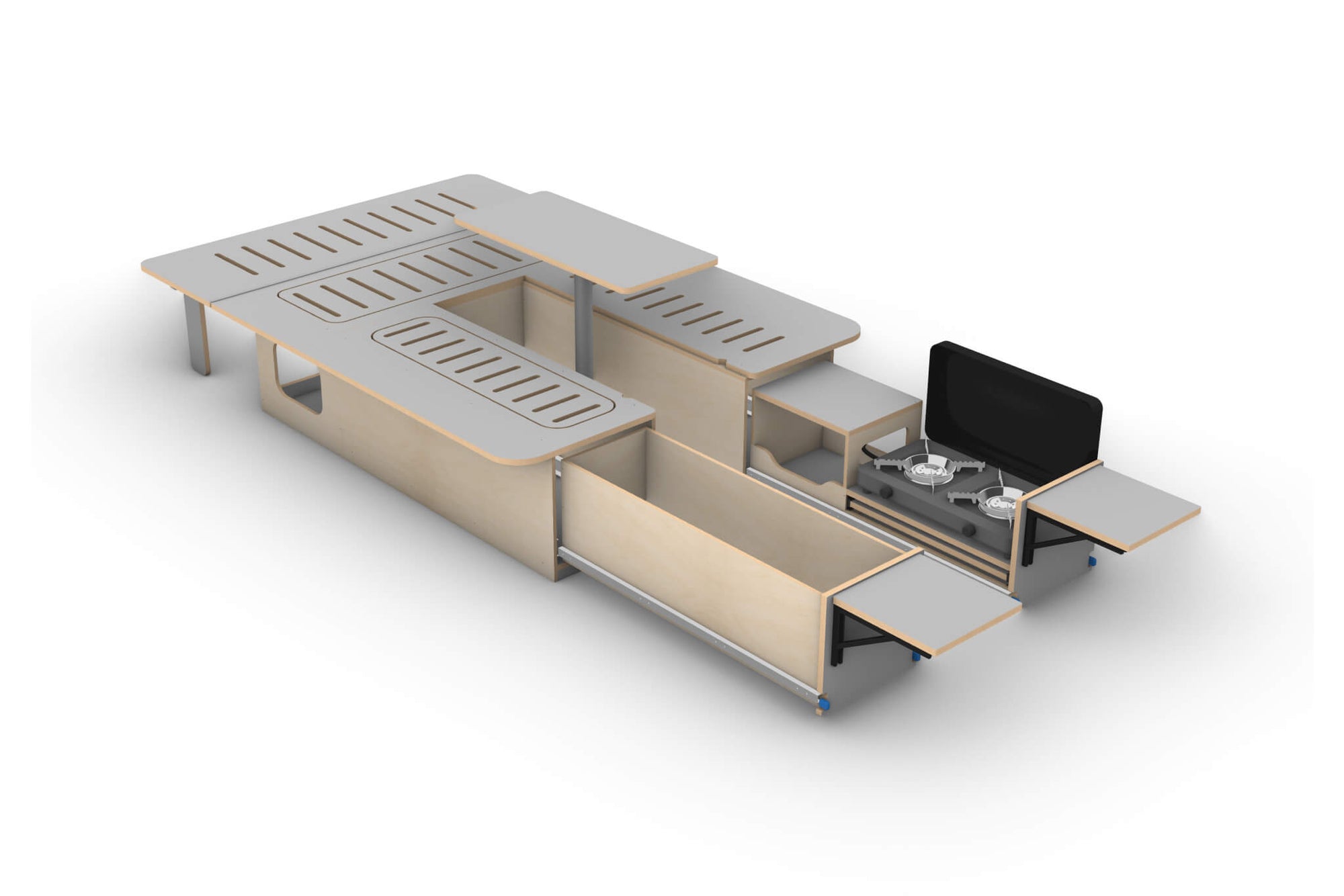

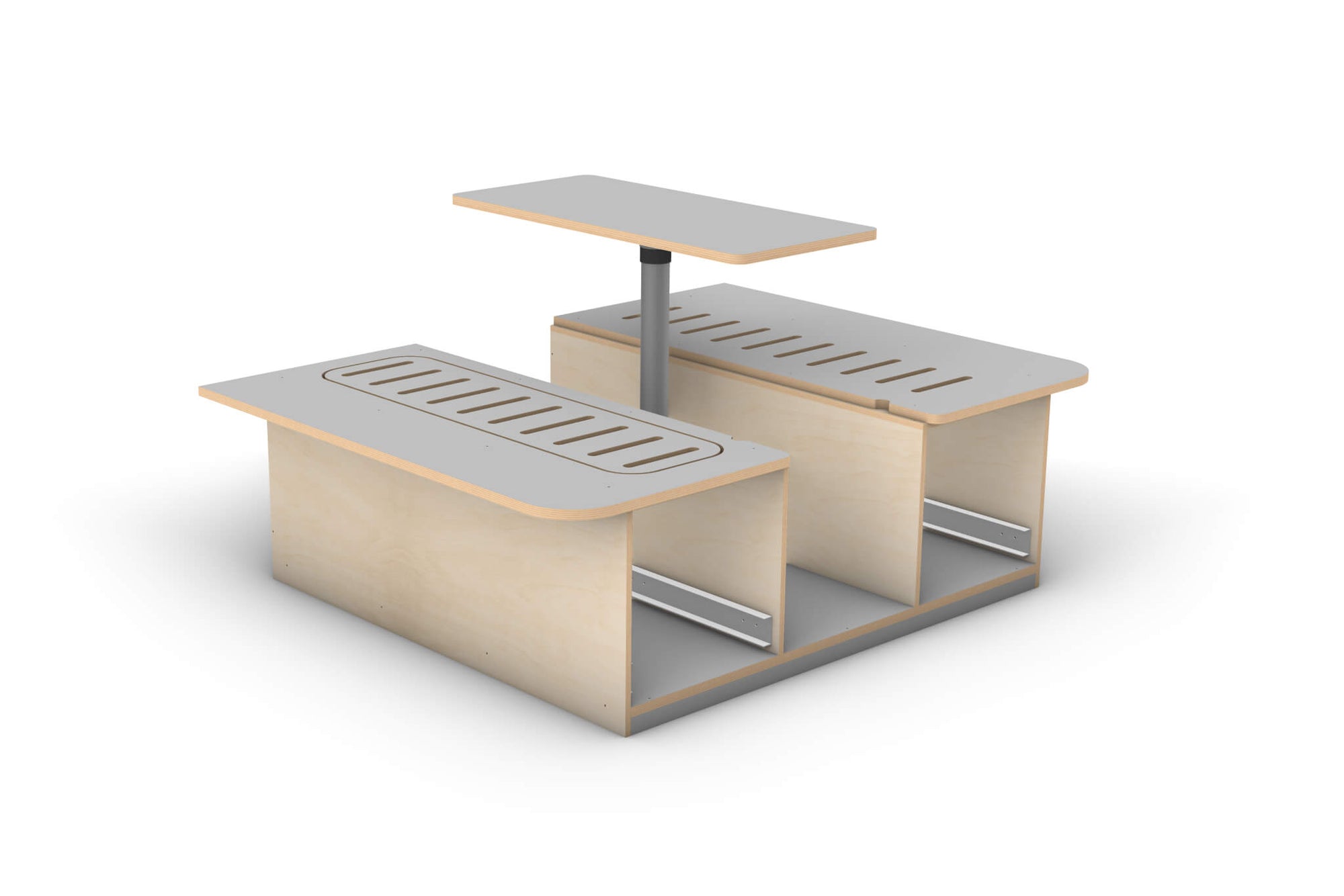

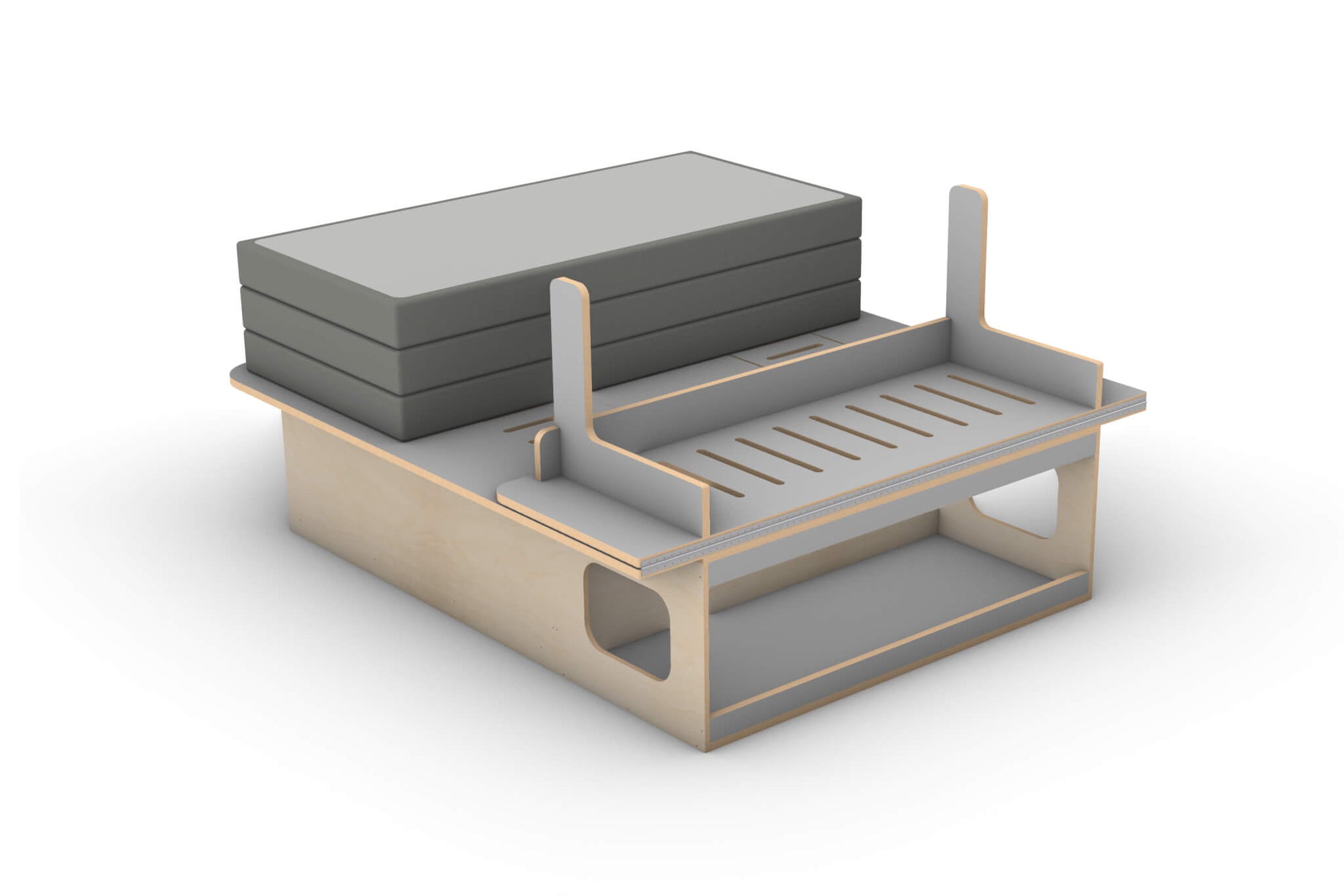

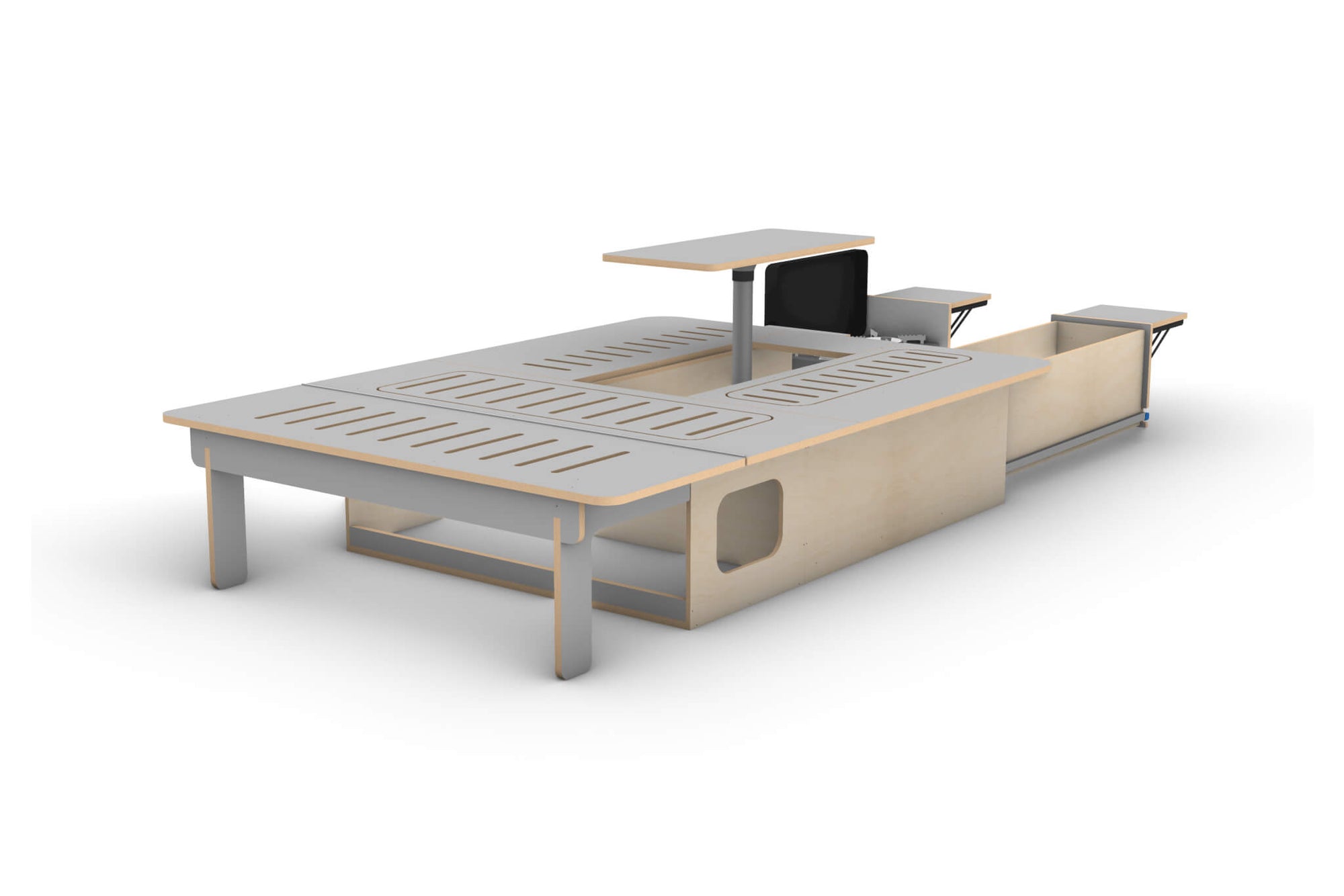

Key features include a fold-out bed, integrated storage, pull-out cooking drawer, and fold-up tables‚ ideal for DIY builders seeking a practical, adaptable setup.

For alternative configurations, check out:

  • Skill Level:
    • Intermediate
  • Pages:

    45-Page PDF

What's Included:
  • Dimensioned parts for manual cutting
  • Clear and concise assembly drawings
  • Labelled DXF files for CNC machining
  • Dimensioned drawings
  • Overview of Hardware required
  • 45 pages in PDF in total
  • 3D model included for making modifications

What's Required:
  • 2 x 12mm Birch Plywood sheets required
  • 3 x 18mm Birch Plywood or HPL Ply required
  • Basic hand tools such as drill and driver for assembling
  • Jig saw and circular saw required if manual cutting

Additional Information:
  • All plans are in English and the units are in mm (metric)

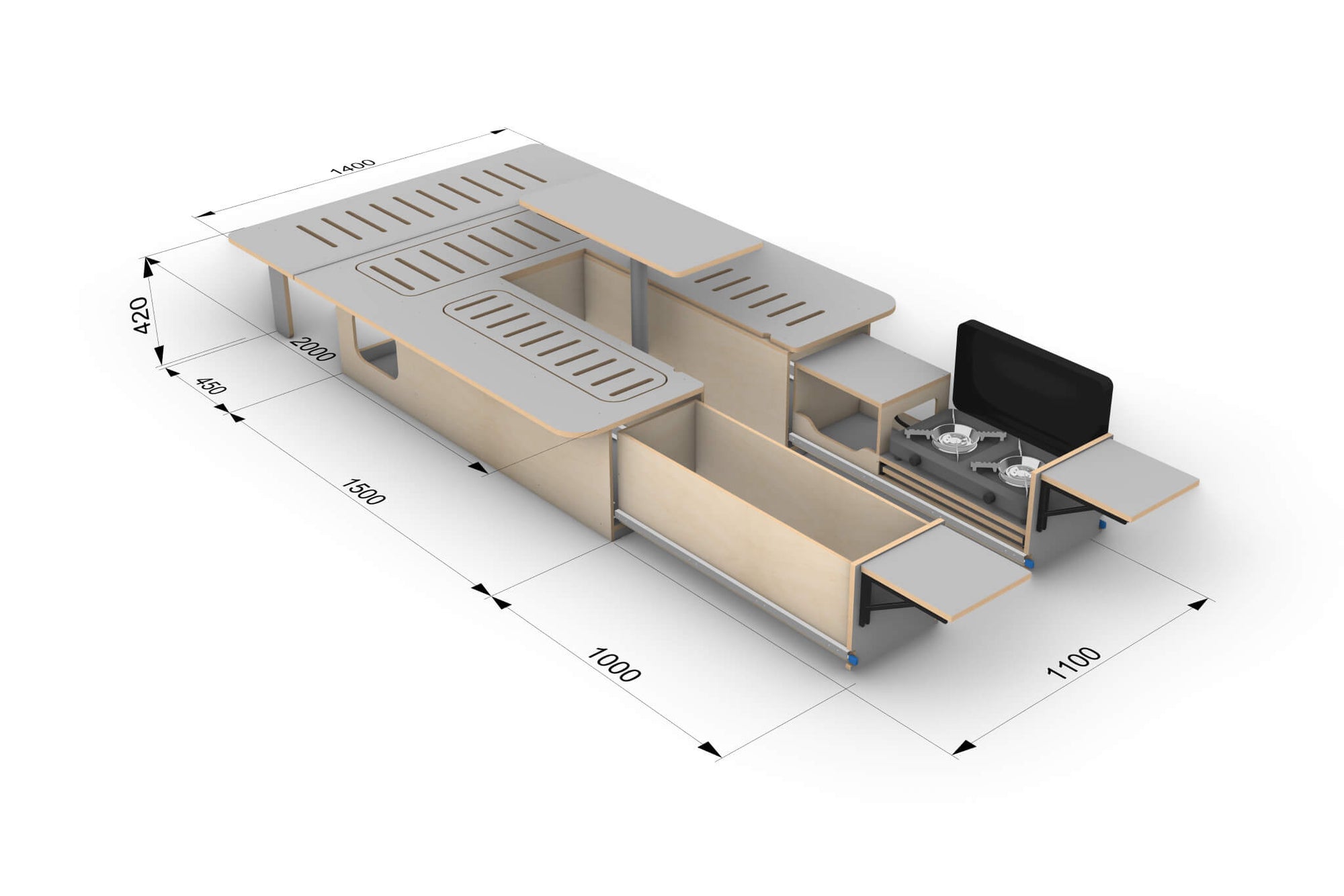

  • Overall footprint of base of unit = 1100mm wide x 1960mm long x 420mm high

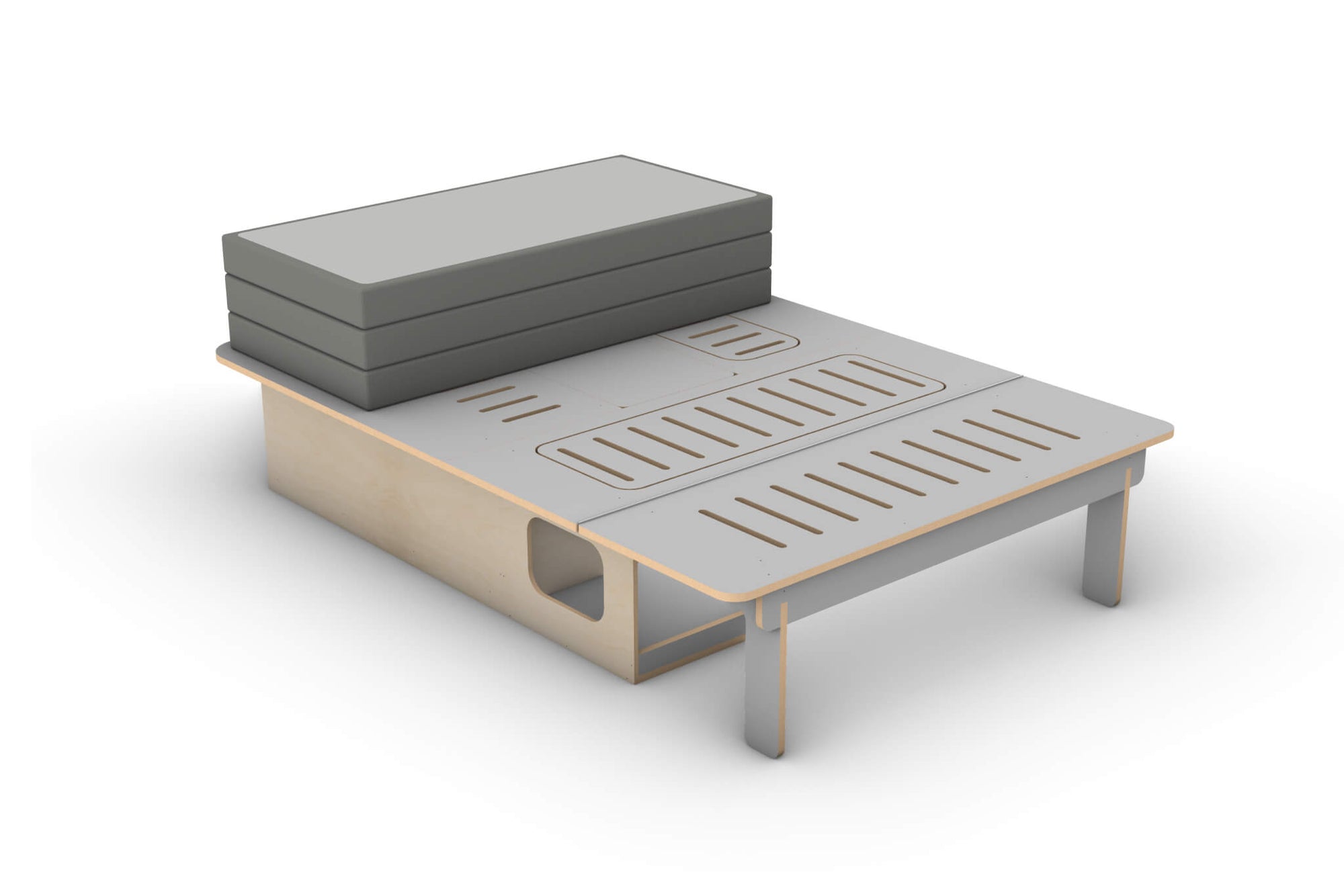

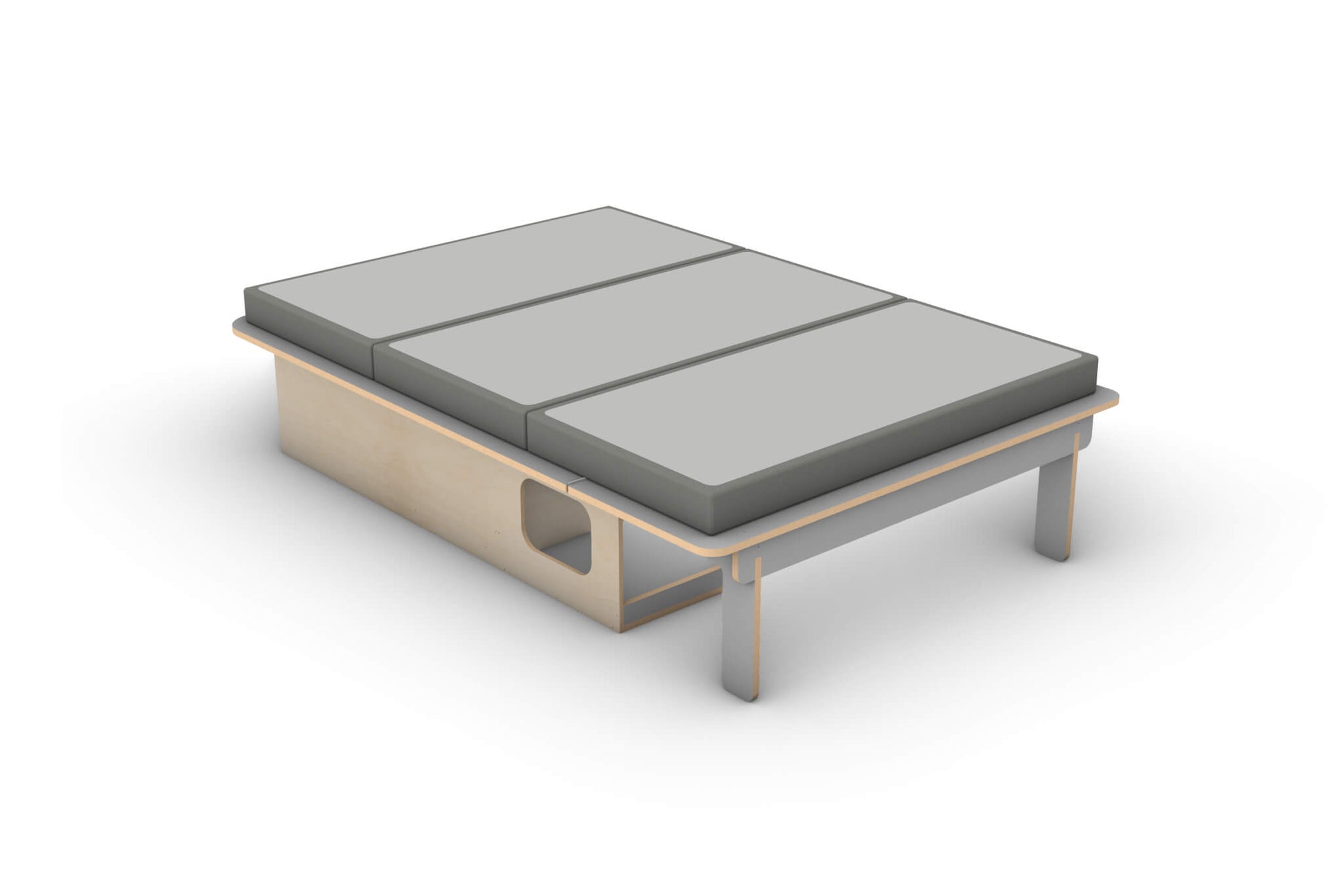

  • Overall footprint of bed base when deployed = 1400mm wide x 2000mm long
  • Drawer runner extension = 1000mm
  • Plywood sheet size = 1220mm x 2440mm
  • CAD model is in STEP. format however I can export most required formats upon request
  • CAD model does not include the Hiace van model as I do not have the rights to share this

Important:

This is a digital download. The product shown is a rendering not a physical product.

All digital plans provided by CamMade Studio are intended for personal use only.

Reviews

  • ★★★★★

    Amazing plans and so easy to read and understand. I have sent the CNC plans off and will look forward to building it soon. Thanks!

    Matthew

  • ★★★★★

    Thanks a lot for these files. Saved me a shit-tonne of work!

    Marcel

  • ★★★★★

    Worked out great and went together so easily! Also great replies and assistance with questions I had.

    Daniel

  • ★★★★★

    Good quality and very helpful for our new camper. Cam is also very helpful and answers very fast.

    Simon

  • ★★★★★

    The quality of the project is very good, well planned and prepared for CNC cutting.

    Władysław

FAQs

Plans are provided in PDF format, ensuring compatibility with most devices and ease of printing. If you require a different format, please contact me to discuss your needs.

I am open to sharing my plans for commercial use, I only ask two things:

  1. That you get in touch and let me know that you plan to use them commercially — I'd love to know more about you, your business and where you are.
  2. You purchase the plans via the online store for each unit that you sell.

Looking forward to hearing from you!

While I don't offer step-by-step support, I'm happy to answer specific questions you may have during your build. Feel free to reach out with your queries.

These plans are best suited for intermediate builders or those with some prior DIY, trade, or construction experience. They’re detailed and thoughtfully laid out, but they do assume a basic understanding of tools, materials, and build processes.

If you're just starting out, you're still welcome to purchase — just know that you may need to do a bit of extra research or enlist help from someone with experience.

All plans are in millimetres (mm). Some plans have also been converted into inches too. The units of measurement a plan comes are stated on each plan. Get in touch if there's a plan you're after not in your preferred units.
